EH-AMS Animal Scale / Stainless Steel Digital Bench Scale / Veterinary Scale / Livestock Scale / Floor Scale

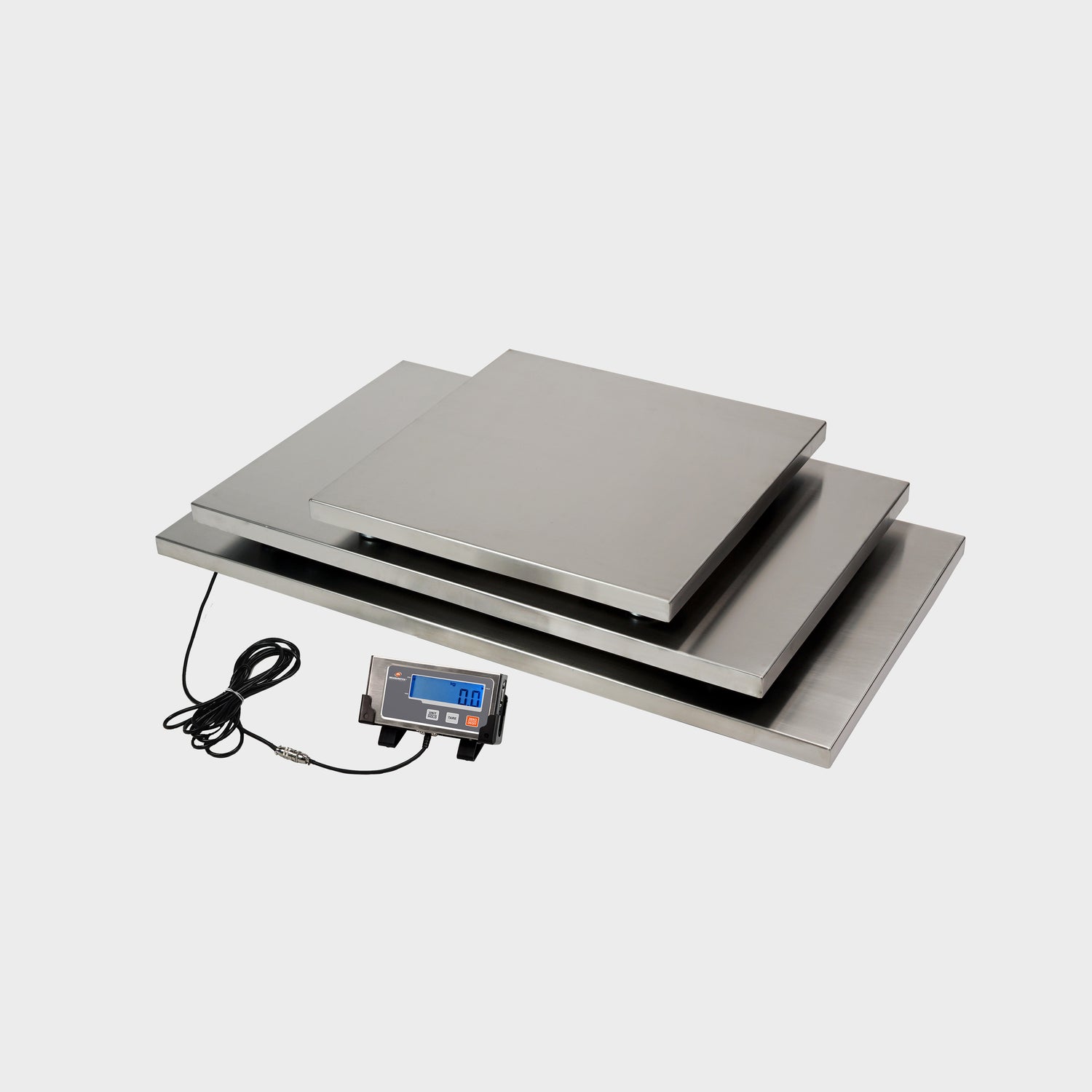

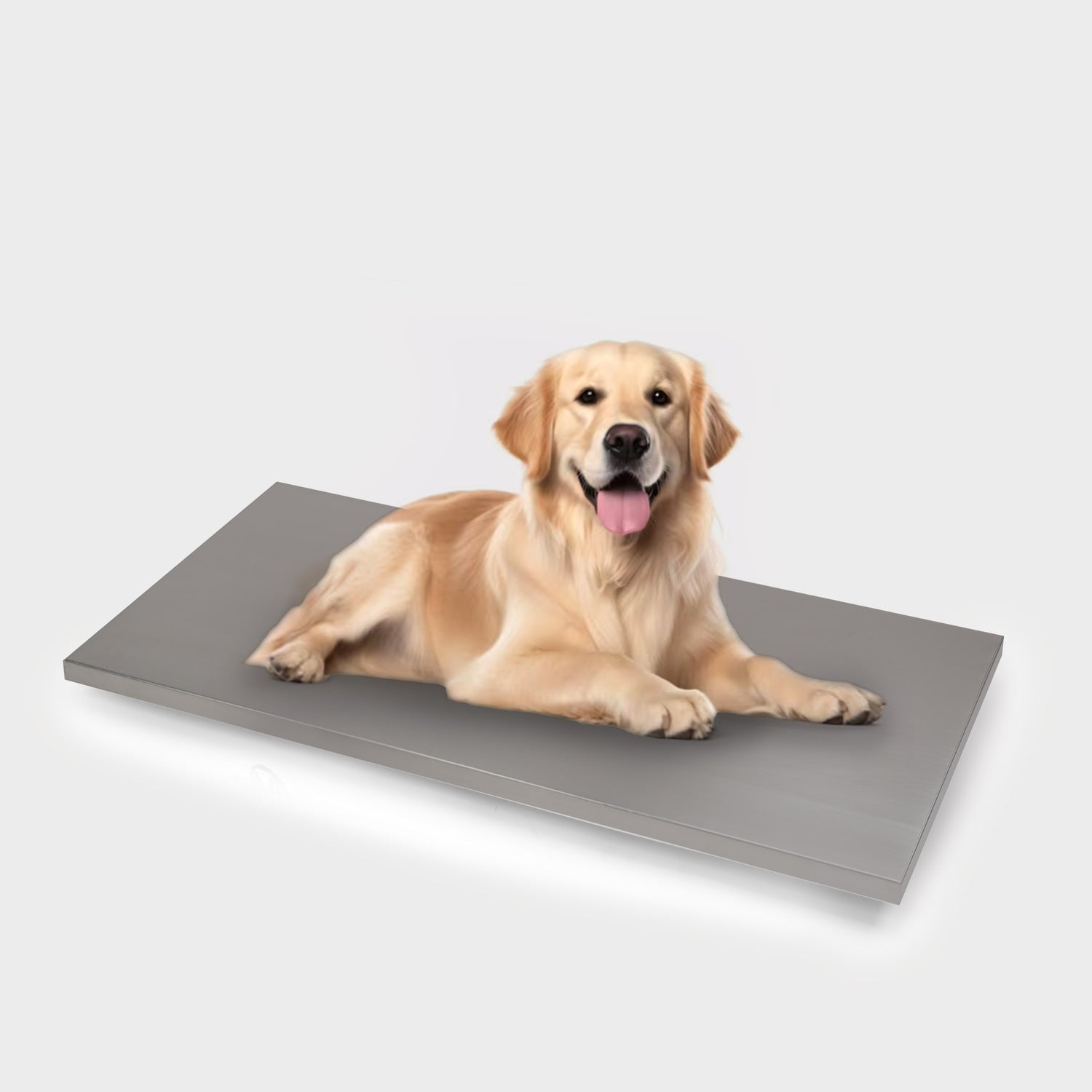

The EH-AMS animal / floor scale is designed with low profile stainless steel platform, strong powder coated steel underframes and high accuracy aluminum load cells, ideal for weighing large pets, animals and goods.


     Features

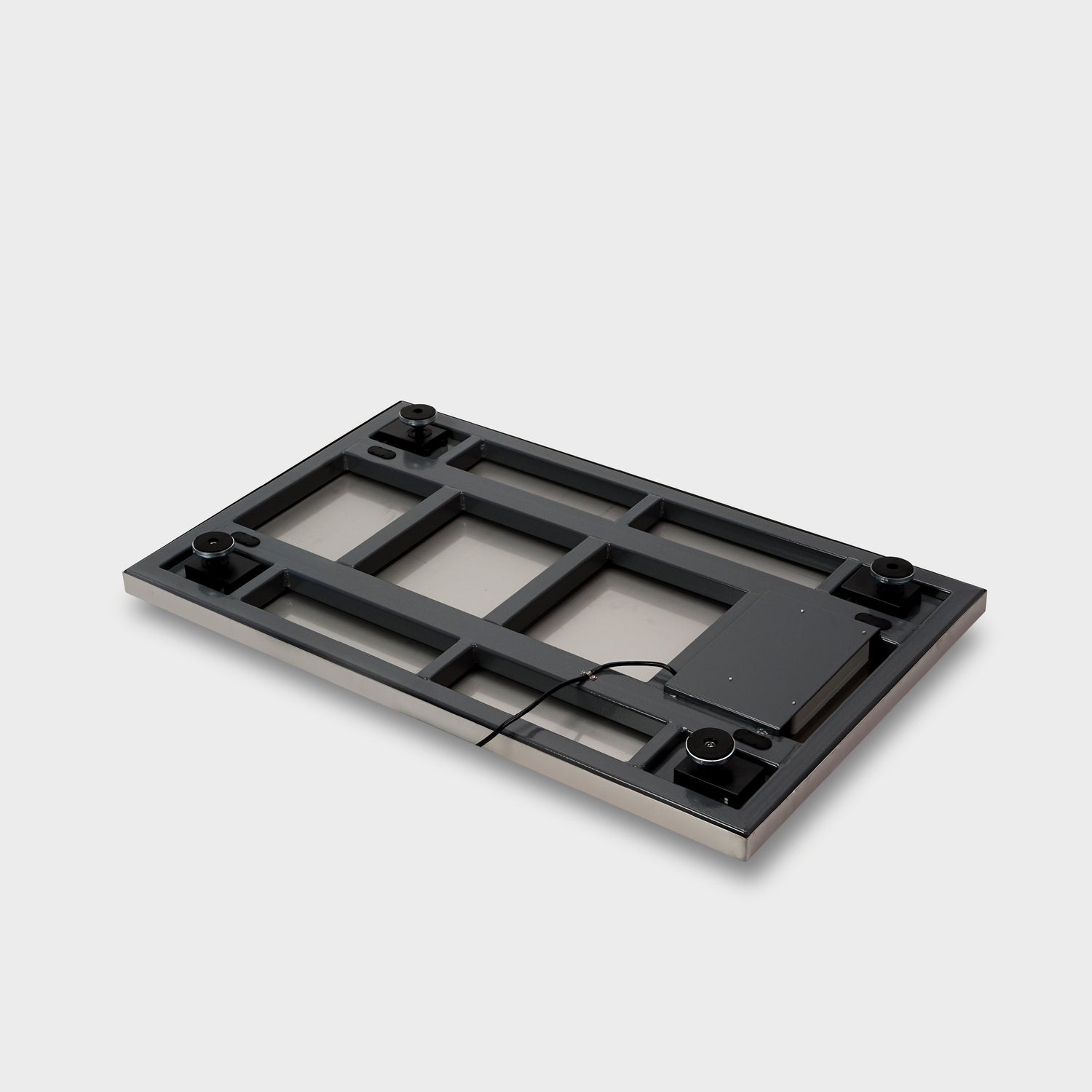

  • Removable stainless steel platform with heavy duty mild steel understructure for durability
  • Low profile platform with 4 aluminum load cells
  • Four adjustable feet ensuring stability
  • Multiple platform sizes available for selection
  • Aluminum housing indicator comes with wall / table mounting bracket
  • Easy-to-read LCD display with white backlight
  • Functions: Weighing, Animal Dynamic Weighing, Check Weighing, Hold, Weight Unit Conversion



     Dimensions



EH-AMS Animal Scale Dimensions


EH-AMS-S EH-AMS-M EH-AMS-L EH-AMS-T
L 366/14.4" 500/19.7" 550/22" 900/36"
W 366/14.4" 400/15.8" 550/22" 550/22"
H 44.7/1.8" 64.2/2.5" 66.2/2.6" 74.2/2.8"
A 260/10.2" 383/15.1" 421.5/16.6" 750.5/29.5"
B 262/10.3" 285/11.2" 421.5/16.6" 401.5/15.8"
C 23.2/0.9" 23.2/0.9" 32/1.3" 32/1.3"

Specifications

  • Capacity / Division
    30 kg x 0.01 kg
    60 kg x 0.02 kg
    150 kg x 0.05 kg
    300 kg x 0.1 kg
    500 kg x 0.2 kg
  • Units of Measure
    kg, lb, lb:oz, g, oz, pcs, %
  • Display
    6 ½ digits 1" (25mm) high, 7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 4 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C ( 14°F to 104°F )
  • Platform Size
    366 x 366 mm /15" x 15"
    400 x 500 mm / 16" x 20"
    550 x 550 mm / 22" x 22"
    550 x 900 mm / 22" x 36"
  • Packing Information
    510 x 510 x 550 mm / 4pcs / ctn
    G.W.: 32 kg N.W.: 24 kg

    640 x 530 x 250 mm / 2pcs / ctn
    G.W.: 19 kg N.W.: 14 kg

    710 x 710 x 290 mm / 2pcs / ctn
    G.W.: 32 kg N.W.: 24 kg

    1040 x 690 x 145 mm / 1pc / ctn
    G.W.: 22 kg N.W.: 19 kg
  • Options
    RS232 cable, USB cable, Rubber mat,
    Indicator floor stand, Cage
