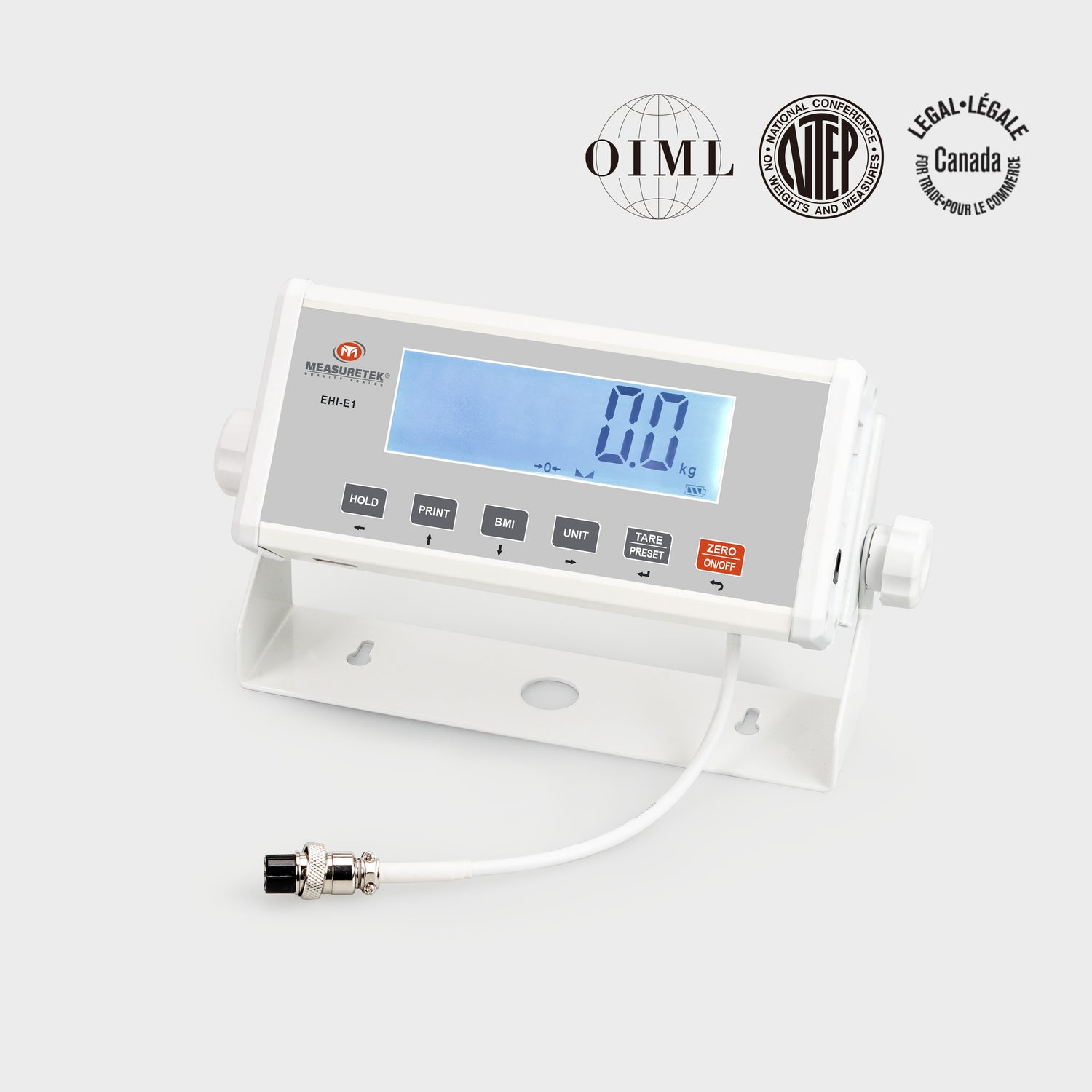

EHI-E1 NTEP & OIML Certified Weighing Indicator / Multi-Function Scale Controller for Medical Use


The most versatile and functional indicator EHI-E1 is NTEP, MC and OIML approved and is certified at 5,000 divisions. It’s particularly programmed in two versions – Industrial version and Medical version, compatible with many scales in a wide range of applications, such as medical, industrial, shipping, warehouse and livestock use.


     Features



  • Rugged aluminum housing, with a wall mounting and desk mounting metal bracket
  • Easy-to-read LCD display with white back light
  • Easy-to-use eight keys: ZERO/ON/OFF, TARE/PRESET, UNIT/DATA, ACC/TOTAL, PRINT/HOLD, SETUP
  • Equipped with RS232 and USB interfaces for linking to a PC or printer
  • Functions: Weighing, Counting, Check Weighing, Percent Weighing, Accumulation, BMI, Weight Unit Conversion, Pre-Tare, Tare, Hold, GEO CAL, Auto-Off



     Dimensions



EHI-E1 Weighing Indicator Dimensions - 206 x 92.5 x 43.5 mm

Specifications

  • Loadcell Capability
    4 @ 350ohm
  • Excitation voltage
    5V DC
  • Wiring
    7 wires, 20cm pigtail cable
  • Units of Measure
    kg, lb, lb:oz, g, oz, pcs, %
  • Display
    6 ½ digits 1" (25mm) high,
    7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 4 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C (14°F to 104°F)
  • Packing Information
    580 x 510 x 310 mm / 10 pcs / ctn
    G.W.: 16 kg N.W.: 12 kg
  • Approvals
    OIML, NTEP, MC, CE
  • Options
    RS232 cable, USB cable, AC adpater
