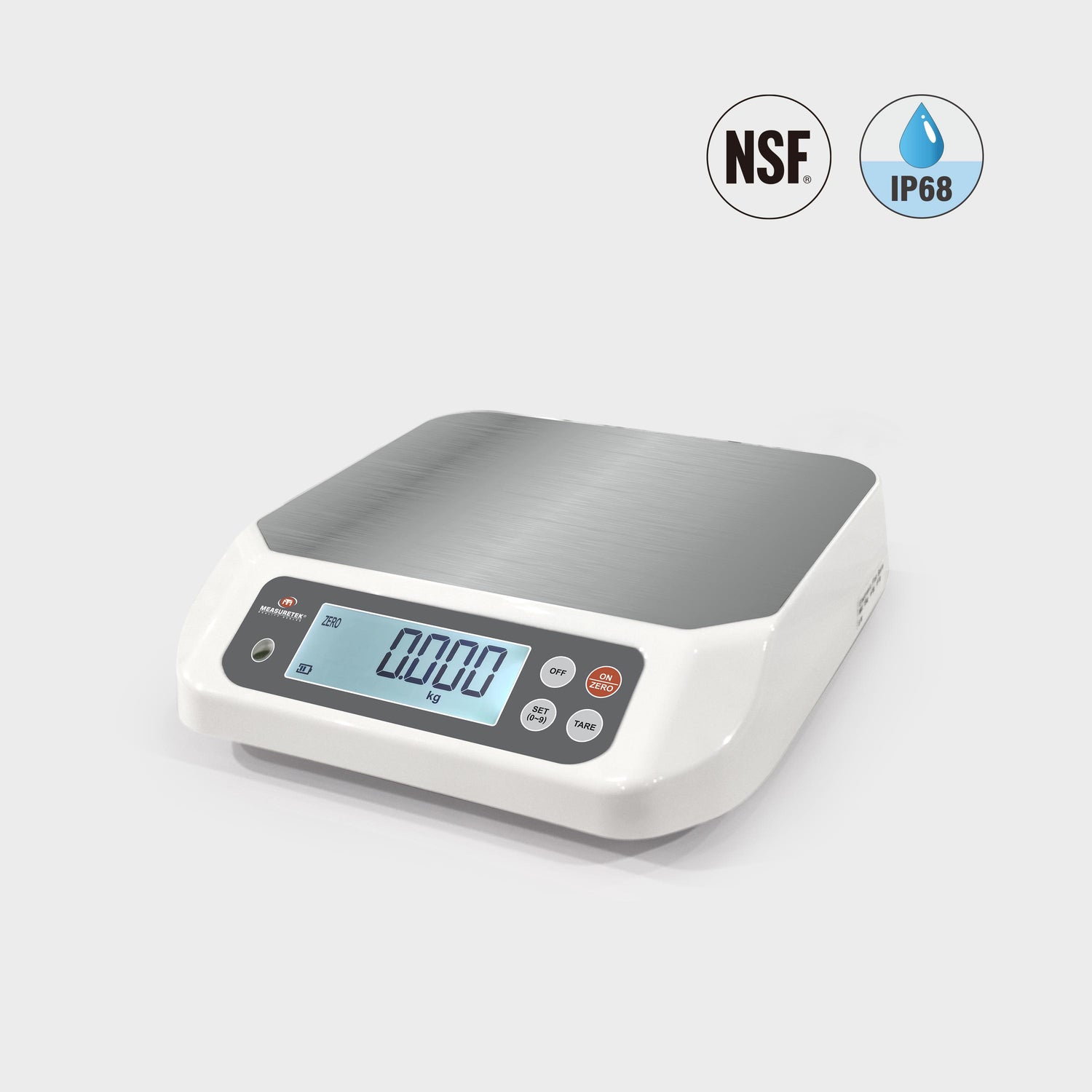

EH-FWS IP68 Waterproof Scales / NSF Approved Washdown Scales / Check-weighing Scales / One-piece Design

The EH-EWS / FWS innovative IP68 waterproof scale features a revolutionary one-piece design that seamlessly integrates the upper shell and weighing surface. This cutting-edge design provides superior protection against water, dust, and foreign particles infiltrating the scale body. The food grade stainless steel weighing surface offers a safe weighing experience in the aquatic products sector, food processing industry, hospital and clinics.



     Features

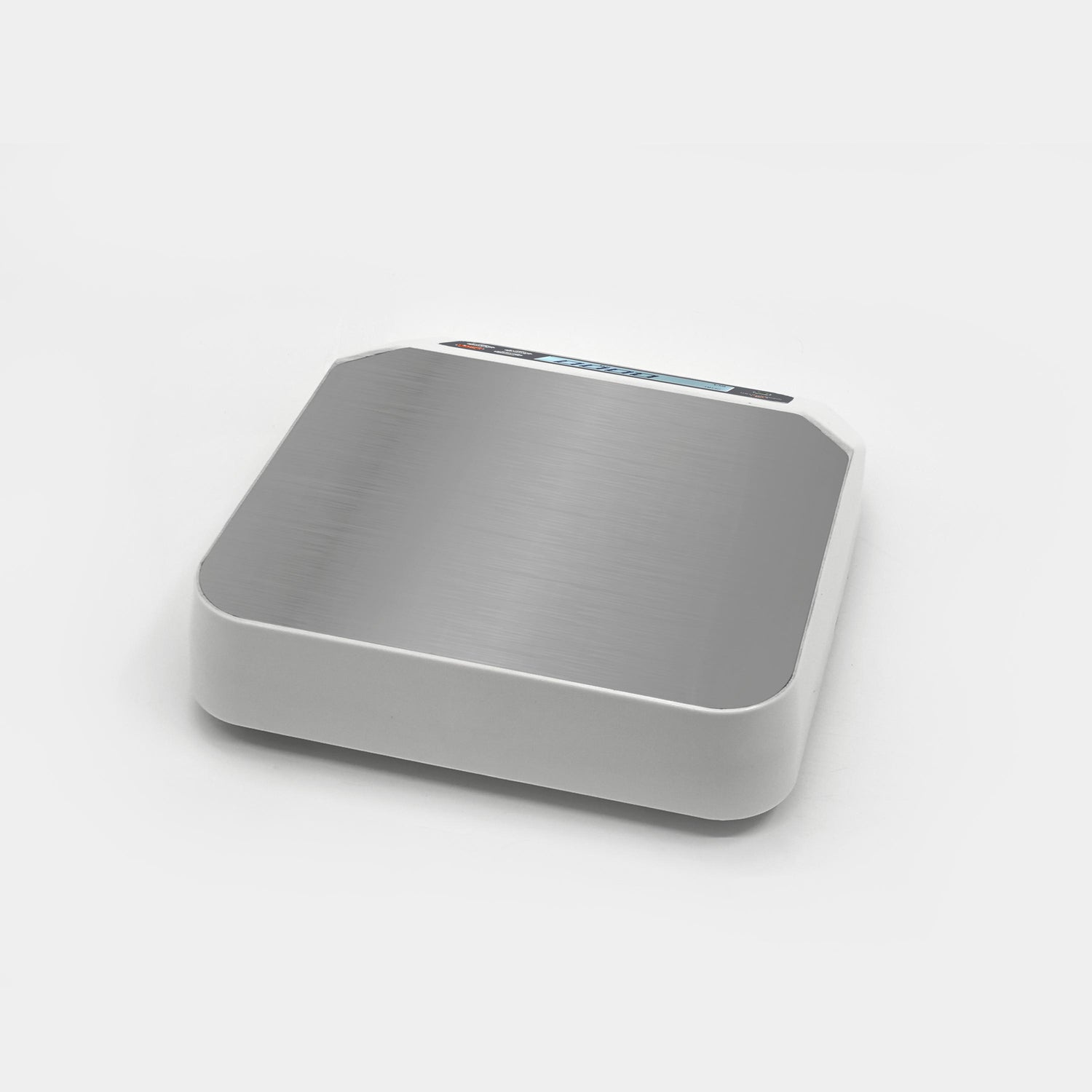

  • Innovative Structural Design: The integrated upper shell design features a seamless construction, preventing water and dirt from entering the scale from the top or the sides of the scale.
  • IP68 Protection: Designed at IP68 water ingress protection. The PCB is independently ultrasonic welding sealed to protect from water and designed with waterproof plugs from load cell and power supply for convenient maintenance.
  • Functions: Weighing, Check Weighing, Parts Counting, Four-level of backlight adjustment, Key audio On/Off, Hold, Division setting.



     Dimensions



EH-FWS Washdown Scale Dimensions - 274 x 288 x 71 mm

Specifications
  • Capacity / Division
    6 kg x 2 g / 12 lb x 0.005 lb
    15 kg x 5 g / 30 lb x 0.01 lb
  • Units of Measure
    kg, g, lb, oz
  • Display
    6 ½ digits, 1" (25mm) high LCD display with white backlight
  • Power Supply
    Built-in 5V 1A adapter and
    4V 4Ah lead-acid rechargeable battery
  • Operating Temp
    -10°C to 40°C ( 14°F to 104°F )
  • Platform Size
    255 x 212 mm / 10.0" x 8.35"
  • Approvals
    NSF, IP68, FDA, CE

Product Details

  • Stainless steel load cell - Strong corrosion resistance & impact-proof, minimizes overload damage
    • The strong corrosion resistance and mechanical strength of stainless steel load cell, enable the scale to withstand pressure and external shocks, reducing the risk of damage from overload or impact.

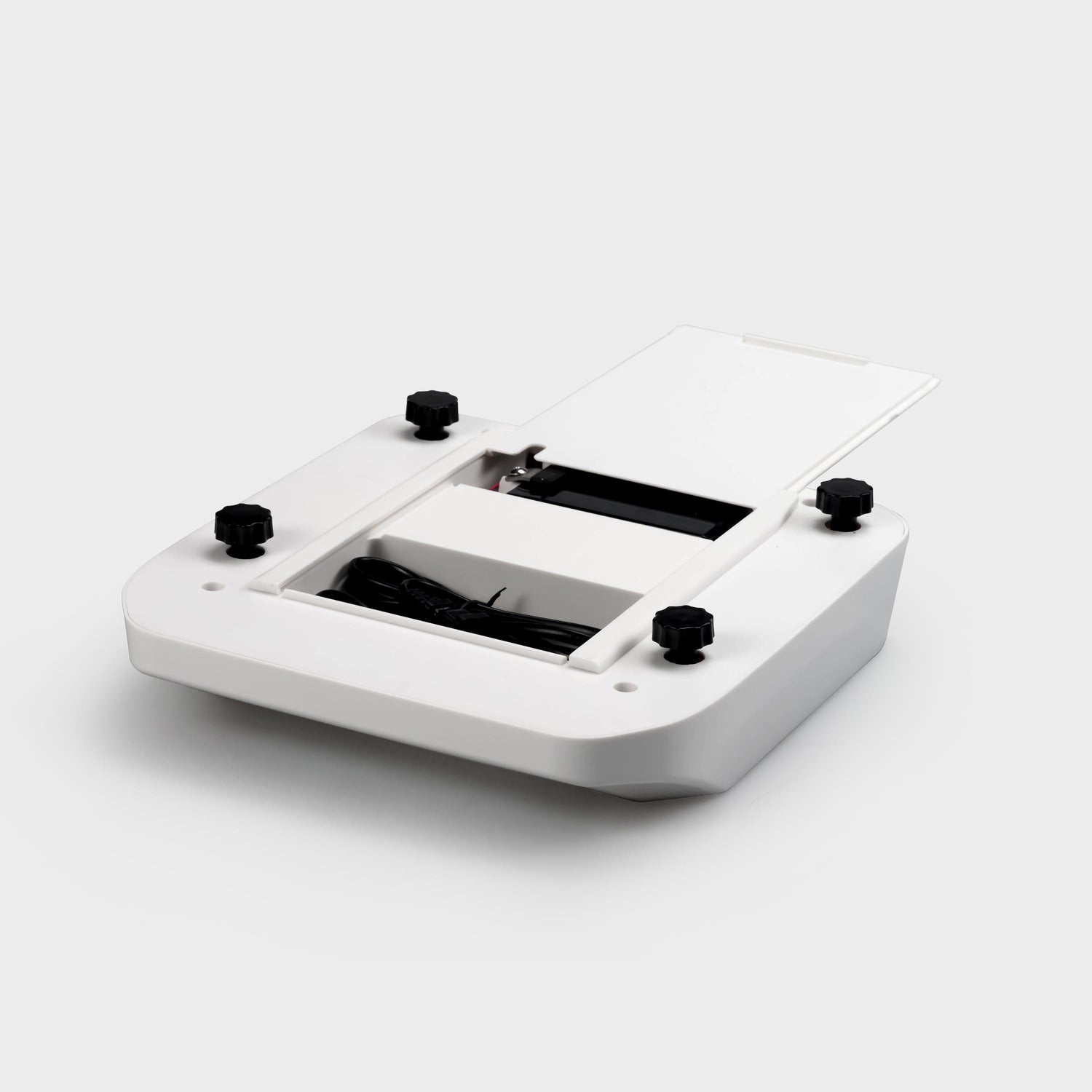

  • The PCB is designed with waterproof plugs from load cell and power supply for convenient maintenance.
    • The PCB is designed with waterproof plugs from load cell and power supply for convenient maintenance.
  • Strong internal structure - Enhanced durability & stability / Easy to clean up the water
    • The clean and strong internal structure enables durability and stability of the scale, and convenience for cleaning up the water.
