EHC-CH Counting Scales / Weight Scale / Scales for Parts, Coins and Pieces

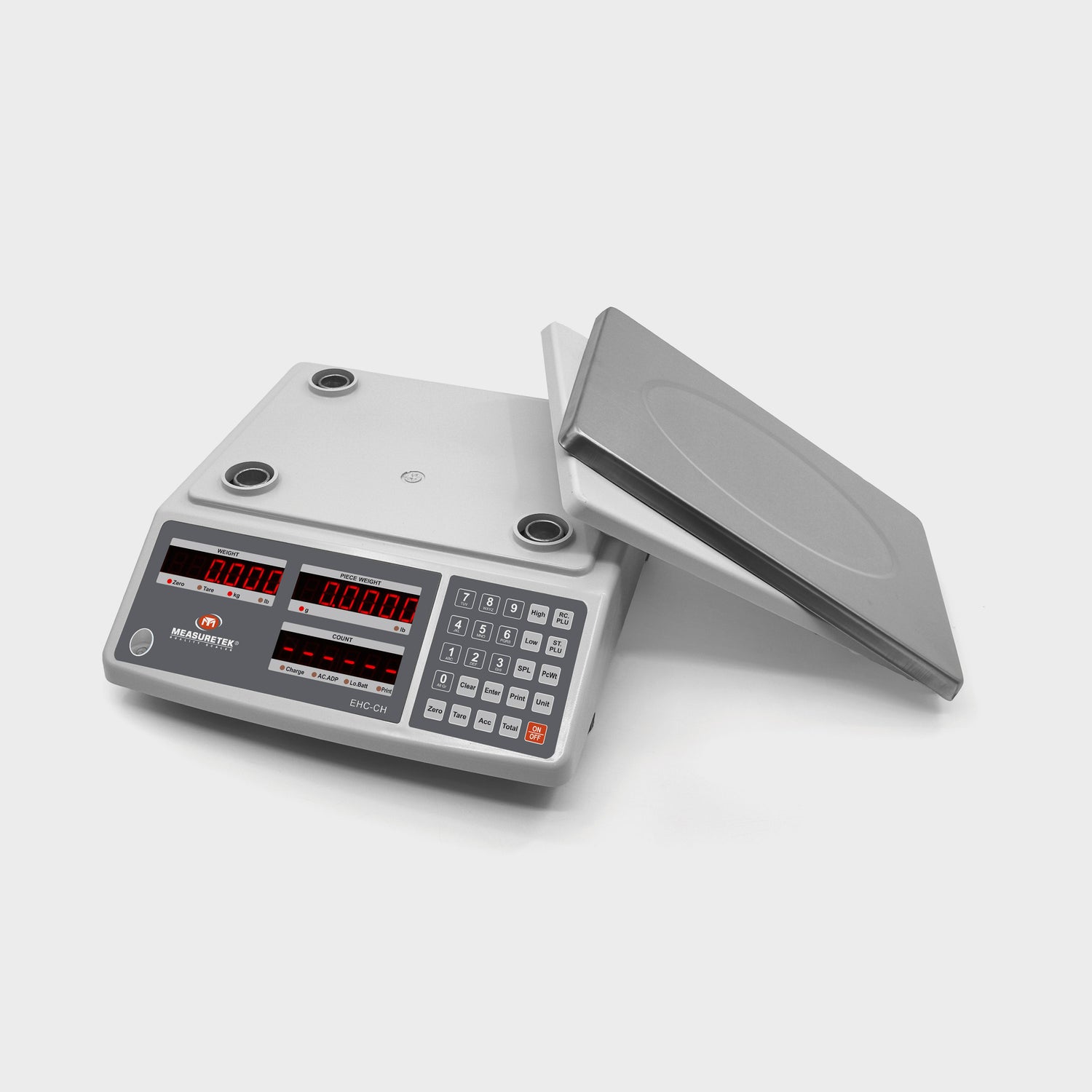

The EHC-CH counting scale is designed with high accuracy and bright LED or backlit LCD displays for weighing a variety of components in industrial warehouse environments. Housed in durable ABS enclosure and a removable stainless steel platter, it facilitates effortless cleaning. The built-in carry handle and rechargeable battery makes it portable and perfect for mounting on a mobile cart or for use in areas where power is limited.


     Features

  • Hosted in robust ABS enclosure and removable stainless steel platter
  • Heavy-duty cast aluminum load cell bracket ensuring secure and reliable loading
  • LCD/LED displays to simultaneously show unit weight, count and total weight
  • Offers up to 250 conveniently accessible Product Look-Up (PLU) for rapid reference and efficient operation
  • Equipped with standard RS232 & USB serial ports, enabling seamless connectivity with label printers or PCs for enhanced data management and printing capabilities
  • Equipped with adjustable feet and leveling bubble for quick setup and stability
  • Functions: Weighing, Counting, Weight Unit Conversion, Upper and Lower Count Limits, Accumulation, Pre-Tare, Tare, 250 memories saves piece weight



     Dimensions



Specifications

  • Capacity / Division
    3 kg x 0.1 g / 6 lb x 0.0002 lb
    6 kg x 0.2 g / 12 lb x 0.0005 lb
    15 kg x 0.5 g / 30 lb x 0.001 lb
    30 kg x 1 g / 60 lb x 0.002 lb
  • Units of Measure
    kg, g, lb
  • Display
    3 windows, 6 digits, 0.56" (14.2mm) high, 7 segments LCD display with backlight
  • Power Supply
    12V 500mA adapter with internal positive or 6V 4Ah lead-acid rechargeable battery
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C (14°F to 104°F)
  • Platform Size
    290 x 218 mm / 11.42" x 8.58"
  • Packing Information
    730 x 410 x 380 mm / 4pcs / ctn
    G.W.: 20.3 kg N.W.: 18 kg
  • Options
    RS232 cable, USB cable
