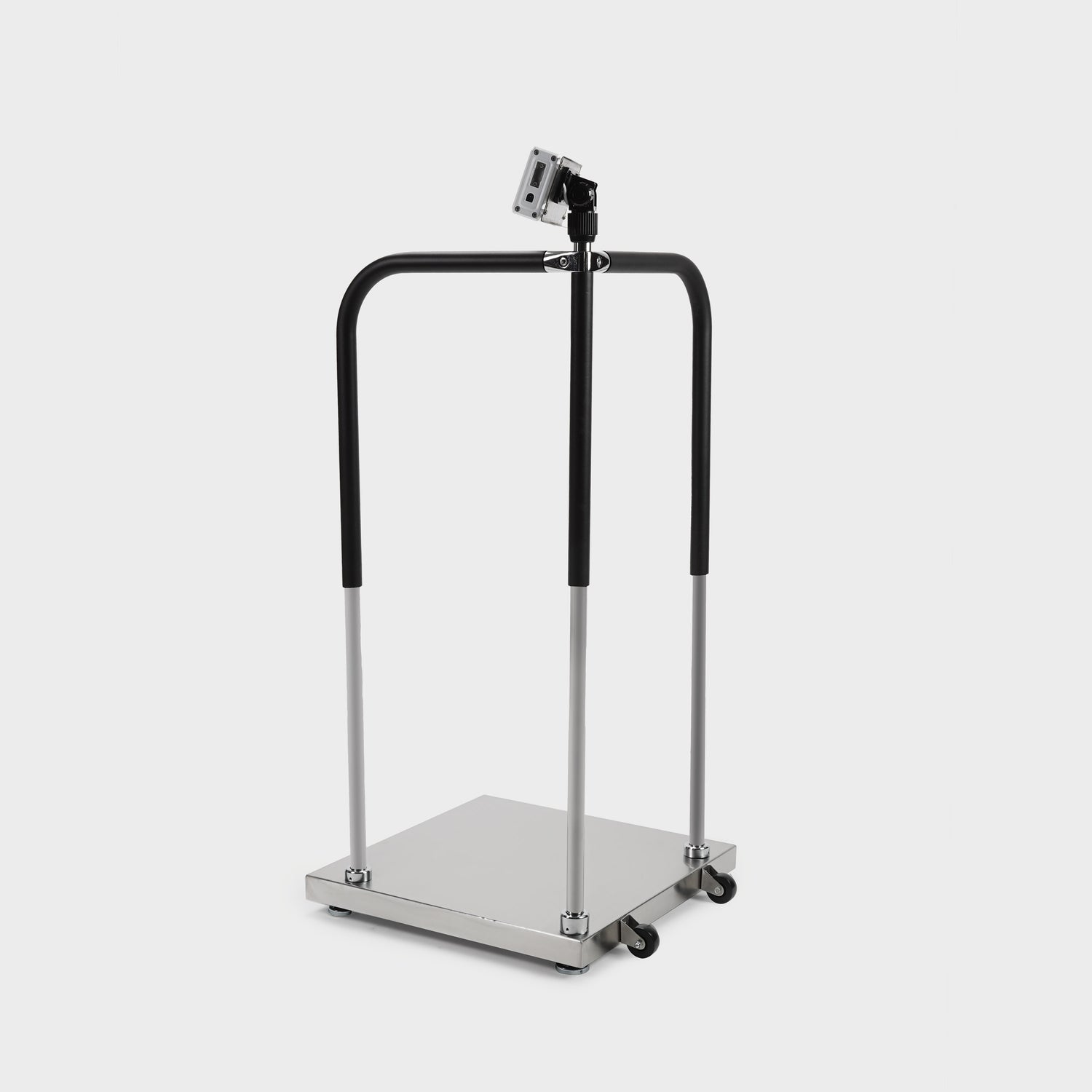

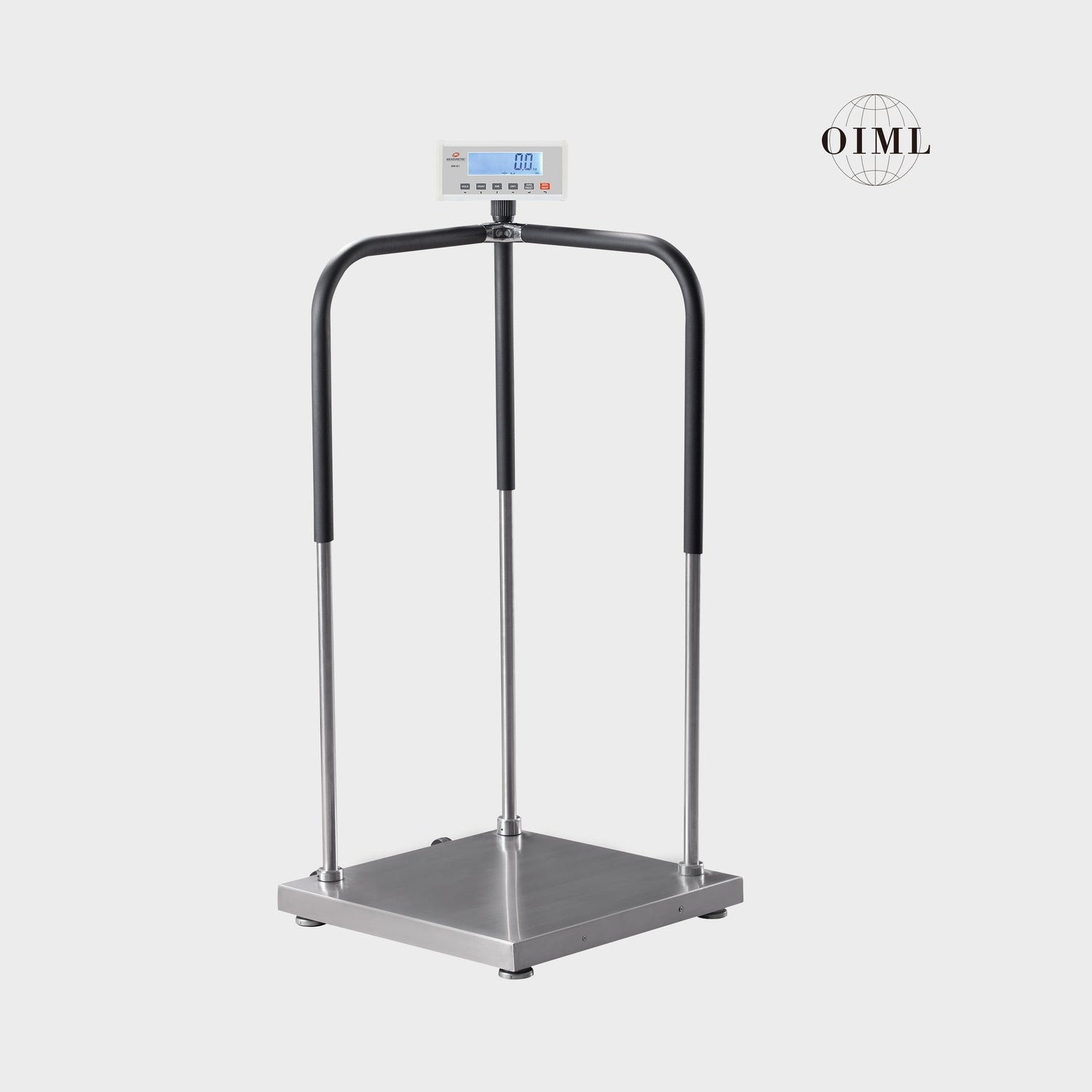

EH-MS OIML Approved Handrail Scale / Handicap / Assisted Medical Scale / Physical Scale

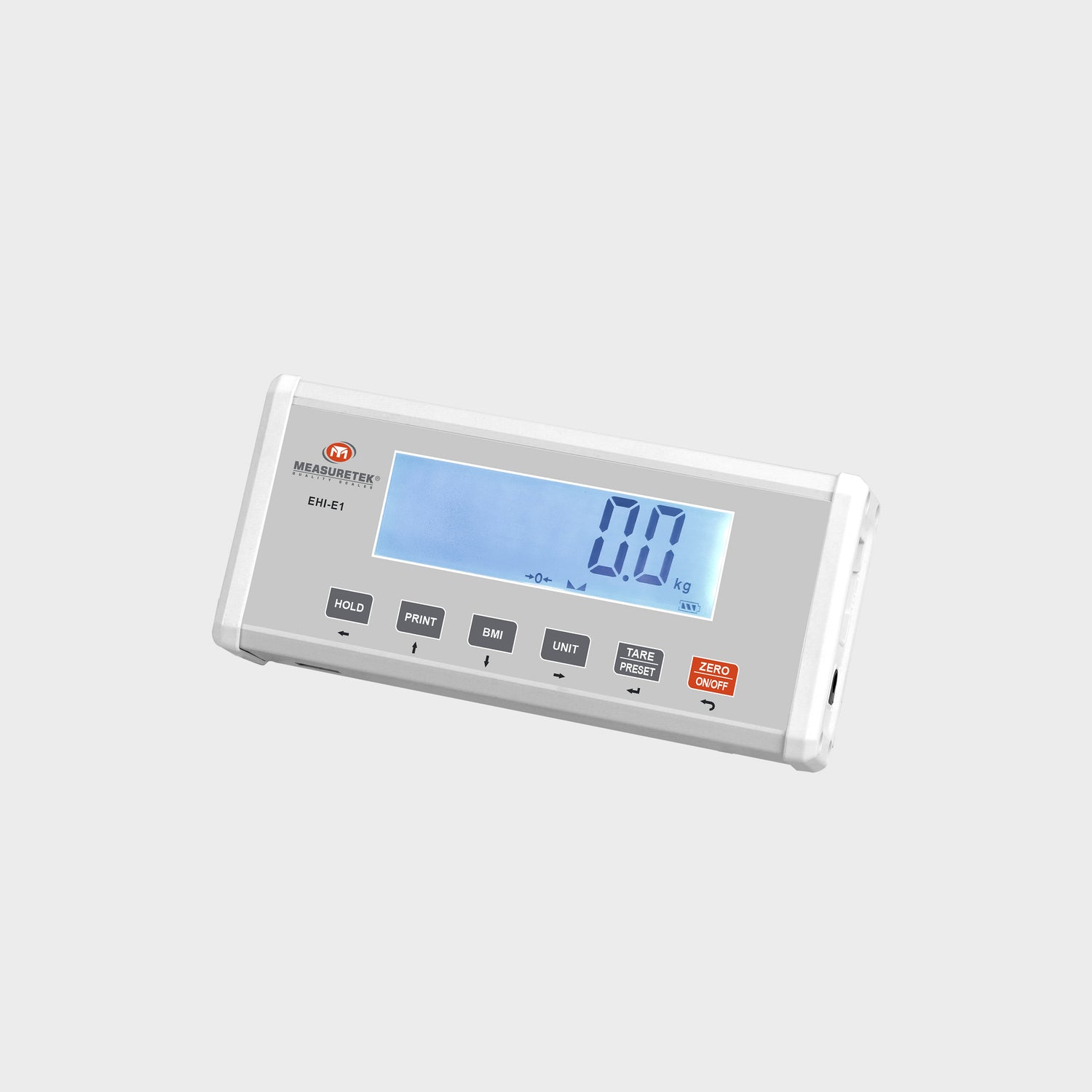

The EH-MS digital handrail scale is FDA registered and OIML approved and is designed to be used in hospitals, clinics, doctor’s offices, gyms, and even domestic use. It features with a low-profile steel platform and integral wheels for easy transportation. The aluminum housing indicator provides functions like BMI calculation, Tare, Hold, GEO calculation and data transmission. It is reliable in various circumstances and a great choice for a cost-eective product.



     Features



  • Low profile heavy-duty stainless steel or powder coated steel platform provides patient assurance while weighing
  • Stable stainless steel or powder coated steel handrail provides safety support to patients
  • Easy-to-see 1” LCD display with backlight
  • Equipped with RS232 and USB interfaces
  • Adjustable feet with silicon pad for quick levelling and anti-skidding
  • Transport castors included for easy mobility
  • Functions: Weighing, BMI calculations, Weight Unit Conversion, Tare, Hold, GEO CAL



     Dimensions



EH-MS Handrail Scale Dimensions - 550 x 550 x 1200 mm

Specifications

  • Capacity / Division
    300 kg x 0.1 kg / 660 lb x 0.2 lb
  • Units of Measure
    kg, lb, lb:oz
  • Display
    6 digits, 1" (25mm) high, 7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 4 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C (14°F to 104°F)
  • Platform Size
    Mild steel version:
    550 x 550 mm / 21.5" x 21.5"

    Stainless steel version:
    520 x 520 mm / 20.5" x 20.5"
  • Packing Information
    1175 x 615 x 155 mm / 1pc / ctn
    G.W.: 24.5kg N.W.: 22kg
  • Approvals
    FDA, OIML, CE
  • Options
    RS232 cable, USB cable
