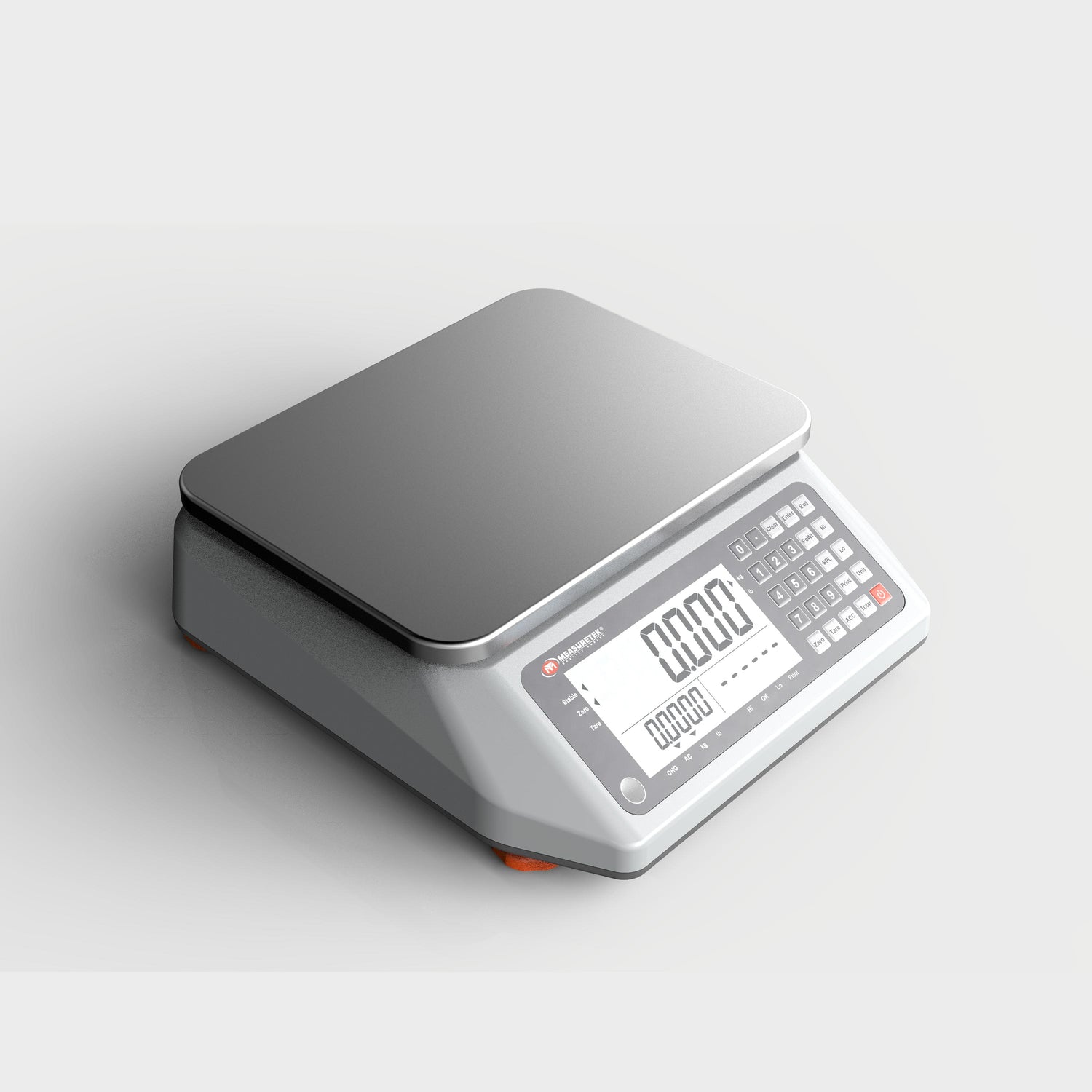

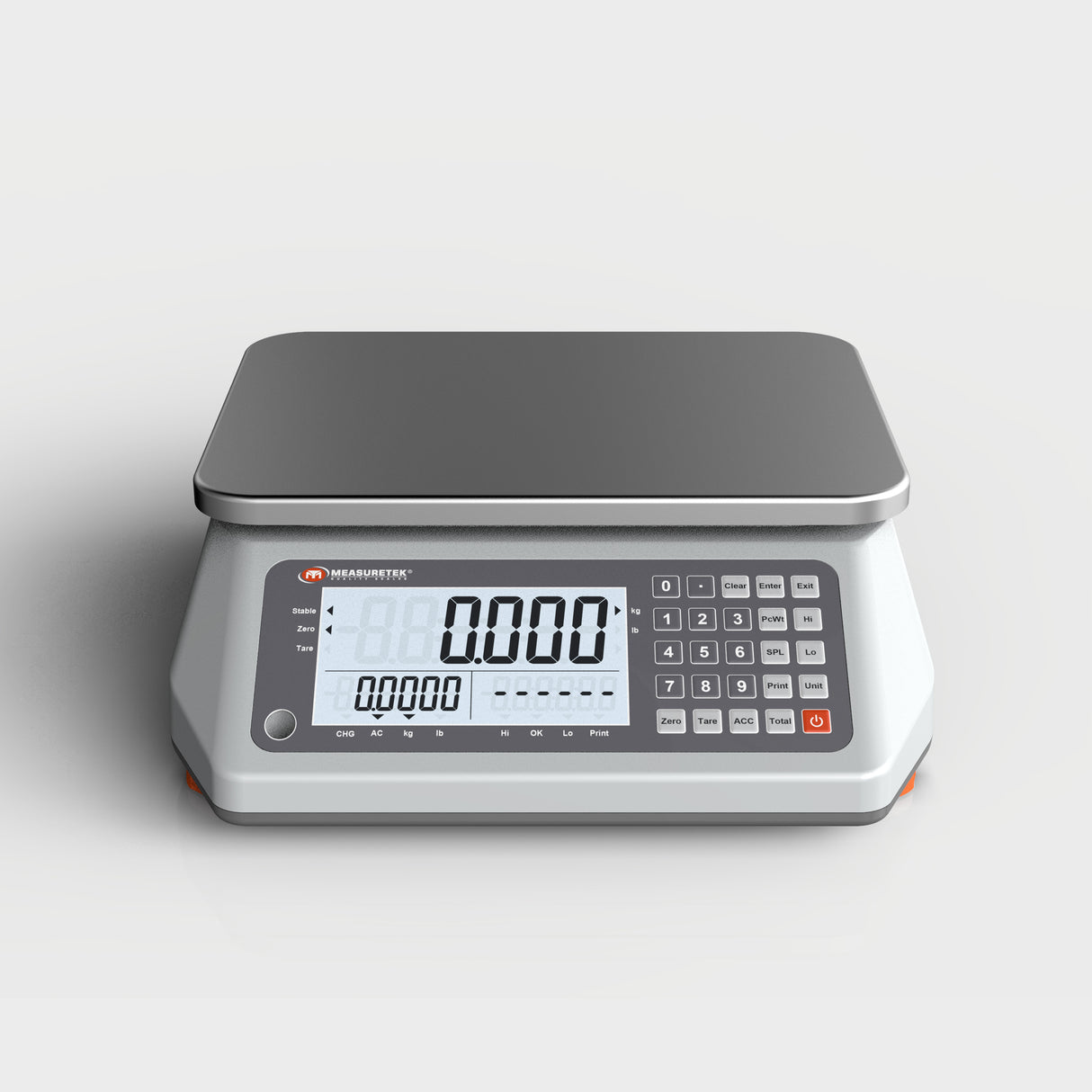

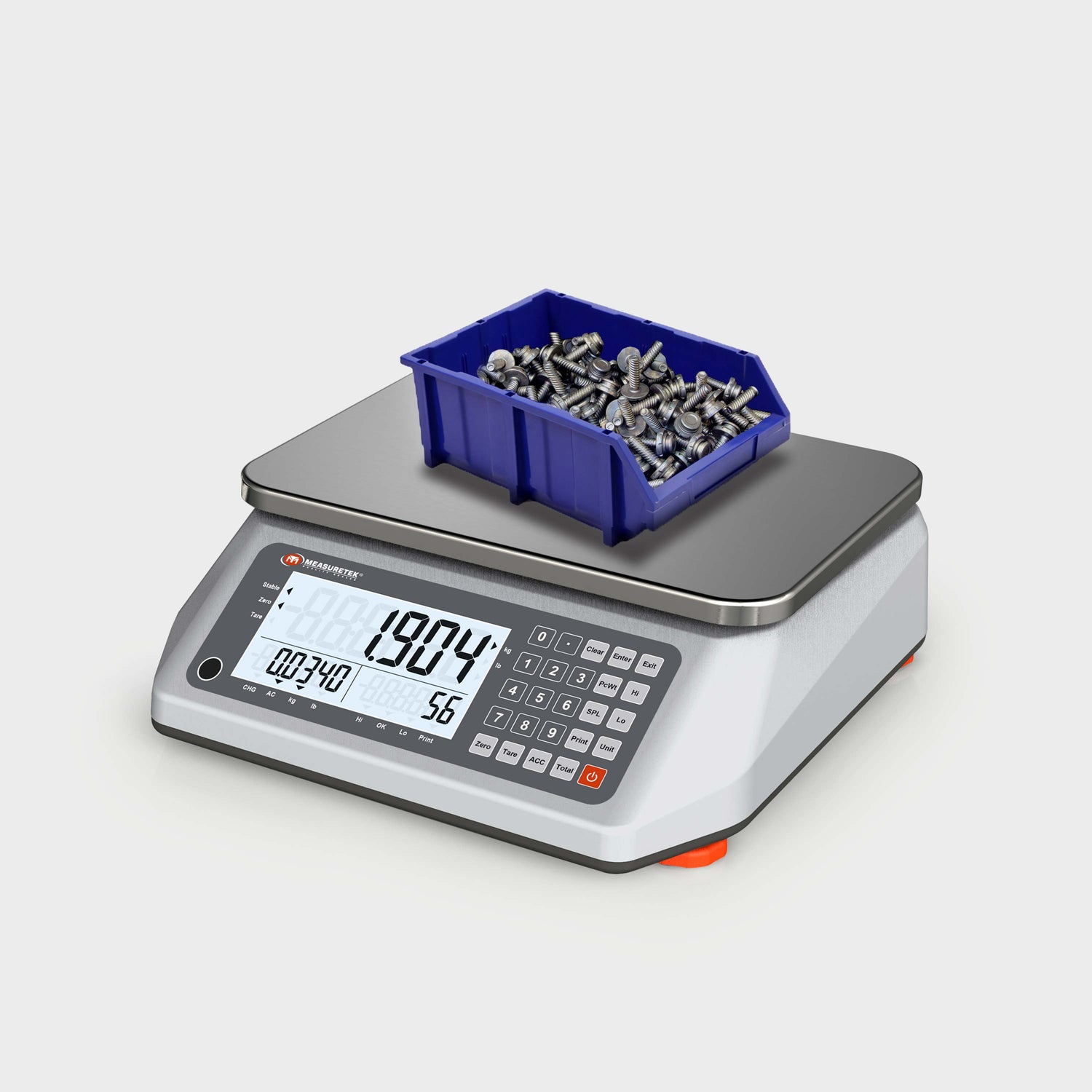

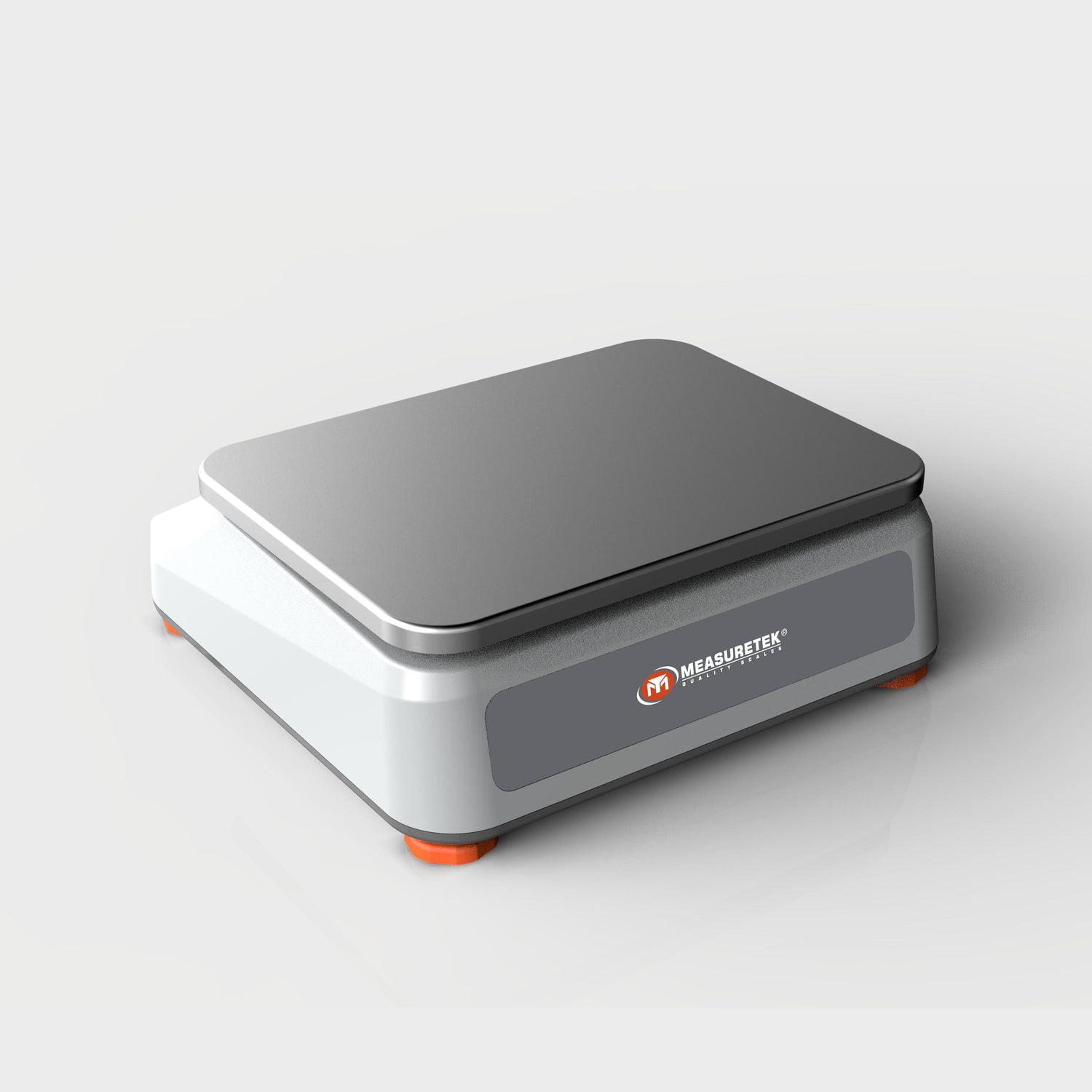

EHC-CB Counting Scale / Piece Counting Bench Scale


The EHC-CB counting scale features with a large backlit LCD display to show piece weight, total weight and quantity simultaneously, makes counting a breeze and perfect for weighing a variety of components in industrial warehouse environments.



     Features

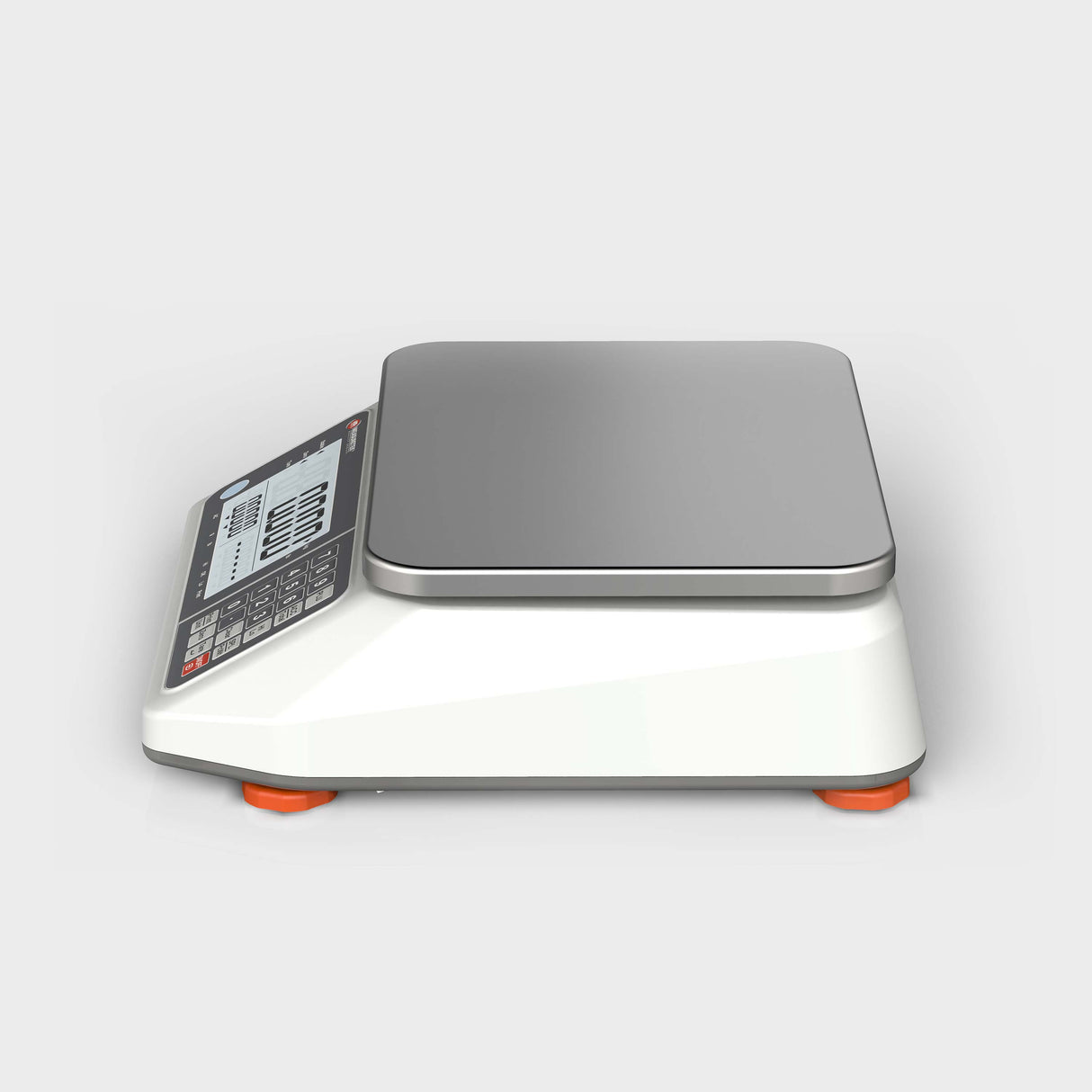

  • Sturdy ABS plastic housing and removable stainless steel weighing platter for convenient cleaning

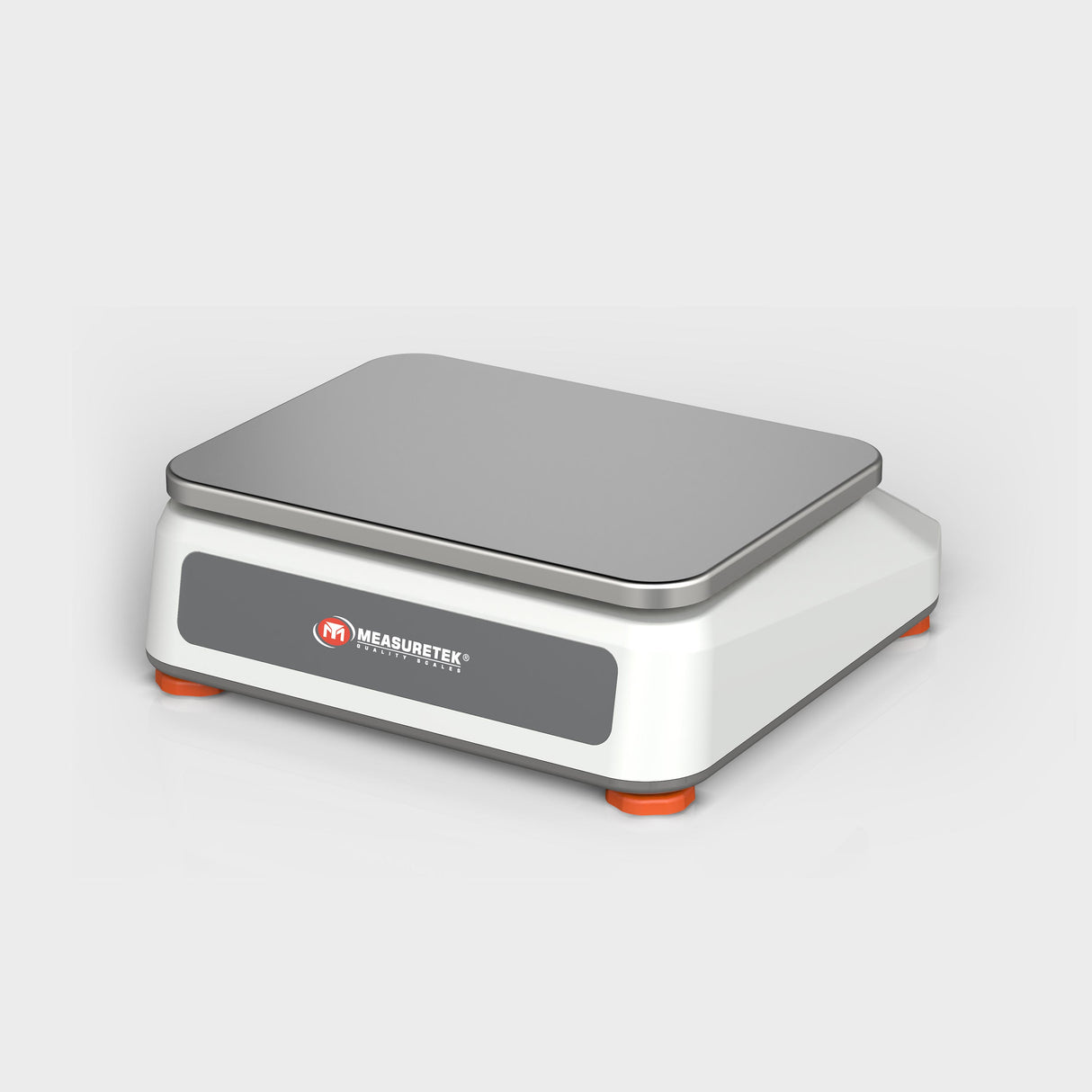

  • Strong internal structure, cast aluminum load cell bracket, and two-layer weighing platters that are strong to afford heavy loads

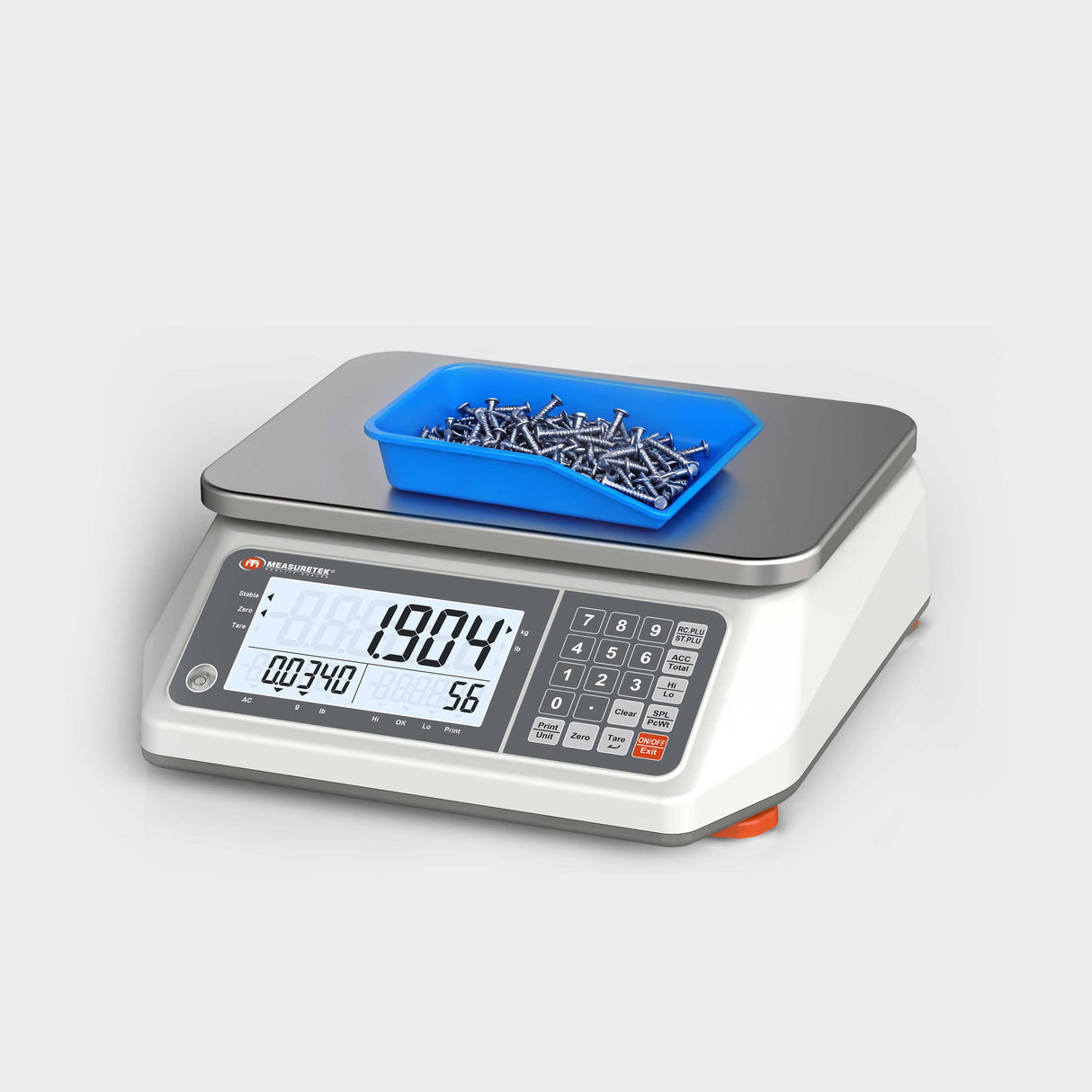

  • Large LCD display with backlight, displays piece weight, total weight and quantity simultaneously for easy reading
  • Up to 250 PLUs for quick reference
  • Adjustable feet and leveling bubble ensure stability of the scale and guarantee an accurate weighing
  • Functions: Weighing, Counting, Upper and Lower Count Limit, Accumulation, Weight Unit Conversion, Pre-Tare, Tare



     Dimensions



Specifications

  • Capacity / Division
    3kg x 0.2g / 6lb x 0.0005lb
    6kg x 0.5g / 12lb x 0.001lb
    15kg x 1g / 30lb x 0.002lb
    30kg x 2g / 60lb x 0.005lb
  • Units of Measure
    kg, g, lb, oz
  • Display
    120x64mm LCD display with white backlight
  • Power Supply
    9V 600mA adapter or
    4 x C cell dry batteries
  • Communication
    Optional RS232 or USB
  • Platform Size
    295 x 220 mm / 11.61" x 8.66"
  • Packing Information
    750 x 410 x 390 mm / 4ps /ctn
    G.W.: 22kg N.W.: 20kg
  • Options
    RS232 cable, USB cable
