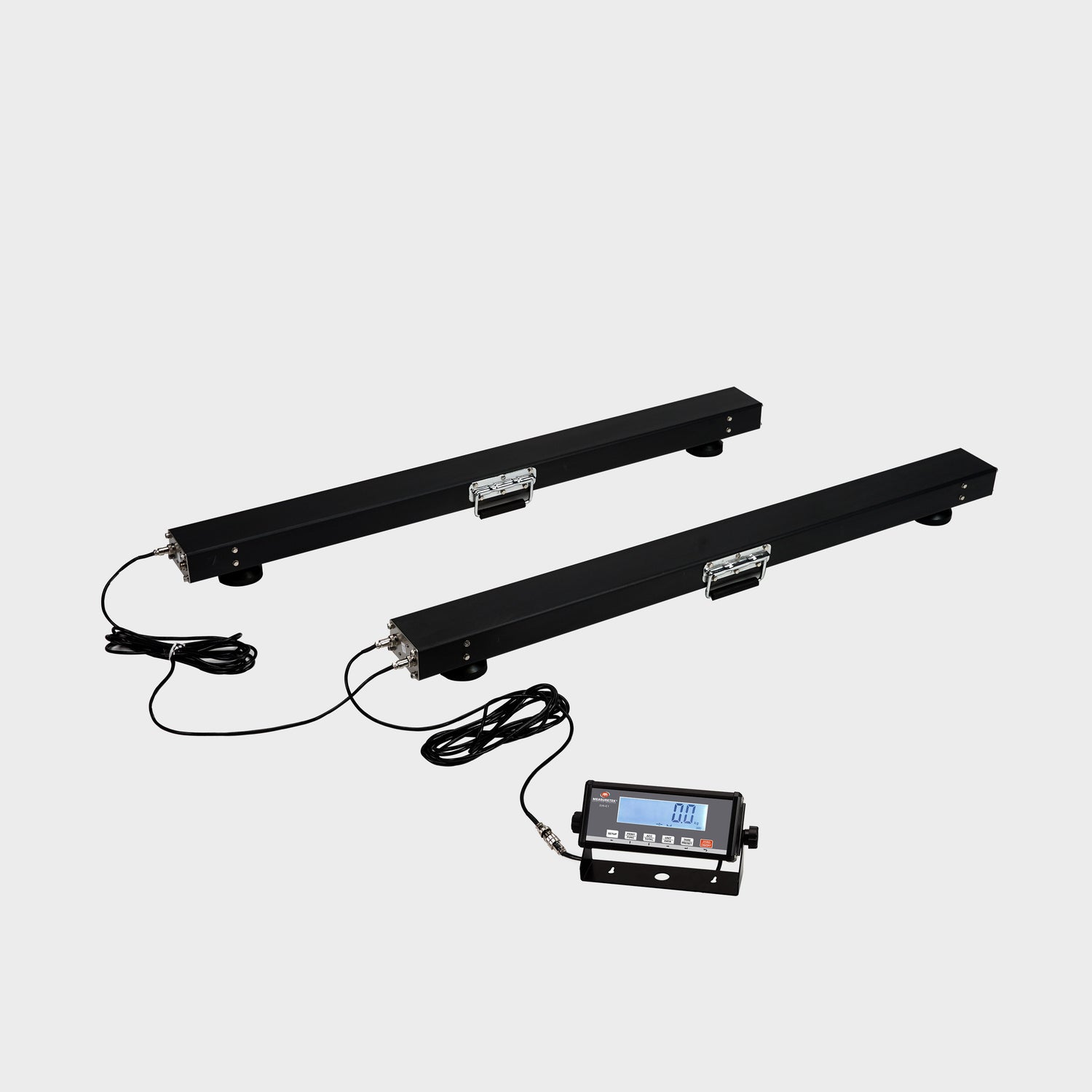

EH-WB Heavy-Duty Weigh Beam / Industrial Floor Scale / Adjustable Pallet Scale / Built-in Carry Handles


The EH-WB heavy-duty weigh beam is engineered with powder-coated steel construction deliver unmatched strength for heavy-duty industrial applications. Freely adjustable distance between two weigh beams to accommodate various pallet and cargo dimensions. The built-in carry handles bring easy portability, the 15 feet (4.65 meter) cables allow for remote display.


     Features



  • Robust powder coated mild steel beams for heavy industrial use
  • Adjustable distance between two weigh beams to accommodate various pallet and cargo dimensions
  • Equipped with heavy-duty feet for enhanced stability during using
  • Integrated handles make the weigh beams easy to transport and reposition
  • Functions: Weighing, Counting, Check Weighing, Percent Weighing, Accumulation, Weight Unit Conversion, Hold, Pre-Tare, Tare, GEO CAL



     Dimensions



EH-WB Weigh Beam Dimensions - 1193 x 115.5 x 97 mm

Specifications

  • Capacity / Division
    2500 kg x 0.5 kg / 5000 lb x 1 lb
    5000 kg x 1 kg / 10000 lb x 2 lb
  • Units of Measure
    kg, lb, lb:oz
  • Display
    6 ½ digits 1" (25mm) high, 7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 4 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C ( 14°F to 104°F )
  • Platform Size
    1200 x 100 x 97 mm /
    47.2" x 3.9" x 3.8"/ each
  • Packing Information
    1340 x 540 x230 mm / 1pc / ctn
    G.W.: 35 kg N.W.: 31 kg
  • Options
    RS232 cable, USB cable, Remote display,
    Indicator floor stand
