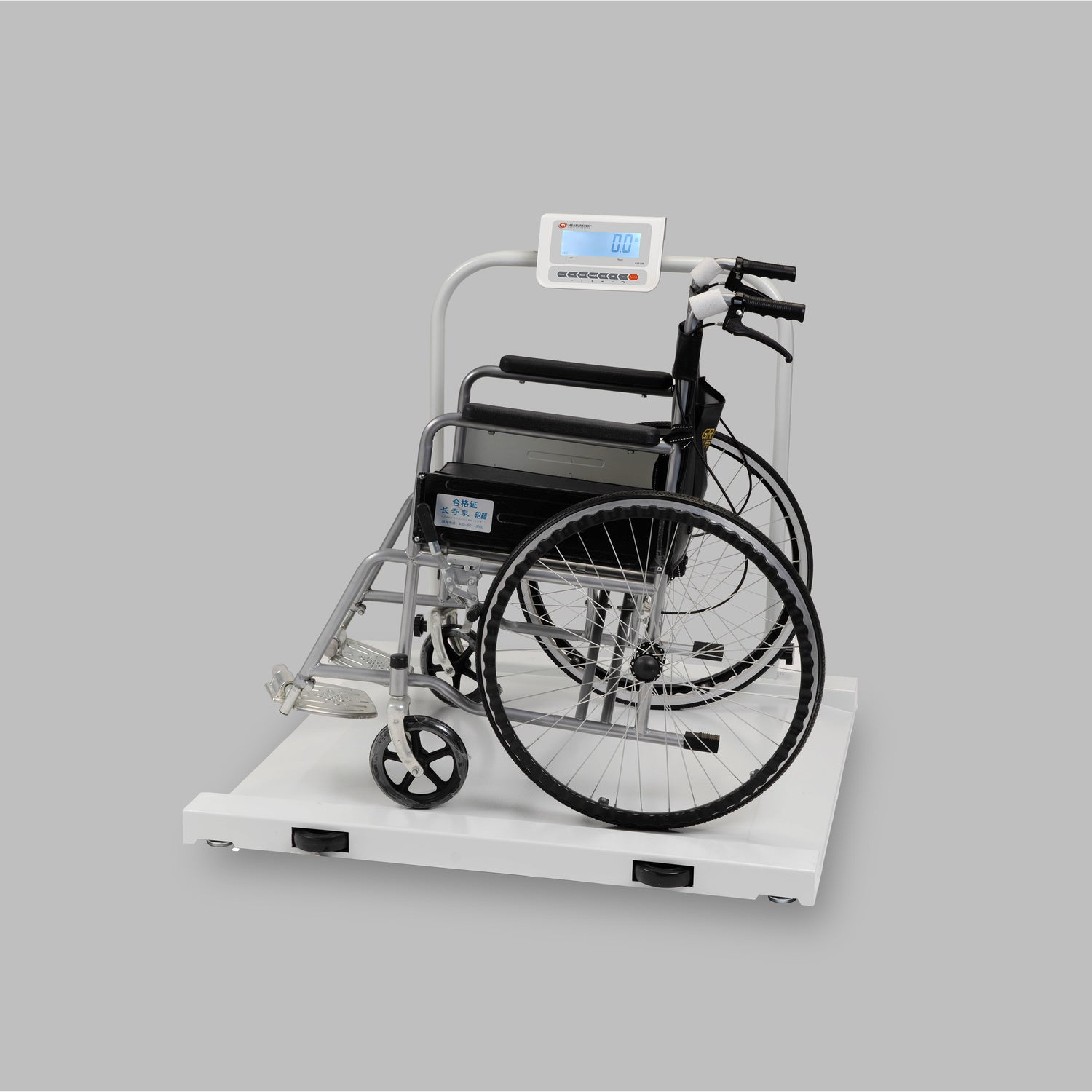

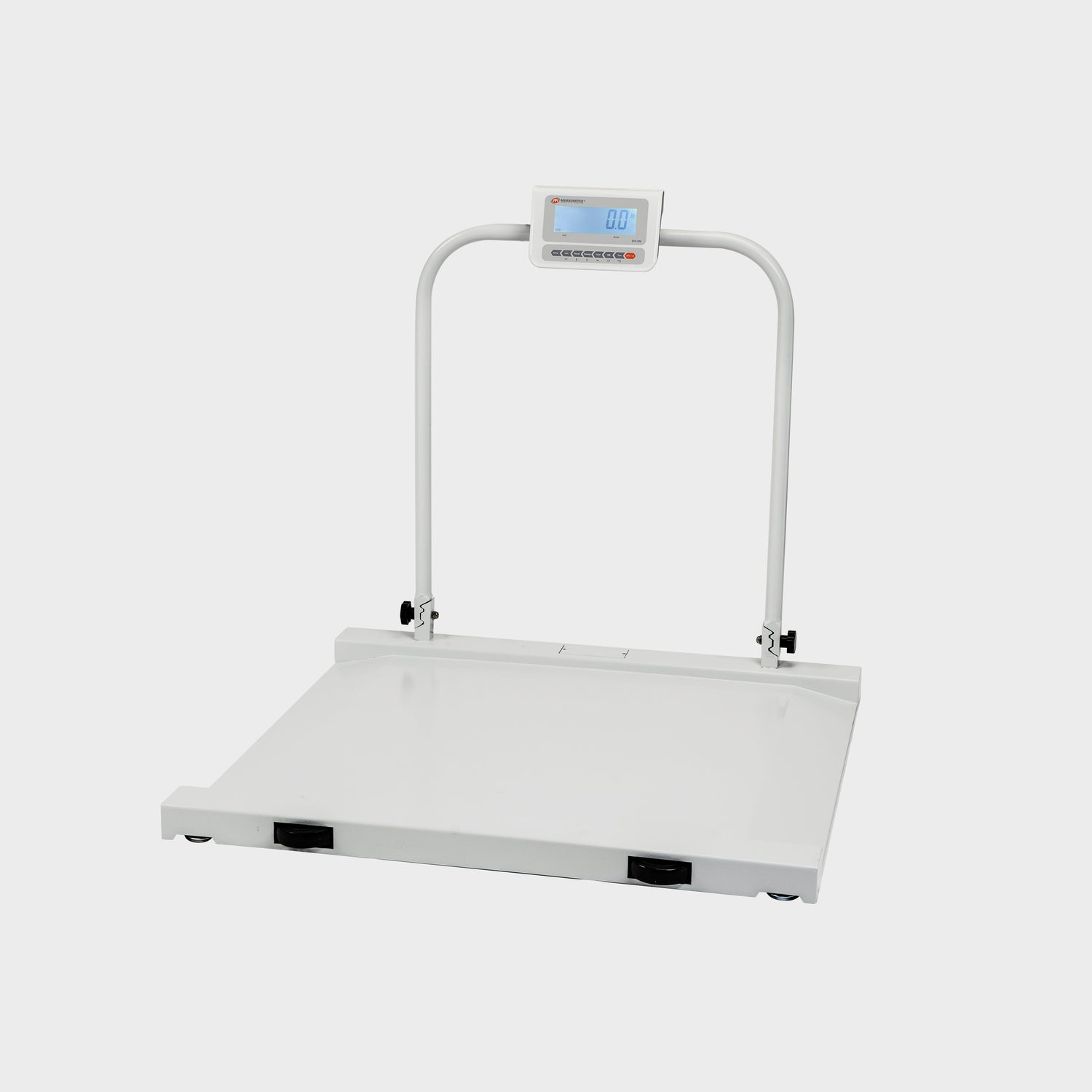

EH-FH Foldable Wheelchair Scale with Ramps / Assisted Medical Scale with BMI Calculation / 500 kg Capacity

The EH-FH fodable wheelchair scale is specialized medical scale that weighs patients who use wheelchairs or have limited mobility, for either walking on or being wheeled on to be weighted. These scales have handrails or supportive side rails that provide stability and safety for the patient during the weighing process. The robust ABS housing indicator provides functions like BMI Calculation, Reweigh, Recall, Hold/Release, Pre-Tare, GEO Calculation and Data Transmission.



     Features



  • Low profile heavy-duty steel platform with built in ramps provides easy access of wheelchairs.
  • Foldable steel handrail provides safety support to patients
  • Housed in robust ABS enclosure indicator and with large backlit LCD display for easy reading
  • Equipped with RS232 and USB interfaces
  • Adjustable feet with silicon pad for quick levelling and anti-skidding
  • Transport castors and integrated handles included for easy mobility
  • Functions: KG/LB conversion, BMI, Reweigh, Recall, Hold/Release, Pre-Tare, Tare, Zero, Auto Zero, Auto-Off, Parent/Child Weighing, Permanent Unit Disable, Audible/Mute Sound Option, GEO CAL



     Dimensions



EH-FH Foldable Wheelchair Scale Dimensions - 1050 x 972 x 70 mm

Specifications
  • Capacity / Division
    300 kg x 0.1 kg / 660 lb x 0.2 lb
    500 kg x 0.2 kg / 1000 lb x 0.5 lb
  • Units of Measure
    kg, lb
  • Display
    6 ½ digits 1.5" (38mm) high, 7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 6 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C ( 14°F to 104°F )
  • Platform Size
    1050 x 972 mm / 41.3" x 38.27 (with ramps)
  • Packing Information
    1210 x 1200 x 245 mm / 1pc / ctn
    G.W.: 56kg N.W.: 53kg
  • Approvals
    FDA, CE
  • Options
    RS232 cable, USB cable, Handrail, Indicator floor stand

Product Details

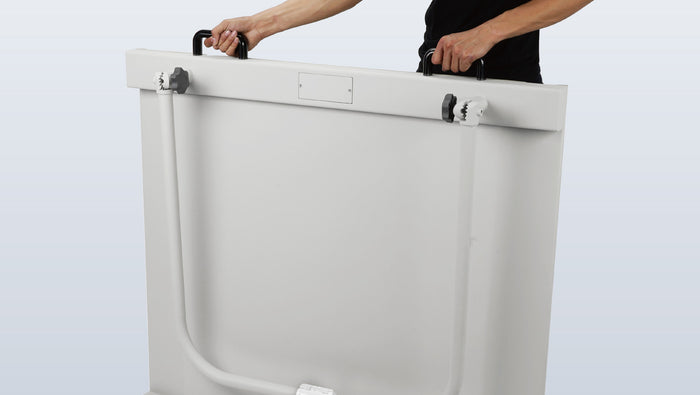

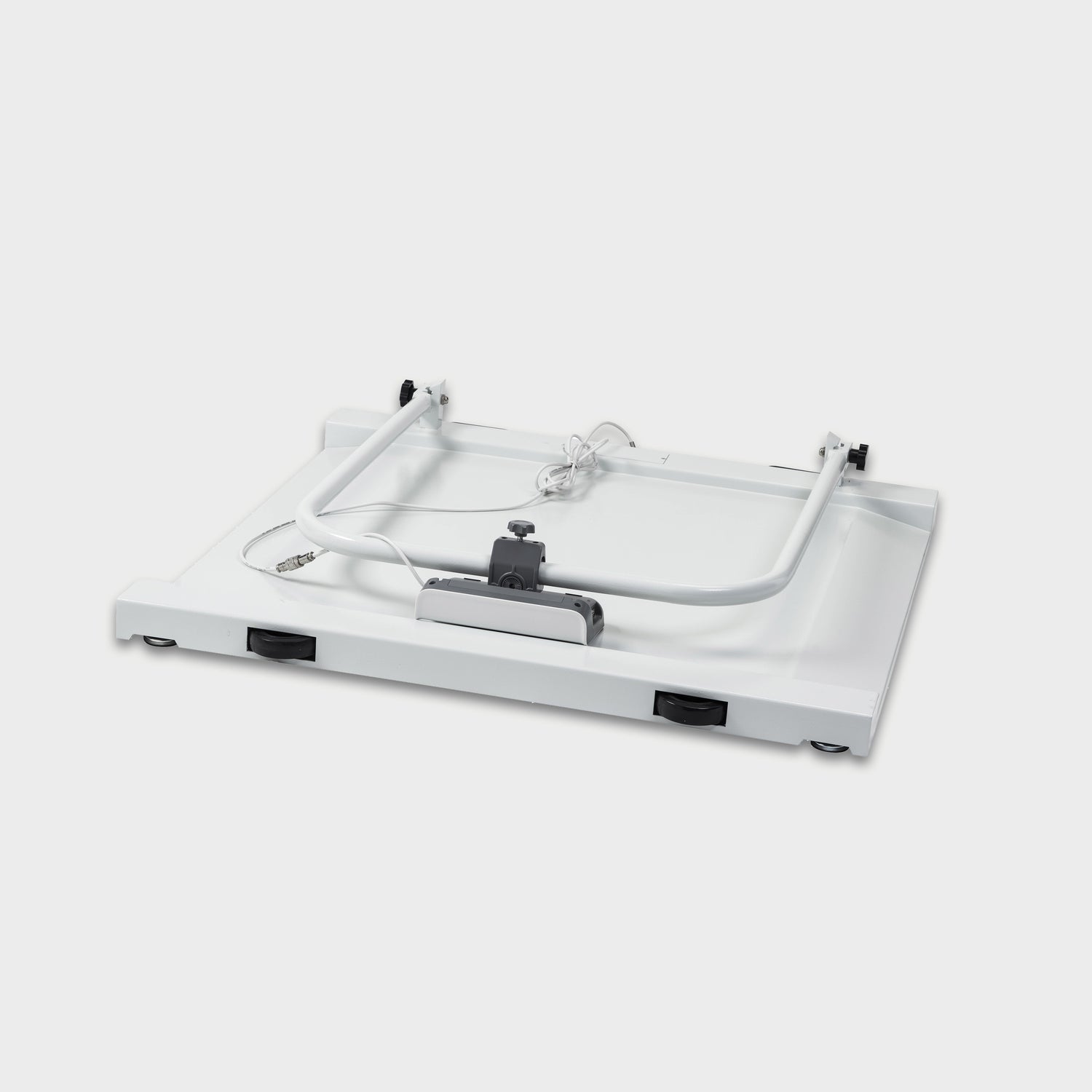

  • EH-FH wheelchair scale with integrated nylon handles, transport wheels, and foldable handle for easy mobility in healthcare facilities
    • The integral nylon handles, wheels and foldable handle ensure the scale easily moveable, making it convenient for use in various locations within a healthcare facility.

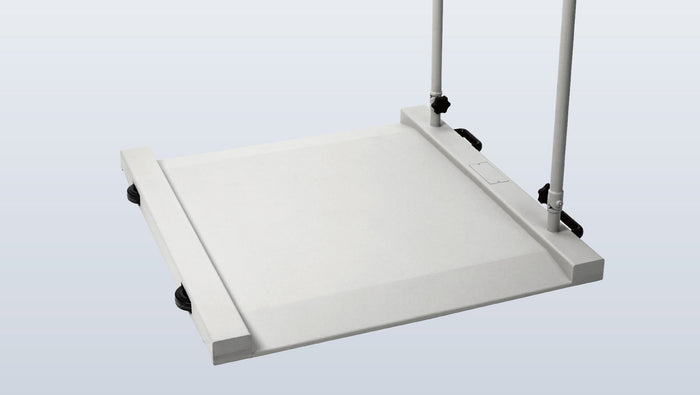

  • Low-profile wheelchair scale platform with smooth ramp access for easy patient transfers
    • The low platform design makes it easy for wheelchairs to access and exit.

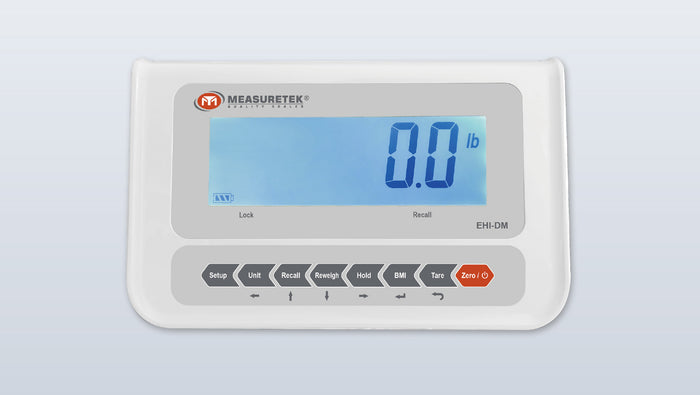

  • 1.5" Large LCD display with white backlight for easy reading
    • 1.5" Large LCD display with white backlight, makes it a breeze to read.
