EH-WD Foldable Wheelchair Scale with ramps / Assisted Medical Scale for Hospitals & Nursing Homes

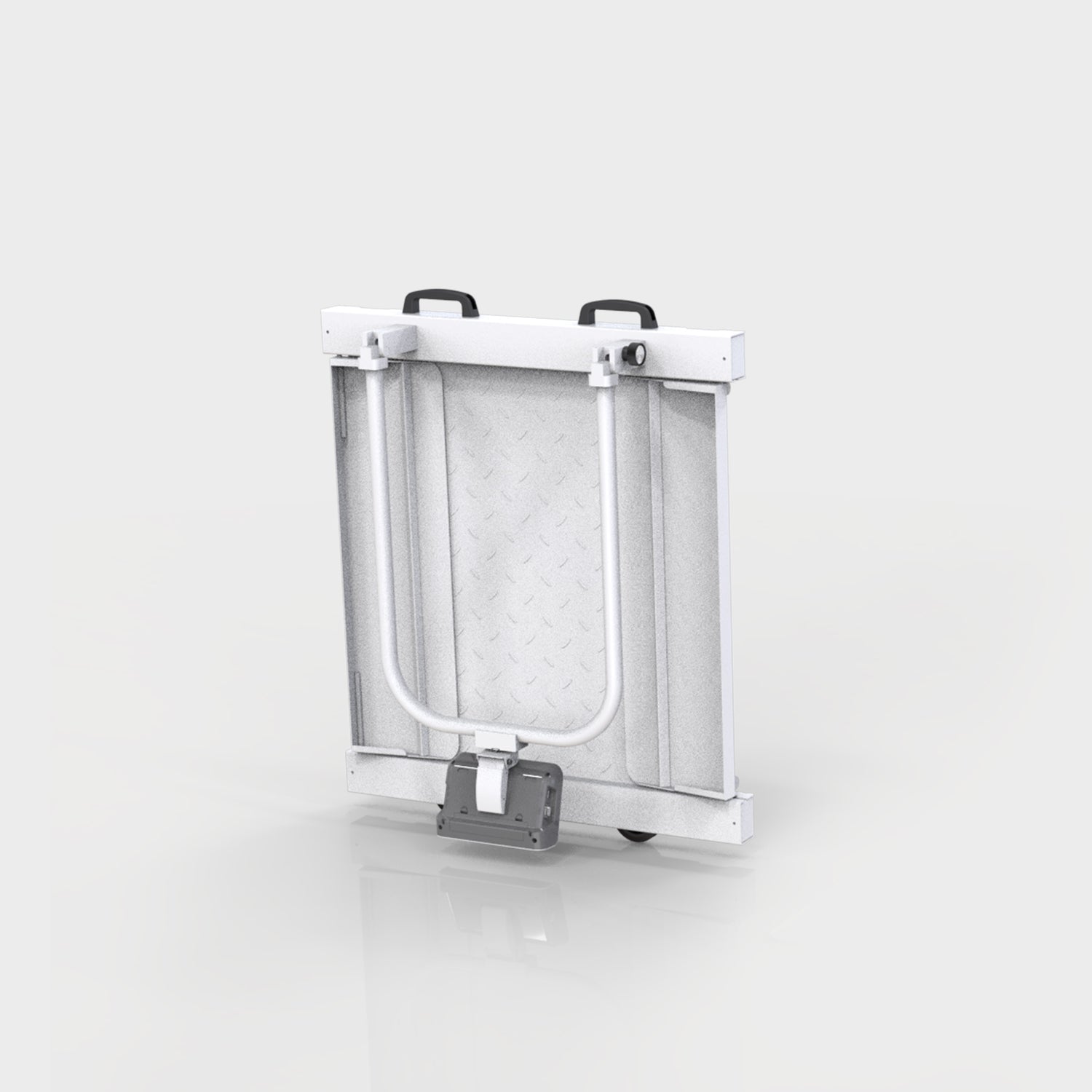

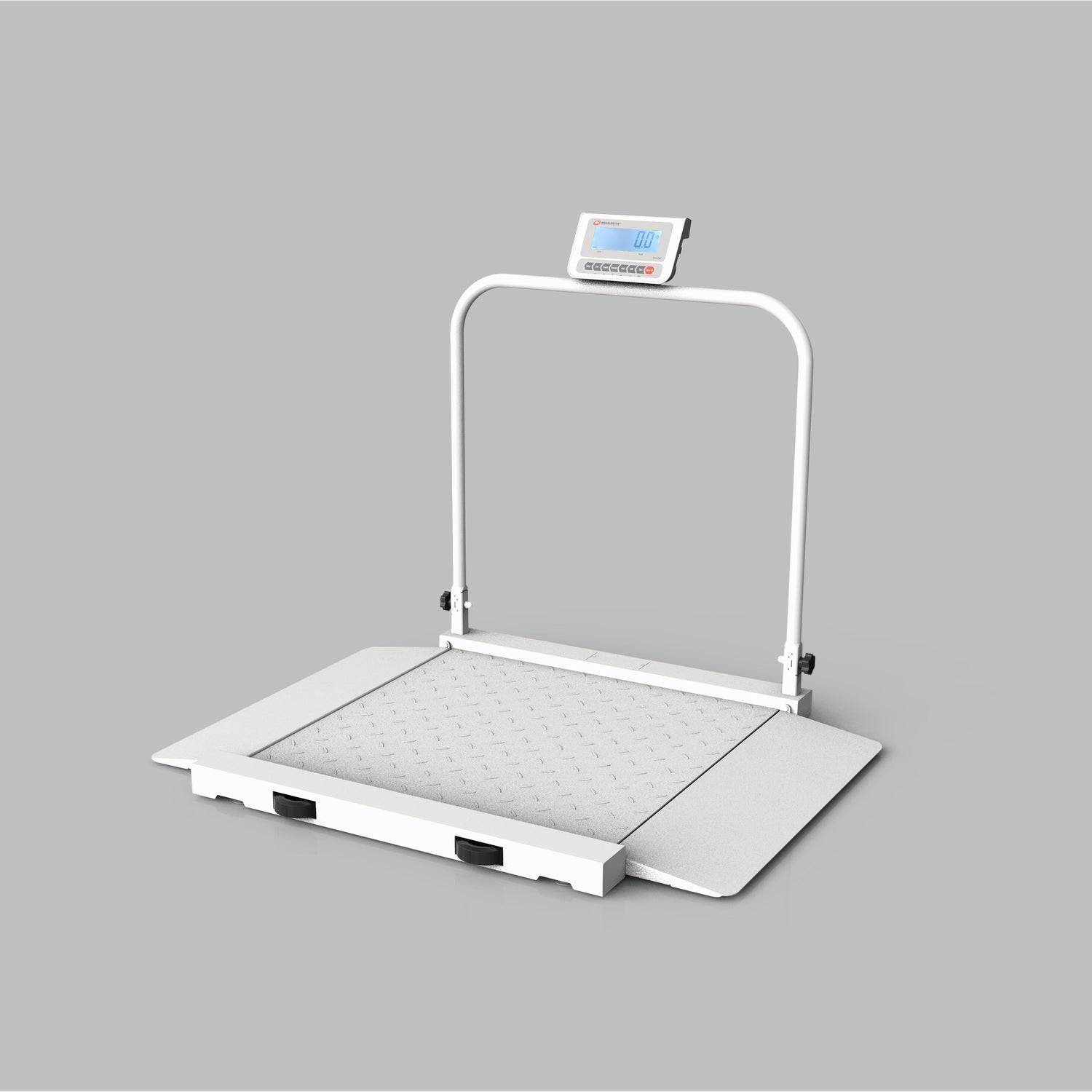

The EH-WD foldable wheelchair scale is a versatile and user-friendly medical weighing solution designed for healthcare facilities. Featuring a sturdy, low-profile platform with non-skid surfaces, it accommodates most wheelchairs with ease. The scale includes firmly anchored handrails and two auto-lifting ramps, both of which can be folded for easy transport or storage, enhancing portability. A rotatable display ensures optimal visibility, while integrated wheels allow for effortless mobility within clinical settings.


With wireless connection and RS232/USB interfaces, this scale seamlessly integrates with electronic health record (EMR) systems, streamlining data transfer and patient record management. Advanced features such as BMI calculation, tare function, reweigh, recall, and hold functionality enhance its precision and usability.


     Features



  • Housed in robust ABS enclosure indicator and with large backlit LCD display for easy reading
  • With a BMI calculator
  • The non-slip steel platform prevents the wheelchair from sliding
  • Built-in large mute wheels and handles for convenient portability and placement
  • Antimicrobial protection for safe use
  • Functions: LB / KG conversion, BMI, Reweigh, Recall, Hold/release, Pre-Tare, Tare, Zero, Auto zero, Auto off, Parent / Child weighing, Permanent unit disable, Audible / Mute sound option, GEO CAL



     Dimensions



EH-WD Wheelchair Scale Dimensions - 1272 x 1048 x 1040 mm

Specifications

  • Capacity / Division
    1000 lb x 0.2 lb / 500 kg x 0.1 kg
  • Units of Measure
    kg, lb
  • Display
    6 ½ digits 1.5" (38mm) high, 7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 6 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C ( 14°F to 104°F )
  • Platform Size
    800 x 800 x 43 mm /
    31.5” x 31.5” x 1.7”
  • Ramp Size
    790 x 230 mm / 31.1” x 9.1”
  • Packing Information
    1195 x 1085 x 260 mm / 1pc / ctn
    G.W.: 41.5kg N.W.: 38.5kg
  • Approvals
    FDA, CE
  • Options
    RS232 cable, USB cable,
    WIFI or Bluetooth module

Product Details

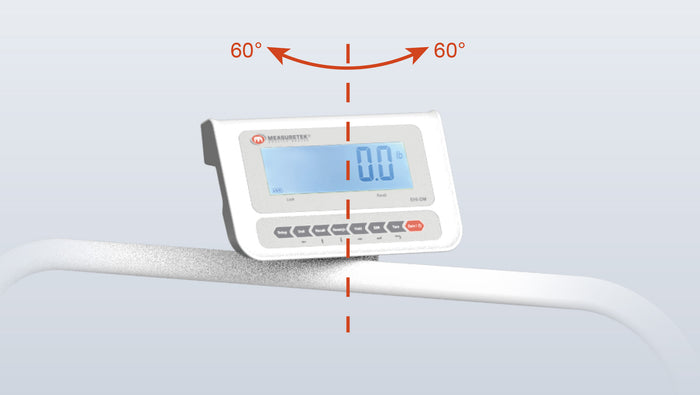

  • 120° rotatable indicator on EH-WD wheelchair scale allows flexible viewing angles for nurses and caregivers
    • The indicator can be rotated 120° horizontally for convenient viewing of data by nursing staff.
  • Foldable wheelchair scale handrail with slope protection for safe patient transfers
    • Foldable handrail with slope protection, designed for easy mobility and storage.
  • The ramp can lift off the ground when a wheelchair is being pushed onto the platform, ensuring smooth and effortless movement of the wheelchair.
    • The ramp can lift off the ground when a wheelchair is being pushed onto the platform, ensuring smooth and effortless movement of the wheelchair.
