AC-PCK Pipette Calibration Kit - Compatible with EH-BH Balance


Pipettes are widely used instruments in laboratories, and proper maintenance is crucial to ensure accurate and reliable results. Each laboratory has their regular verification procedures to perform preventive maintenance or (re)calibration when necessary.

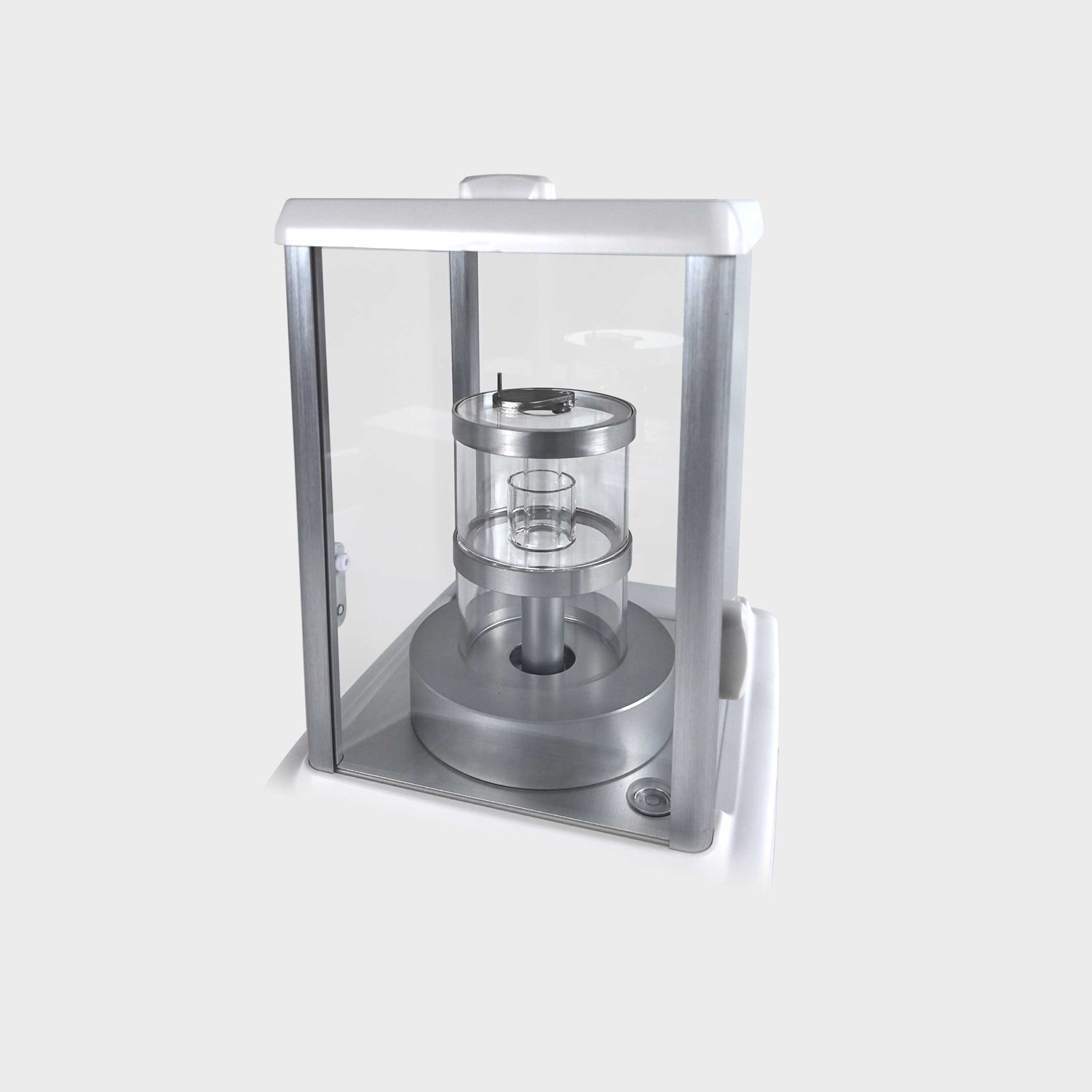

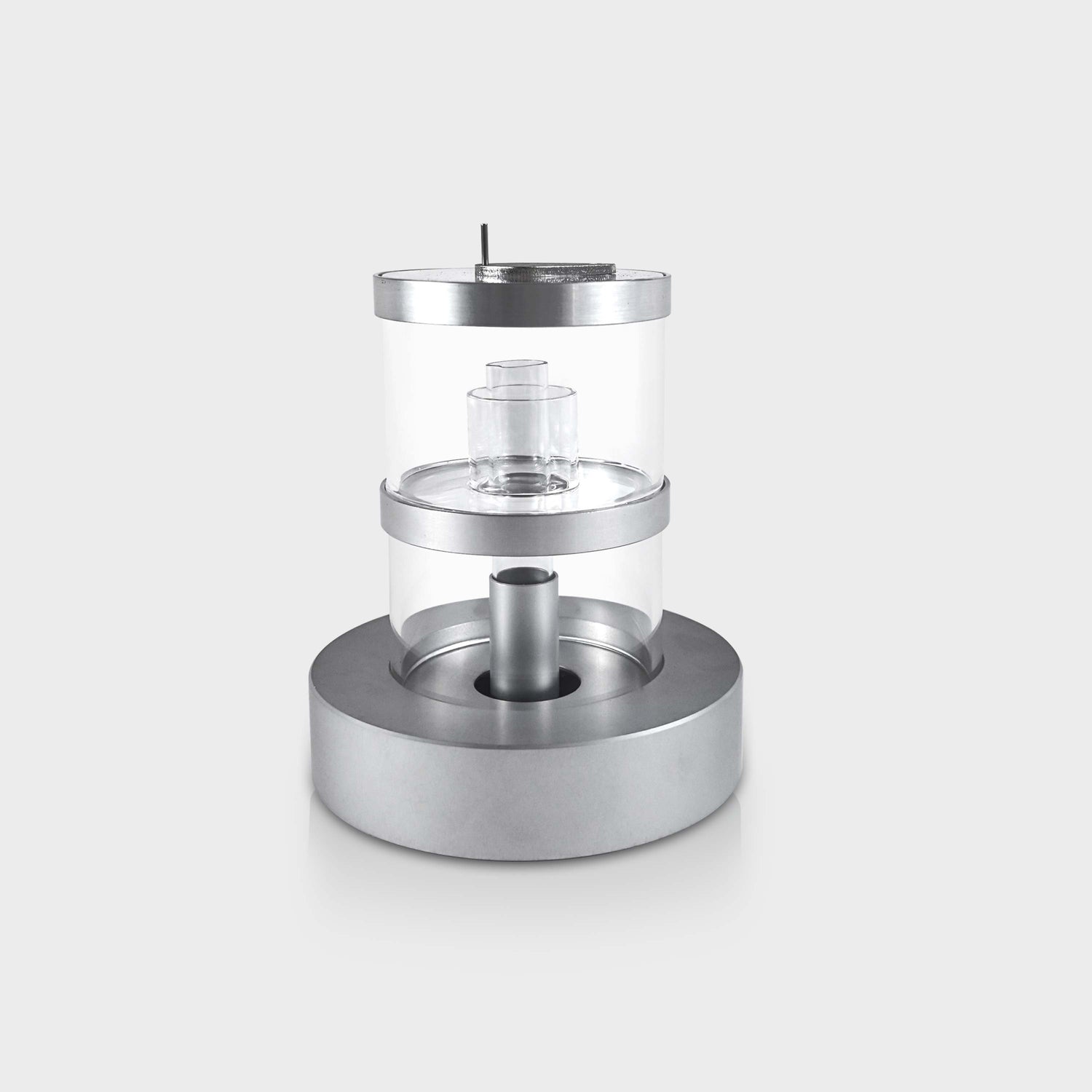

The AC-PCK Pipet Calibration Kit is designed for verifying piston pipettes using the gravimetric method. It is equipped with an evaporation trap, which consists of a specialized weighing vessel that significantly reduces liquid evaporation naturally occurring during pipette testing, thereby ensuring reliable results.



     Features



  • The embedded “Pipette Check” function in EH-BH balances allow you to test the correct operation of a pipette by selecting a verification method.
  • At the end of “Pipette Check” test, a detailed report is generated with the overall test result and the relative partial values.
  • Verification methods in EH-BH balances:
    ISO8655
    4x (100% 10%): 4 samples at 100% and 10% of the nominal volume
    4x (100%): 4 samples at 100% of the nominal volume
    Custom: number of samples and percentage of the volume of your choice
  • It is possible to identify whether a pipette needs maintenance or (re)calibration by assessing its performance according to the specifications given by the ISO8655 directive
  • Pipette information (model, serial number, pipette type, tip, number of channels, nominal value, ...) can be stored in the balance's internal database for easy recall and greater speed of the control procedure
  • The evaporation trap creates a saturated area of water vapor above the test tube containing the liquid coming from the pipette, thus the evaporation of the tube is minimal during the procedure and reliable results can be obtained.

Specifications

  • Verifiable pipette types
    Fixed Volume / Variable Volume /
    Air displacement /
    Positive displacement (reusable) /
    Positive displacement (disposable)
  • Can work with
    EH-BH105, EH-BH224, EH-BH314
  • Packing Information
    320 x 300 x 130 mm / 1pc / carton
    G.W. 1.2kg N.W. 0.8kg
