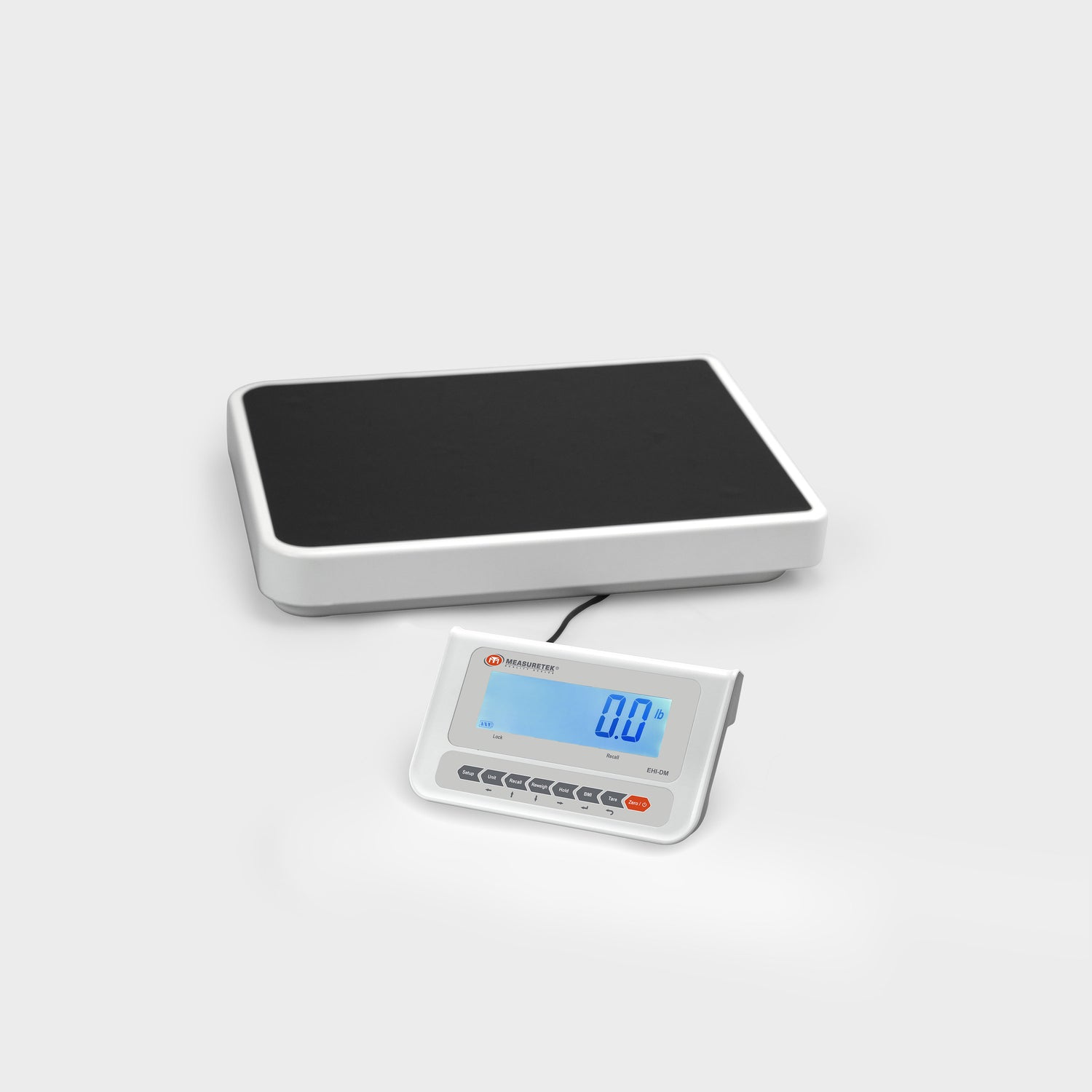

EH-PFD Bariatric Floor Scale / Physician Scale / Medical Scale / Child Weighing Scale

The EH-PF series bariatric floor scale is a professional-grade weighing solution designed for hospitals, clinics, and healthcare facilities. Its low-profile platform enhances accessibility, making it easier for patients of all ages to step on and o safely. The advanced reweigh function allows for weighing mother and child together and then automatically determining the child’s weight separately, providing a convenient solution for pediatric and maternity care.



     Features



  • Housed in robust ABS enclosure indicator and with large backlit LCD display for easy reading
  • Low profile cast aluminum platform base with slip-resistant mat prevents from sliding
  • Comes with the BMI calculator
  • Antimicrobial protection for safe use in long-term care facilities
  • Available to be mounted on the wall or placed on the table with a stand
  • Functions: KG/LB conversion, BMI, Reweigh, Recall, Hold/Release, Pre-Tare, Tare, Zero, Auto Zero, Auto-O , Parent/Child Weighing, Permanent Unit Disable, Audible/Mute Sound Option, GEO CAL



     Dimensions



EH-PFD Bariatric Floor Scale Dimensions

Specifications
  • Capacity / Division
    300 kg x 0.1 kg / 660 lb x 0.2 lb
  • Units of Measure
    kg, lb
  • Display
    6 ½ digits 1.5" (38mm) high, 7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or
    6 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C ( 14°F to 104°F )
  • Platform Size
    434 x 365 x 61 mm /
    17.1” x 14.4” x 2.4”
  • Packing Information
    520 x 450 x 205 mm / 1pc / ctn
    G.W.: 9.8kg N.W.: 7.8kg
  • Approvals
    FDA, CE
  • Options
    RS232 cable, USB cable, indicator stand, Wall mounting kit, WIFI or Bluetooth module

Product Details

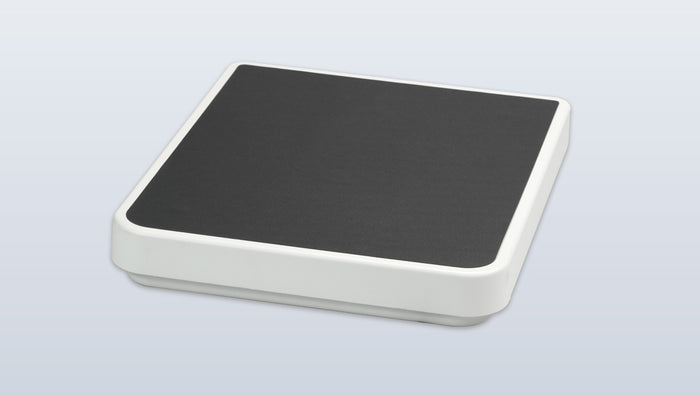

  • Cast aluminum platform - durable, lightweight and corrosion-resistant for long-term medical use
    • Cast aluminum platform provides durability, lightweight, corrosion resistance, ensuring that the scale can withstand frequent use over time.
  • Sturdy construction of EH-PF bariatric scale platform showing even weight distribution and anti-tip design
    • The robust base construction provides excellent stability, allowing users to stand anywhere on the platform without the risk of tipping over.

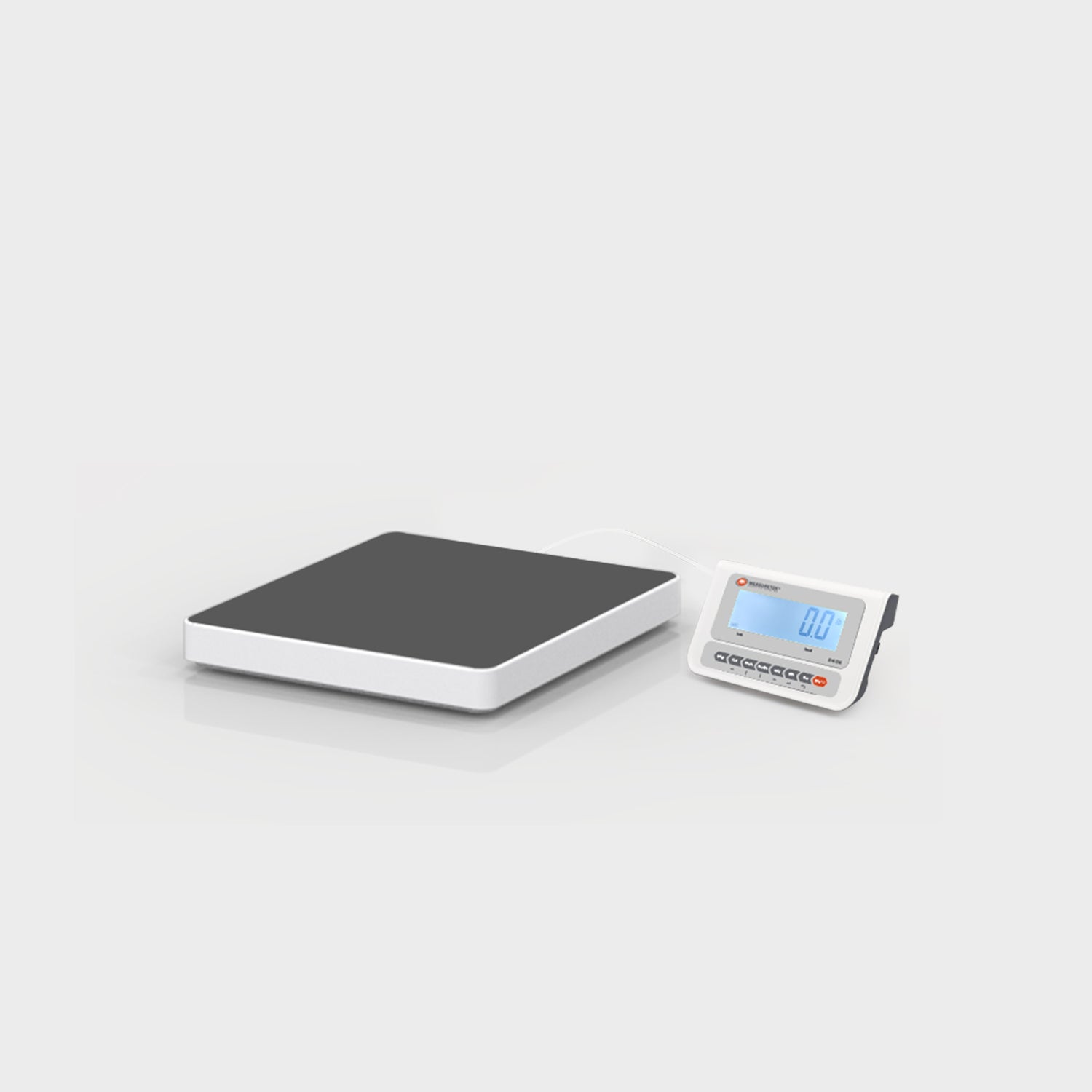

  • Versatile digital indicator mounted on wall and placed on table for flexible medical use
    • The digital indicator can be placed on a table or mounted on the wall, offering convenience in various medical environments.
