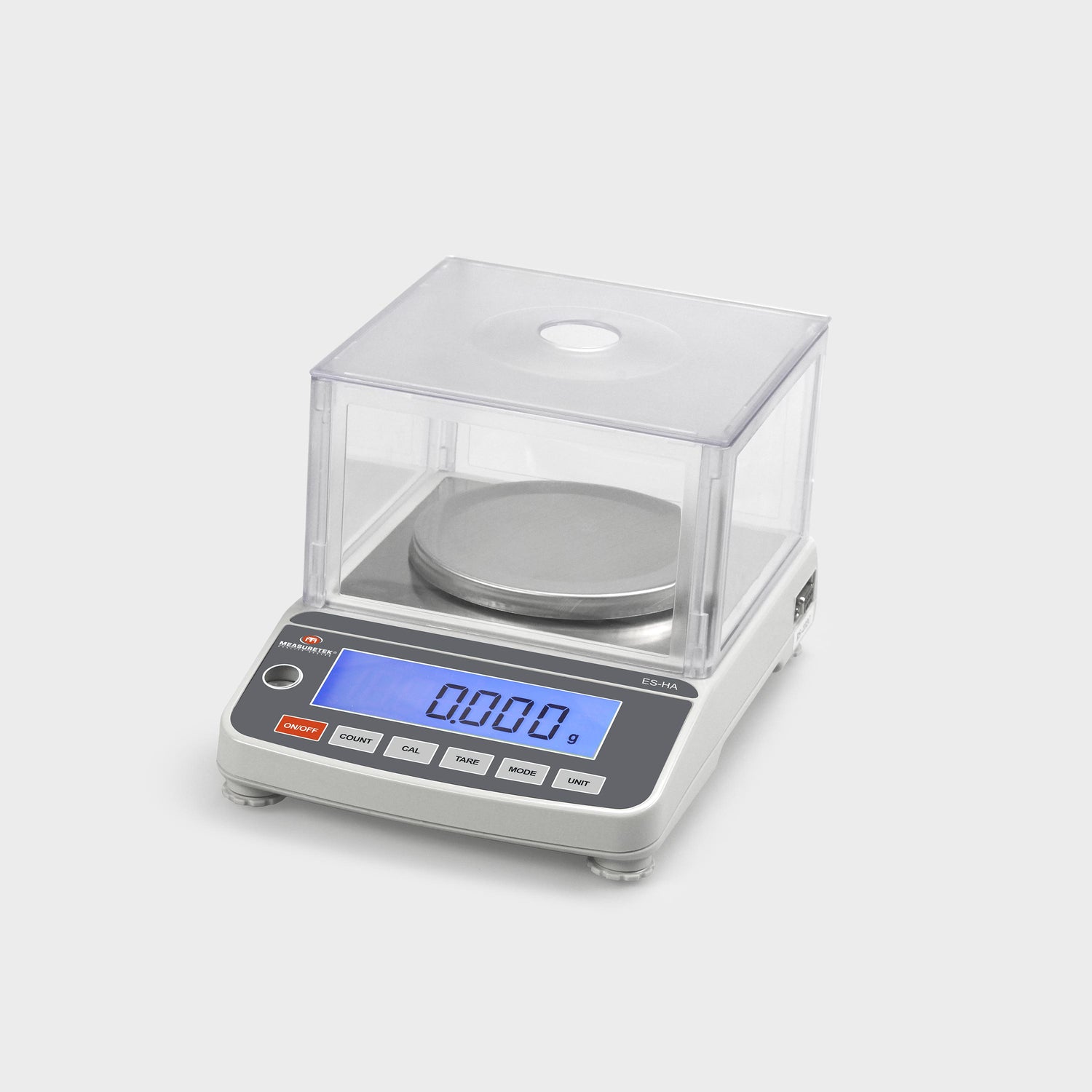

ES-HA Precision Balances / Lab Balances / Precision Scales


The ES-HA Series is an advanced precision balance, offering higher accuracy compared to basic models and meeting the demands of more precise measurement requirements.

It is an excellent choice for laboratories, the jewelry industry, hospitals, chemistry labs, and educational institutions. Key features include a durable ABS plastic housing, a removable stainless steel pan, a backlit LCD display, and a windshield for enhanced measurement stability.


     Features



  • Rugged ABS housing and Stainless steel weighing platter
  • High precision single point alum. load cell, resolution up to 1/80,000

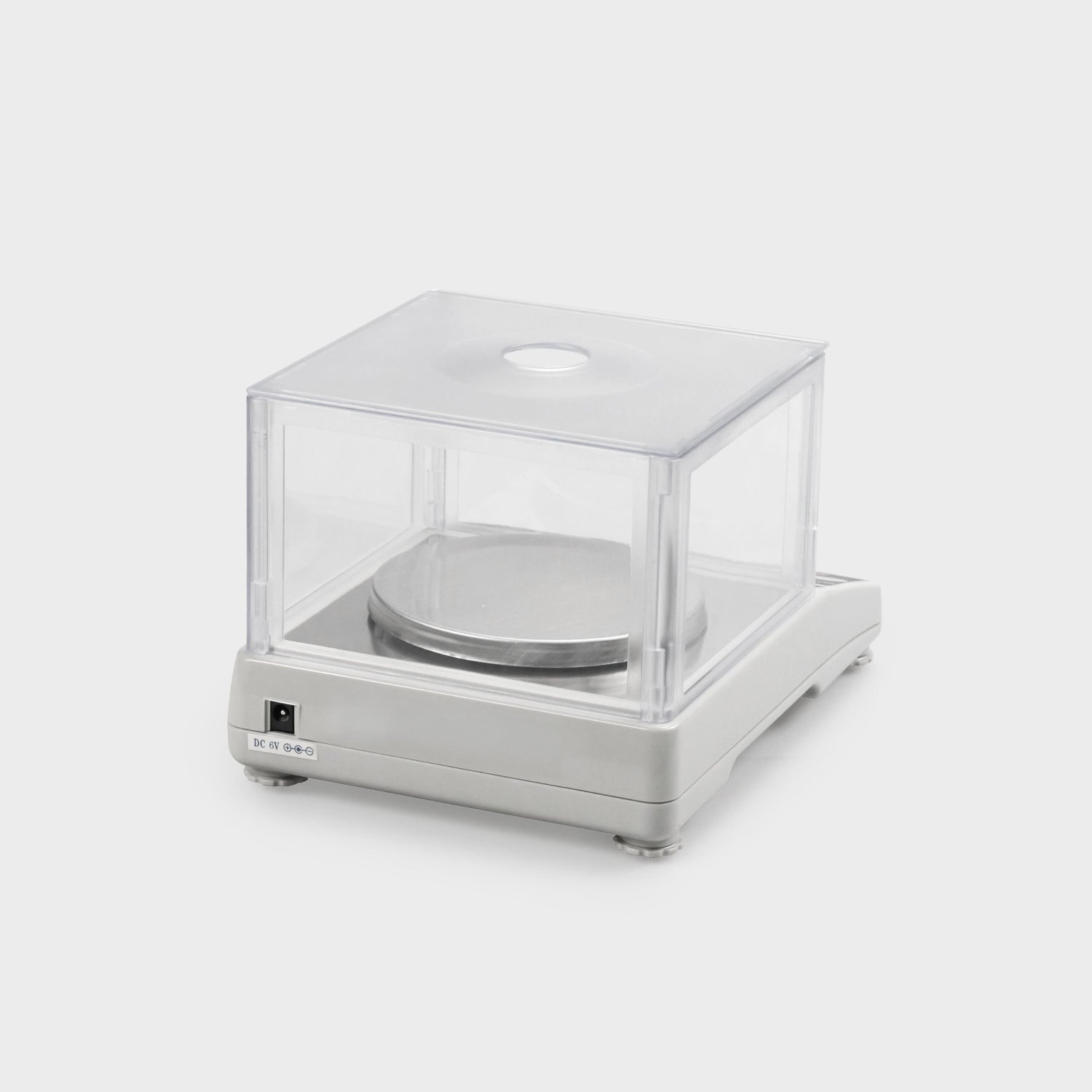

  • Glass or plastic wind shield offers more accurate reading
  • Leveling bubble and adjustable feet for quick set-up and stability

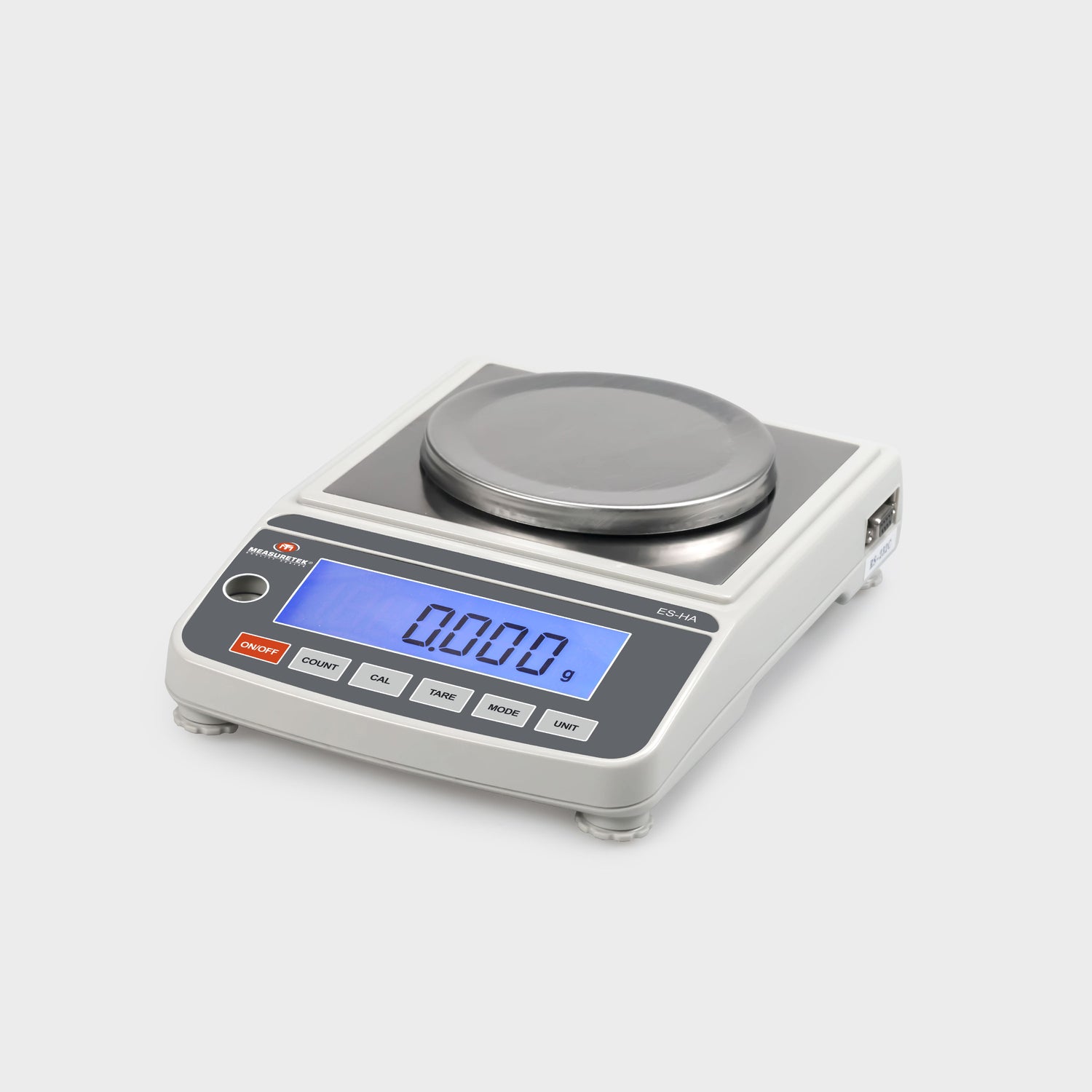

  • Large LCD display with backlight
  • 6 operation keys access functions of weighing, tare, unit switching, parts counting and percentage weighing

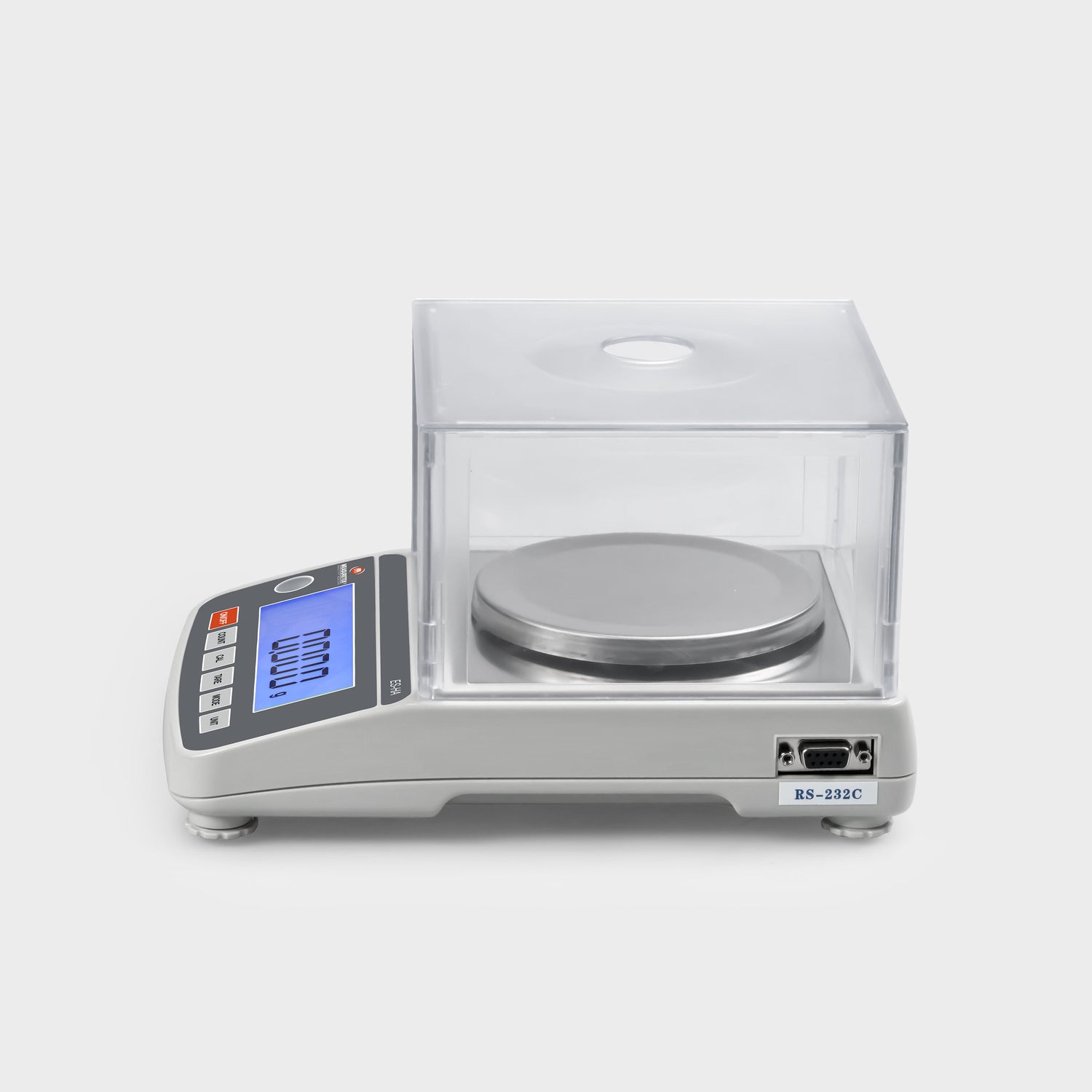

  • Standard RS232 serial port, allows to communicate with computer
  • Functions: One-step "CAL" key for fast calibration, Weighing, Parts counting function, Overload indication, Low battery indication, Auto-off



     Dimensions



ES-HA Precision Balance Dimensions - 170 x 255 x 140 mm

Specifications

  • Capacity / Division
    120 g x 0.001 g
    150 g x 0.01 g
    300 g x 0.01 g
    500 g x 0.01 g
    600 g x 0.01 g
    1200 g x 0.01 g
  • Units of Measure
    g, oz, ozt, dwt, ct, lb, t, pcs
  • Display
    6 ½ digits, 0.75" (19 mm) high, 7 segments LCD display with white backlight
  • Power Supply
    12V 500mA adaper or 6 x AA batteries
  • Communication
    RS232
  • Operating Temp
    10°C to 35°C (50°F to 95°F)
  • Pan Size
    Φ118 mm / Φ4.6”
  • Packing Information
    655 x 530 x 445 mm / 12 pcs / ctn
    G.W.: 22 kg N.W.: 20 kg
  • Options
    Glass wind shield, RS232 cable
