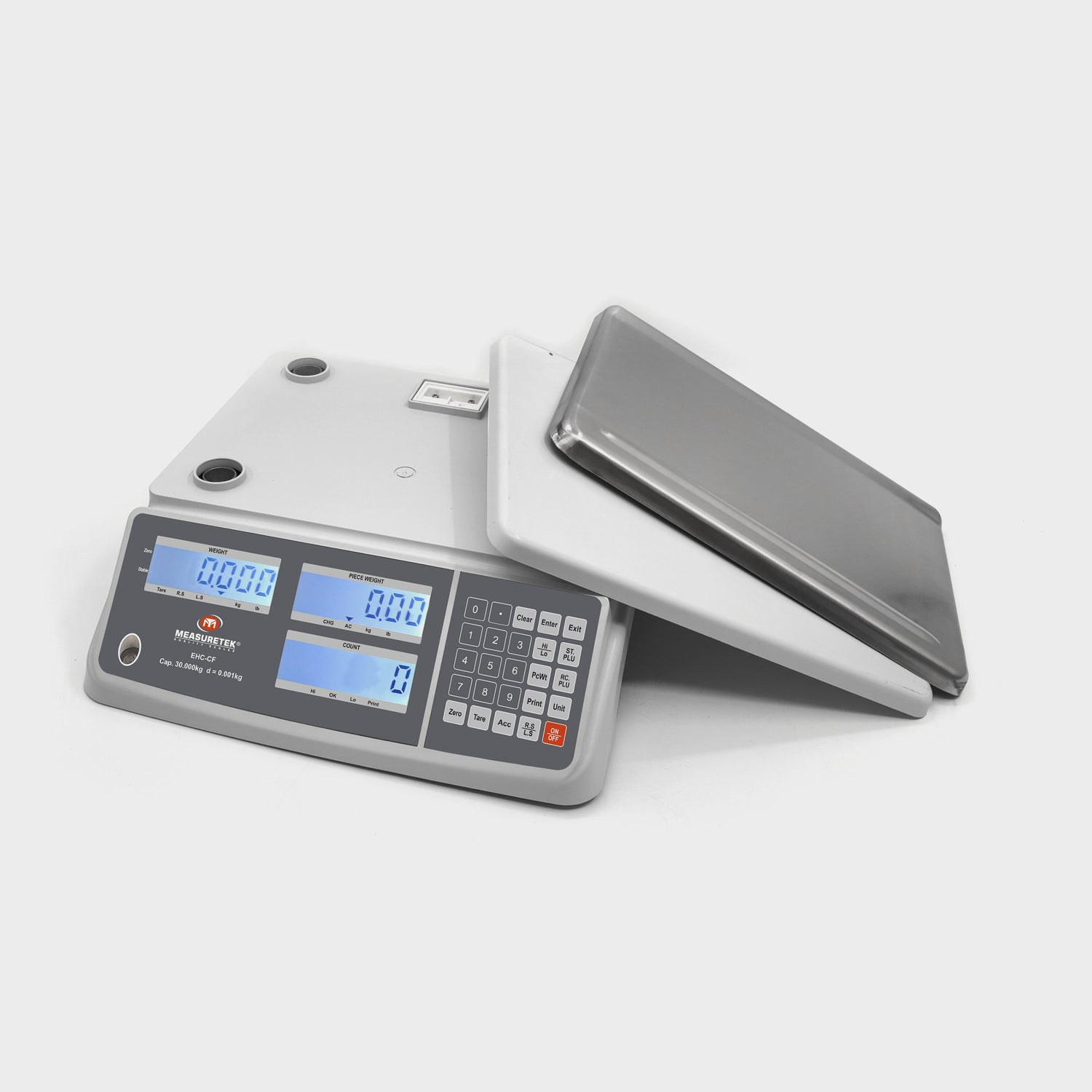

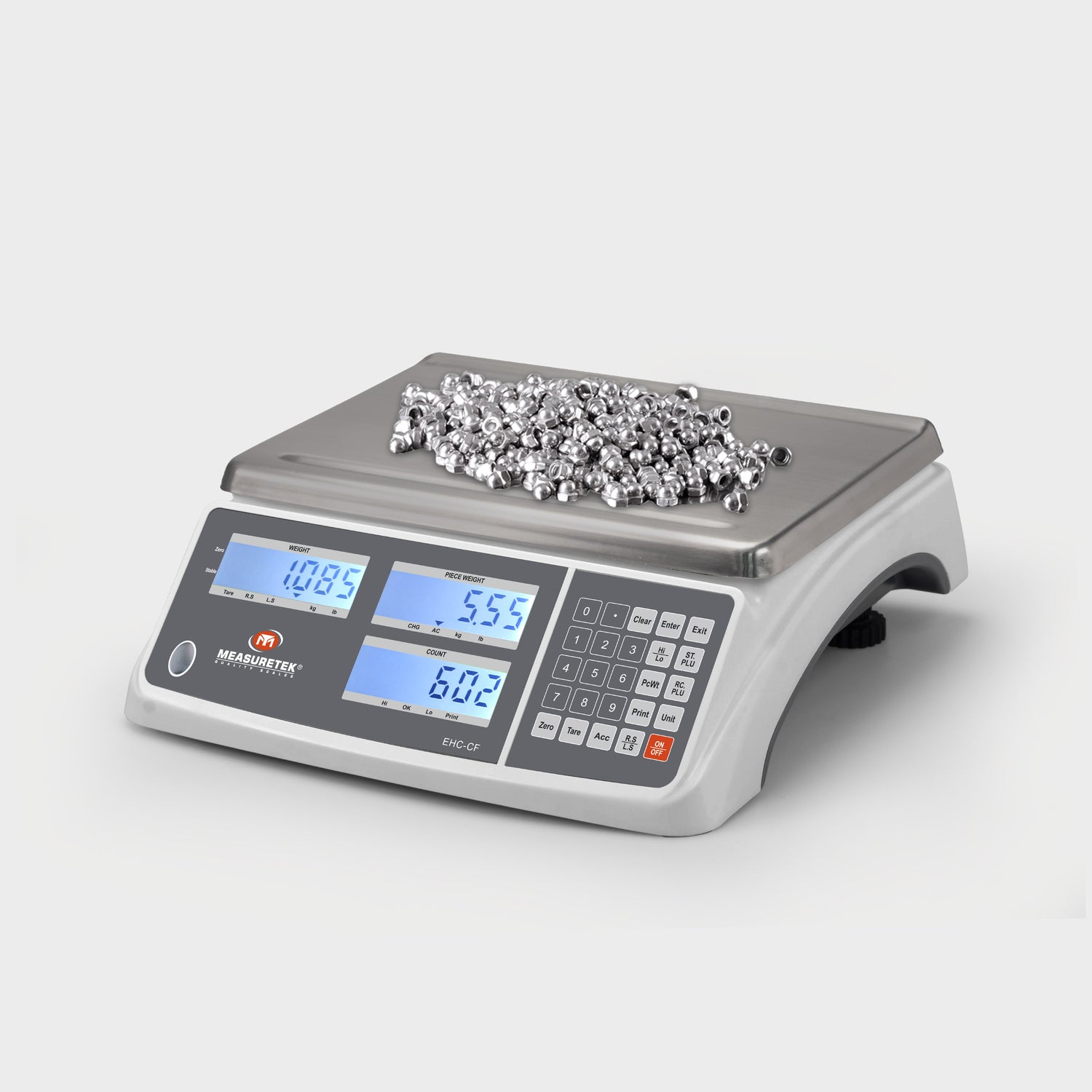

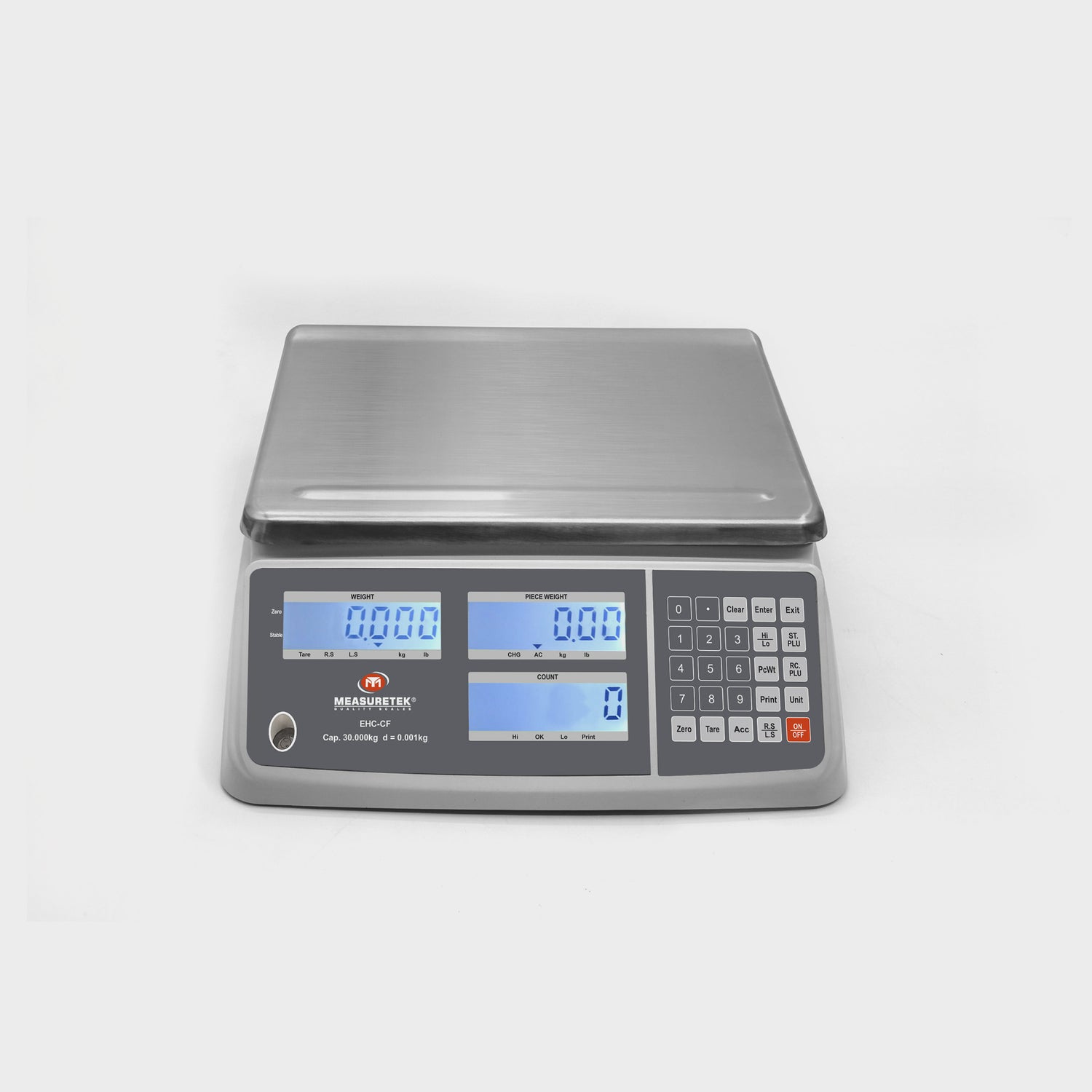

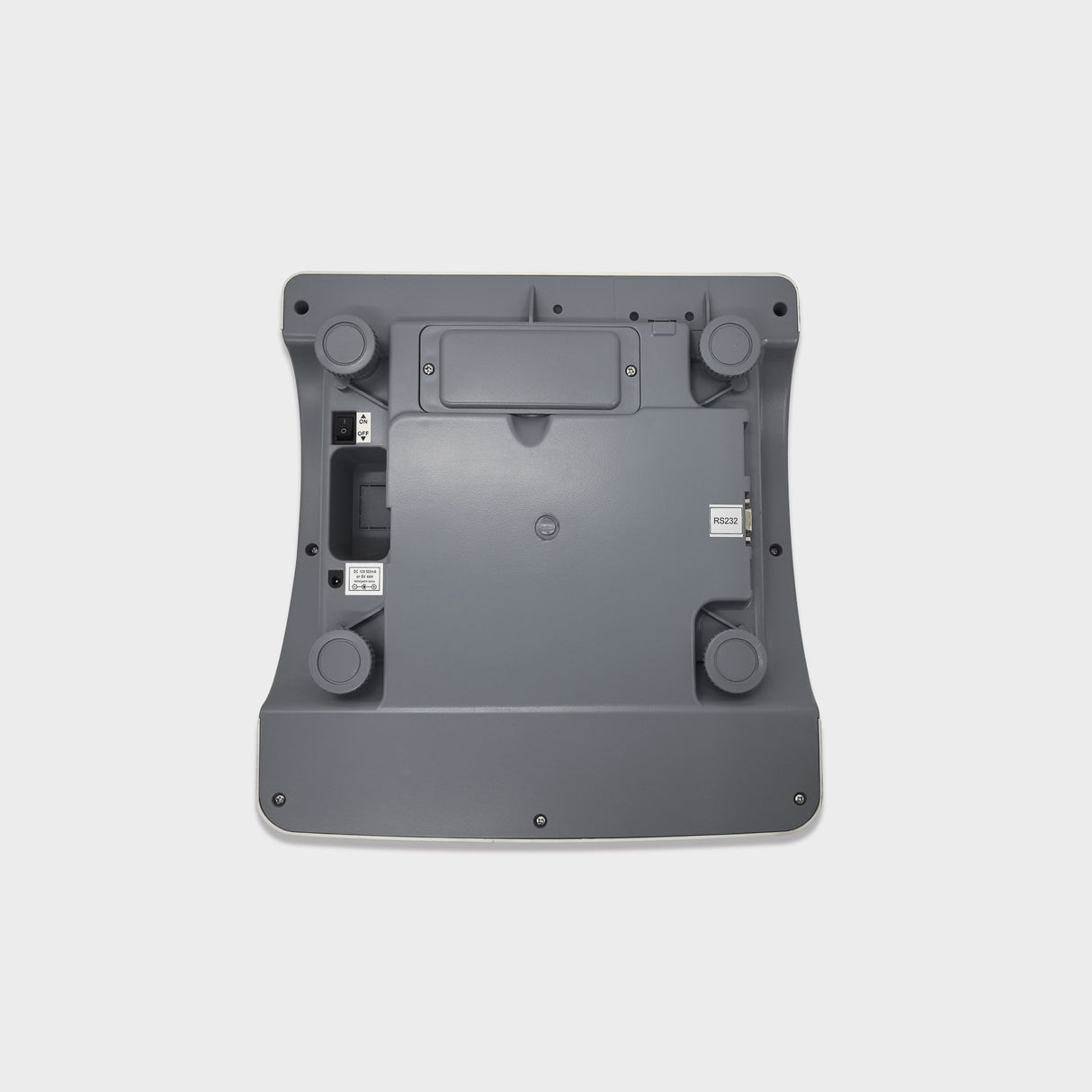

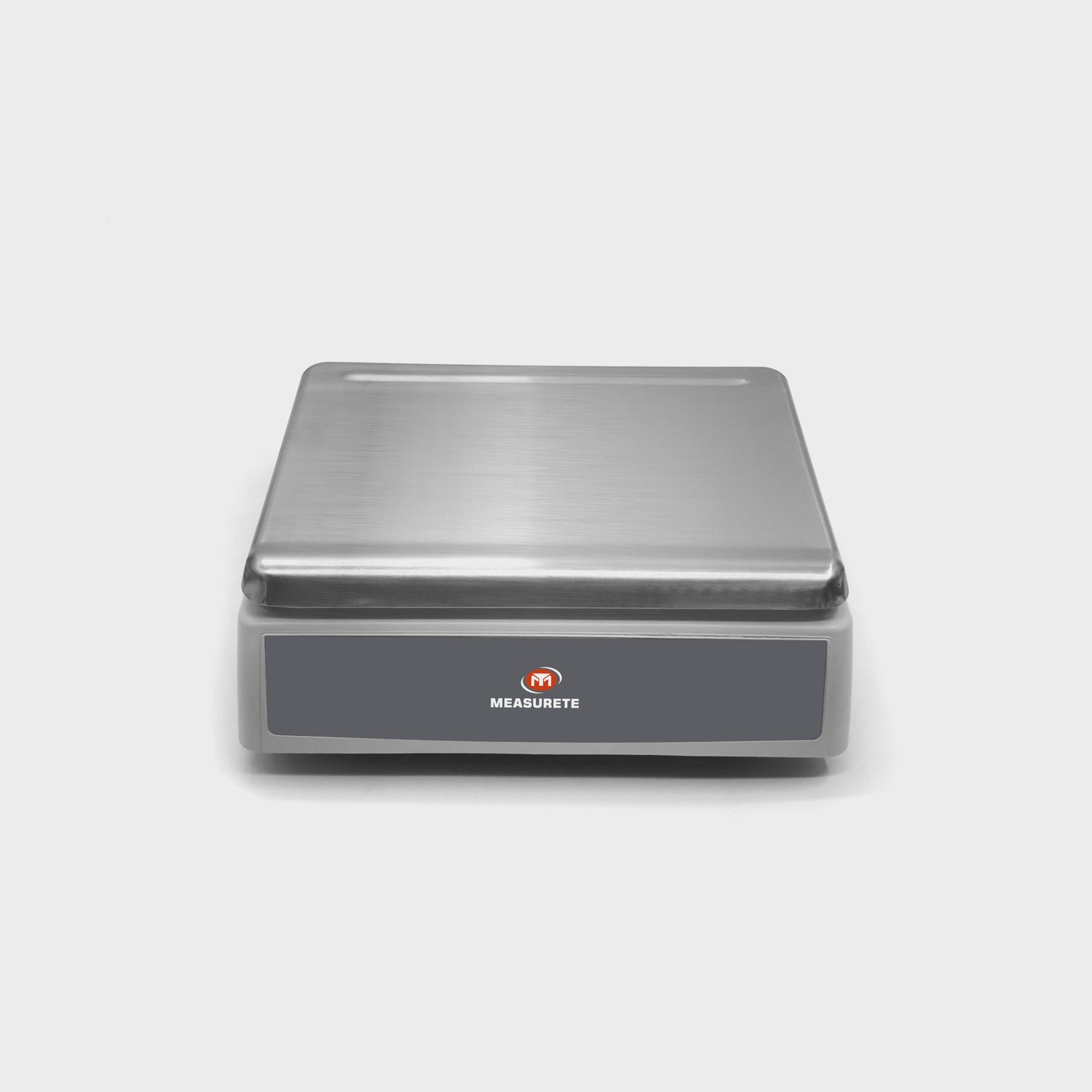

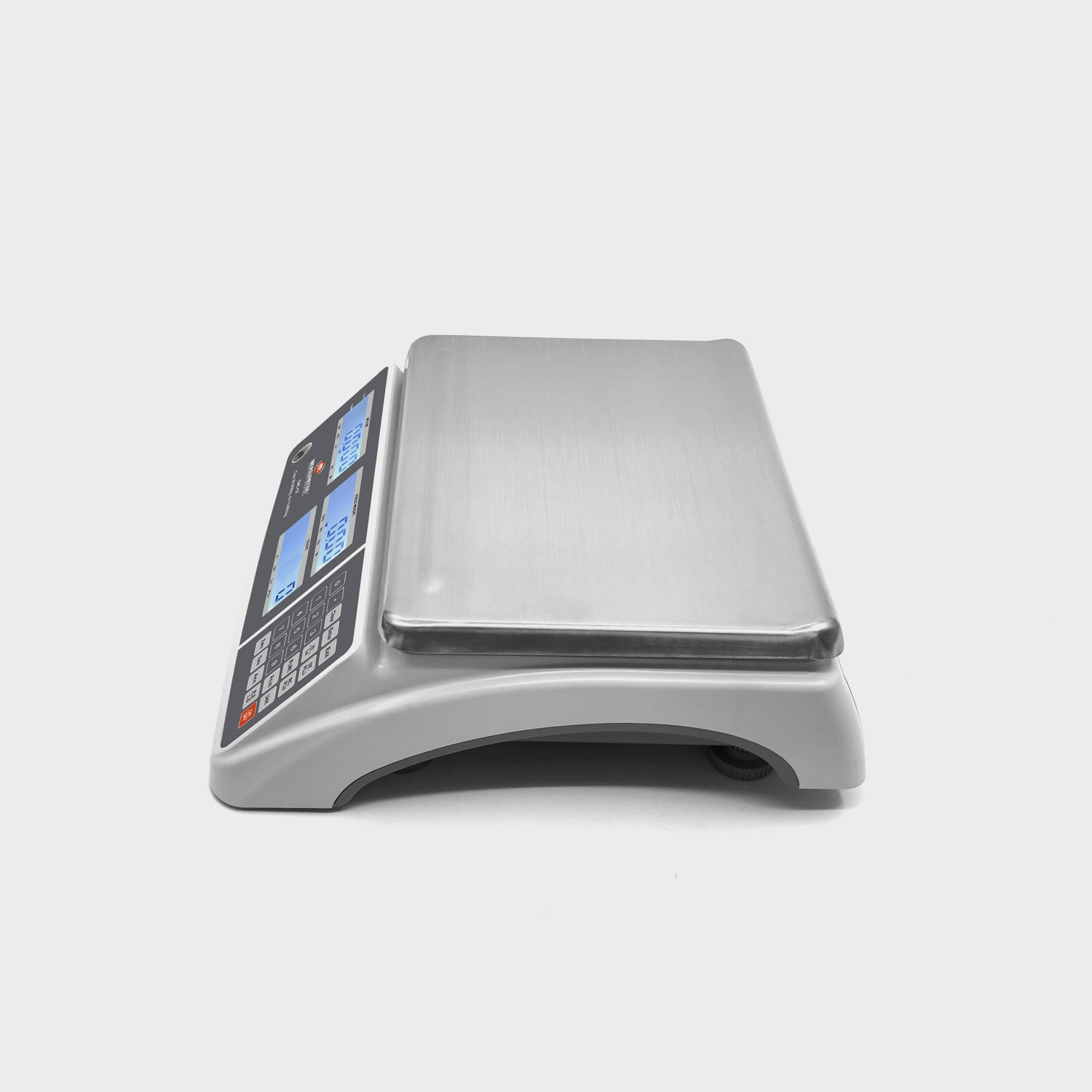

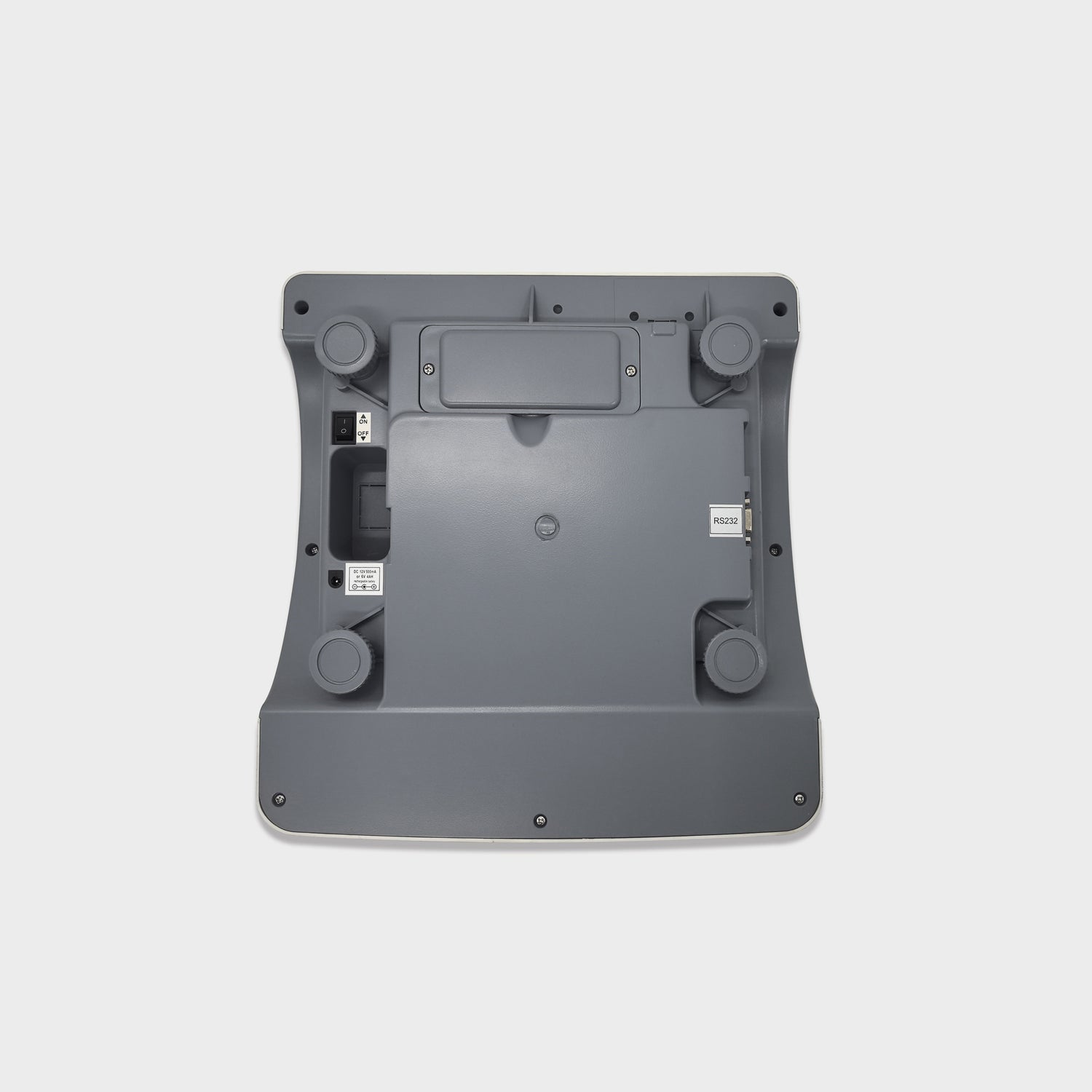

EHC-CF High-Precision Counting Scale / Digital Piece Counting Bench Scale / 60kg Capacity

The EHC-CF counting scale is designed with high precision load cell and reinforced construction, ensures a display resolution of up to 1/60,000. The spacious weighing platter accommodates large items or bulk quantities. From manufacturing, logistics, and warehouses, this counting scale is the ultimate tool for professionals who refuse to compromise on quality.Precision, strength, and reliability—all in one scale.


     Features

  • Durable ABS plastic housing, internal heavy-duty cast aluminum frame can support loads up to 60kg
  • Able to connect an external larger base for large volume counting requirements
  • Up to 250 conveniently accessible Product Look-Up (PLU) for rapid reference
  • Equipped with adjustable feet and leveling bubble for quick setup and stability
  • Functions: Weighing, Counting, Upper and Lower Count Limits, Accumulation, Weight Unit Conversion, Pre-Tare, Tare



     Dimensions



EHC-CF Counting Scale Dimensions - 355 x 370 x 133 mm

Specifications
  • Capacity / Division
    6 kg x 0.2 g / 12 lb x 0.0005 lb
    15 kg x 0.5 g / 30 lb x 0.001 lb
    30 kg x 1 g / 60 lb x 0.002 lb
    60 kg x 2 g / 120 lb x 0.005 lb

    6 kg x 0.1 g / 12 lb x 0.0002 lb
    15 kg x 0.2 g / 30 lb x 0.0005 lb
    30 kg x 0.5 g / 60 lb x 0.001 lb
    50 kg x 1 g / 100 lb x 0.002 lb
  • Units of Measure
    kg, g, lb
  • Display
    Three windows, 6 digits, 0.73" (18.5mm) high, 7 segments LCD display with white backlight
  • Power Supply
    12V 500mA adapter or 6V 4Ah
    lead-acid rechargeable battery
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C (14°F to 104°F)
  • Platform Size
    335 x 225 mm / 13.19" x 8.86"
  • Packing Information
    950 x 450 x 520 mm / 4pcs / ctn
    G.W.: 25 kg N.W.: 23 kg
  • Options
    RS232 cable, USB cable
