EH-MH Wheelchair Scale with Handrail / Assisted Medical Scale with BMI Calculation for Hospitals/Clinics/Home

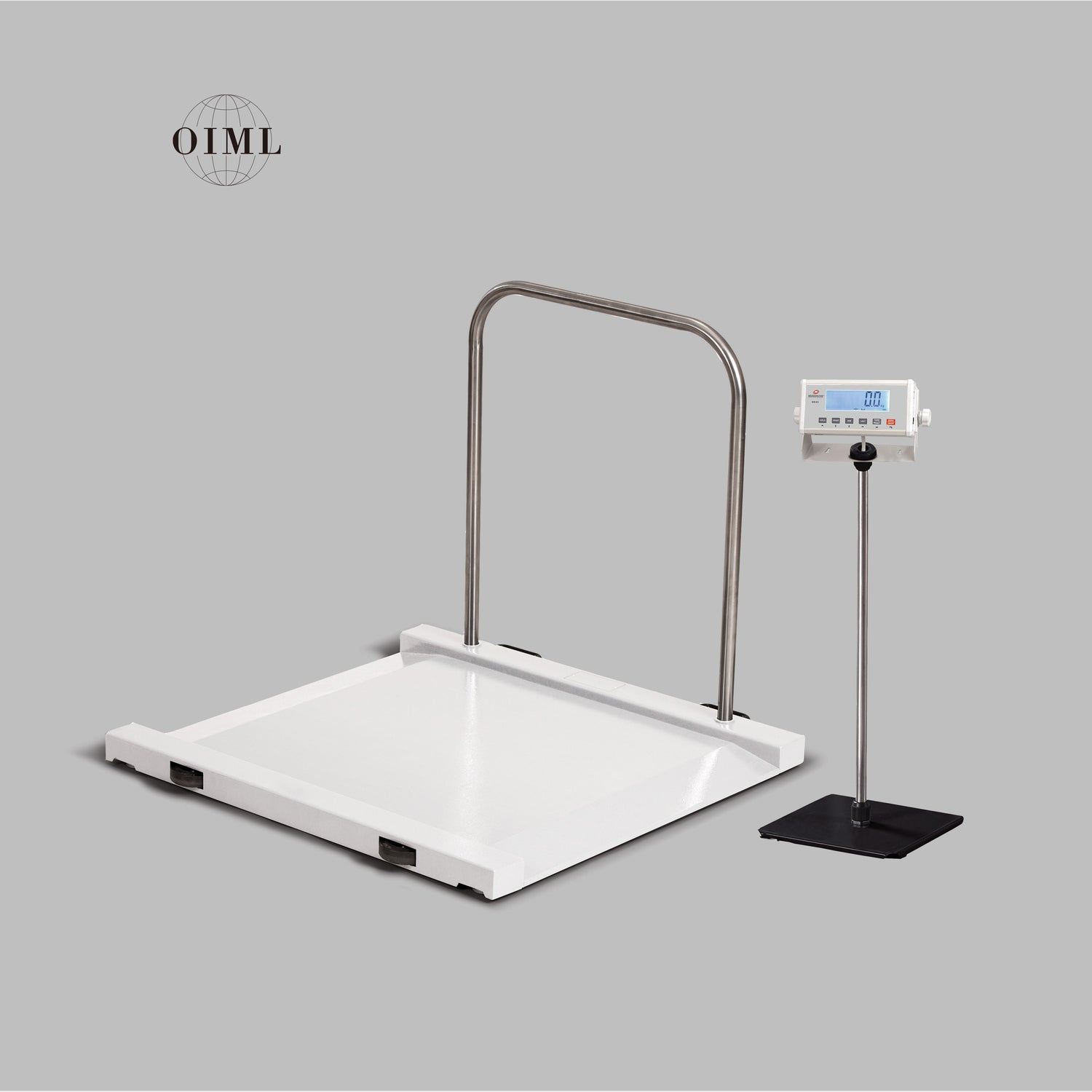

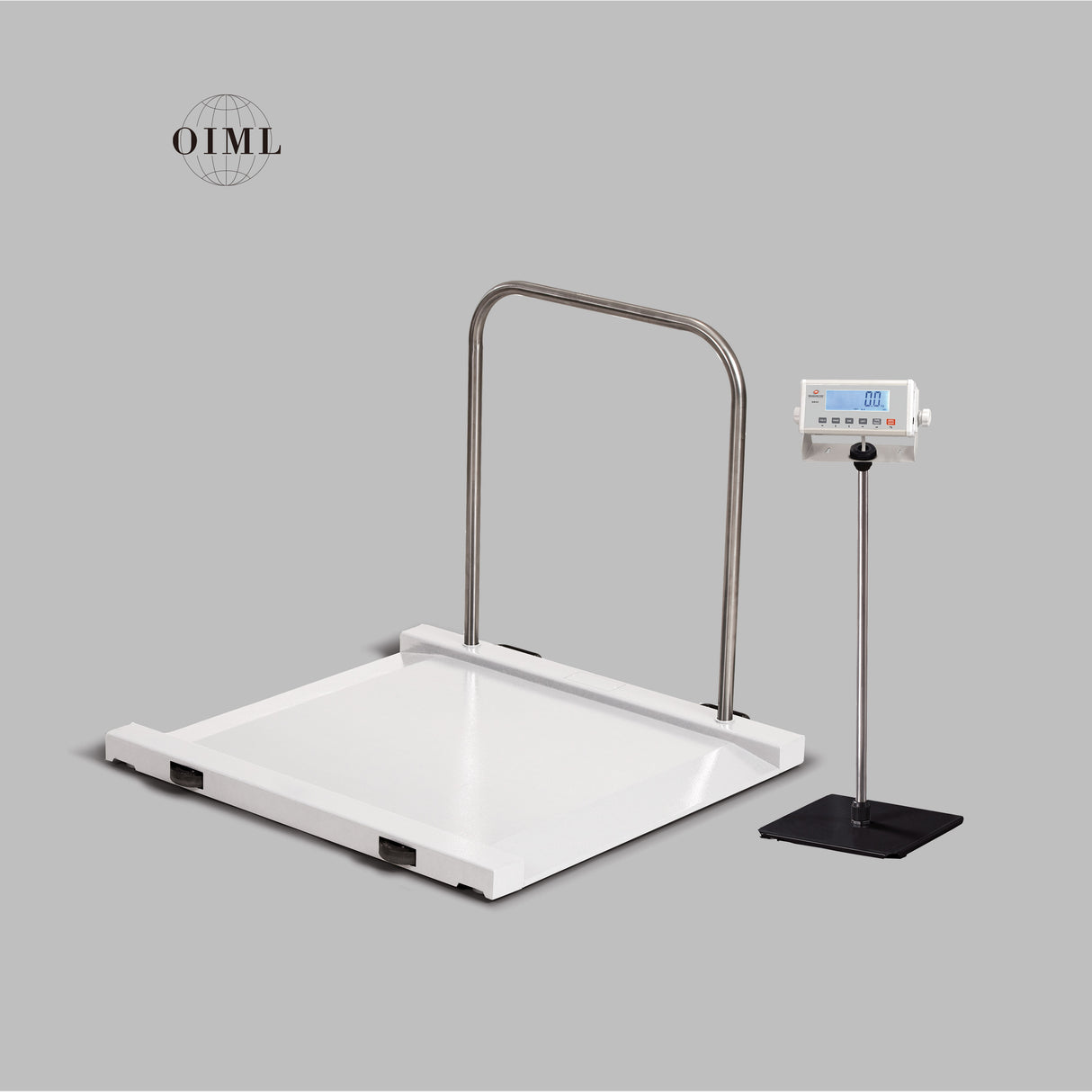

The EH-MH wheelchair handrail scale is designed to be used in hospitals, clinics, doctor’s offices, and even home use. It features a low-profile steel platform with built-in ramps, a stainless steel handrail and integral wheels and handles for easy mobility. The aluminum housing indicator provides functions like BMI calculation, Tare, Hold, GEO Calculation and Data Transmission. The optimal indicator floor stand allows to read the weight from a remote display.



     Features

  • Low profile heavy-duty steel platform with built-in ramps provides easy access of wheelchairs
  • Stable stainless steel handrail provides safety support to patients
  • Housed in aluminum housing indicator with 1” backlit LCD display for easy reading
  • Equipped with RS232 and USB interfaces
  • Adjustable feet with silicon pad for quick levelling and anti-skidding
  • Integrated transport castors and handles included for easy mobility
  • Functions: KG/LB conversion, BMI, Reweigh, Recall, Hold/Release, Pre-Tare, Tare, Zero, Auto Zero, Auto-Off, Parent/Child Weighing, Permanent Unit Disable, Audible/Mute Sound Option, GEO CAL



     Dimensions



EH-MH Wheelchair Scale Dimensions - 1050 x 972 x 70 mm

Specifications
  • Capacity / Division
    300 kg x 0.1 kg / 660 lb x 0.2 lb
    500 kg x 0.2 kg / 1000 lb x 0.5 lb
  • Units of Measure
    kg, lb, lb:oz
  • Display
    6 digits, 1" (25mm) high, 7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 4 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C ( 14°F to 104°F )
  • Platform Size
    1050 x 972 mm / 41.3" x 38.27 (with ramps)
  • Packing Information
    1170 x 1200 x 195 mm / 1pc / ctn
    G.W.: 58.8kg N.W.: 52kg
  • Approvals
    OIML, FDA, CE
  • Options
    RS232 cable, USB cable, Handrail, indicator floor stand

Product Details

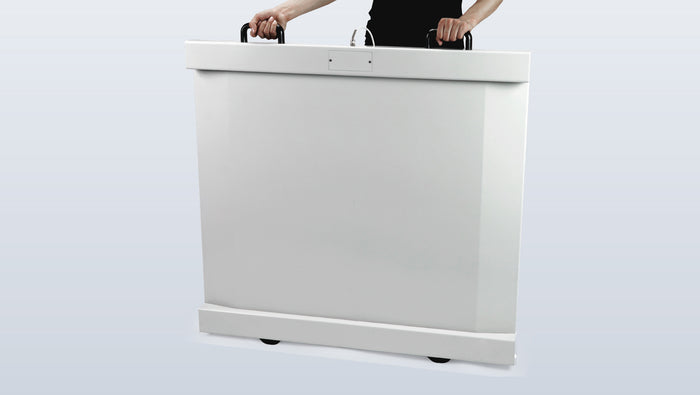

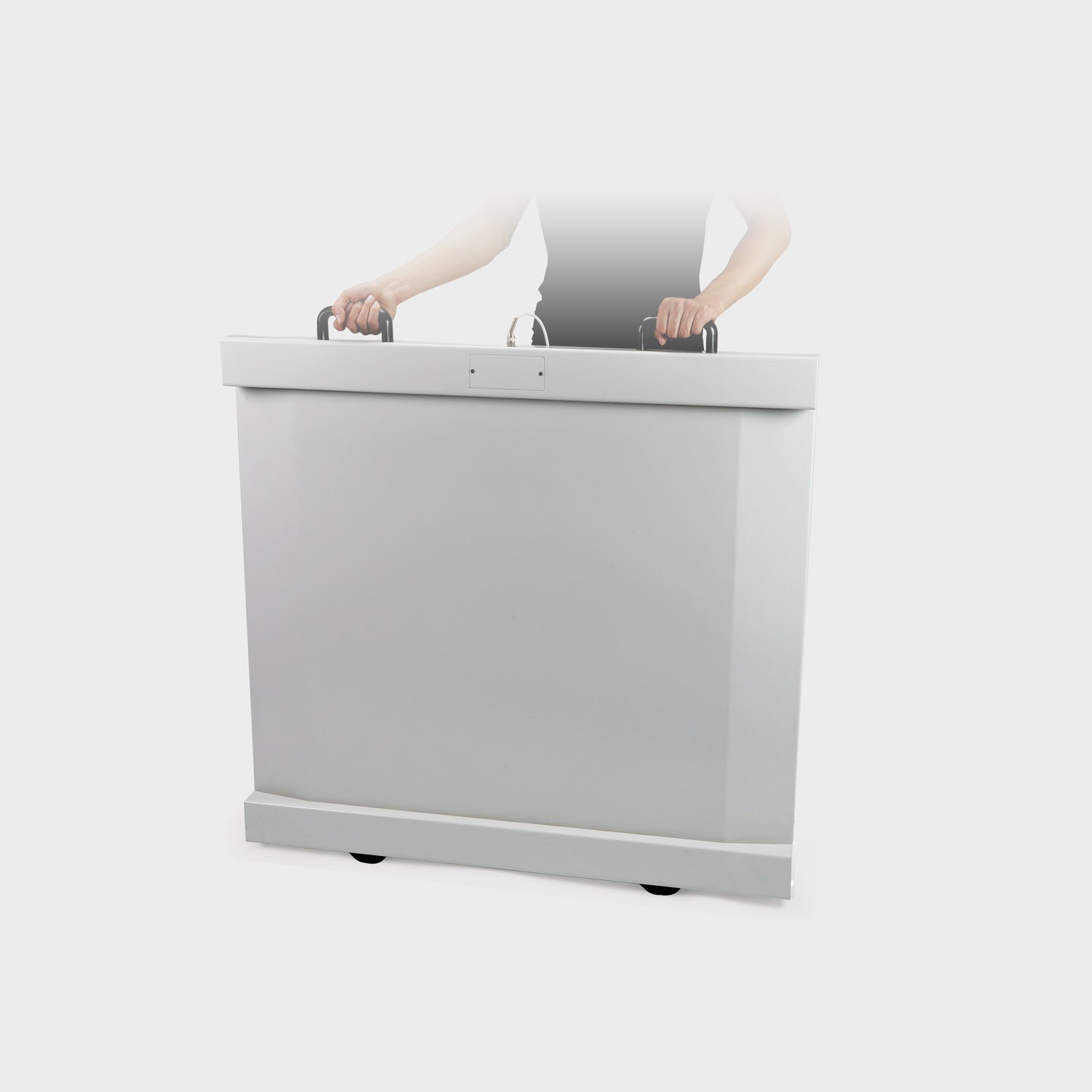

  • EH-MH wheelchair scale with integrated nylon handles and wheels for easy mobility in healthcare facilities
    • The integral nylon handles and wheels ensure the scale easily moveable, making it convenient for use in various locations within a healthcare facility.

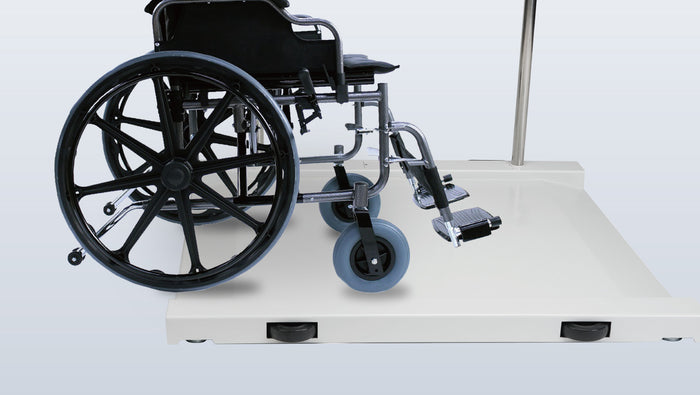

  • The low platform design makes it easy for wheelchairs to access and exit.
    • The low platform design makes it easy for wheelchairs to access and exit.

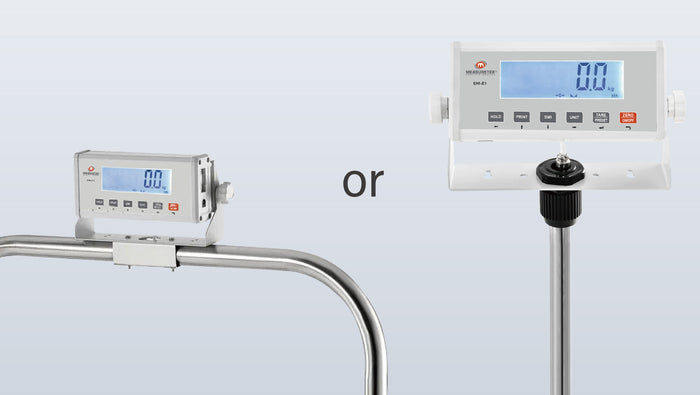

  • The indicator can be mounted on either the handrail or a floor stand
    • The indicator can be mounted on either the handrail or a floor stand
