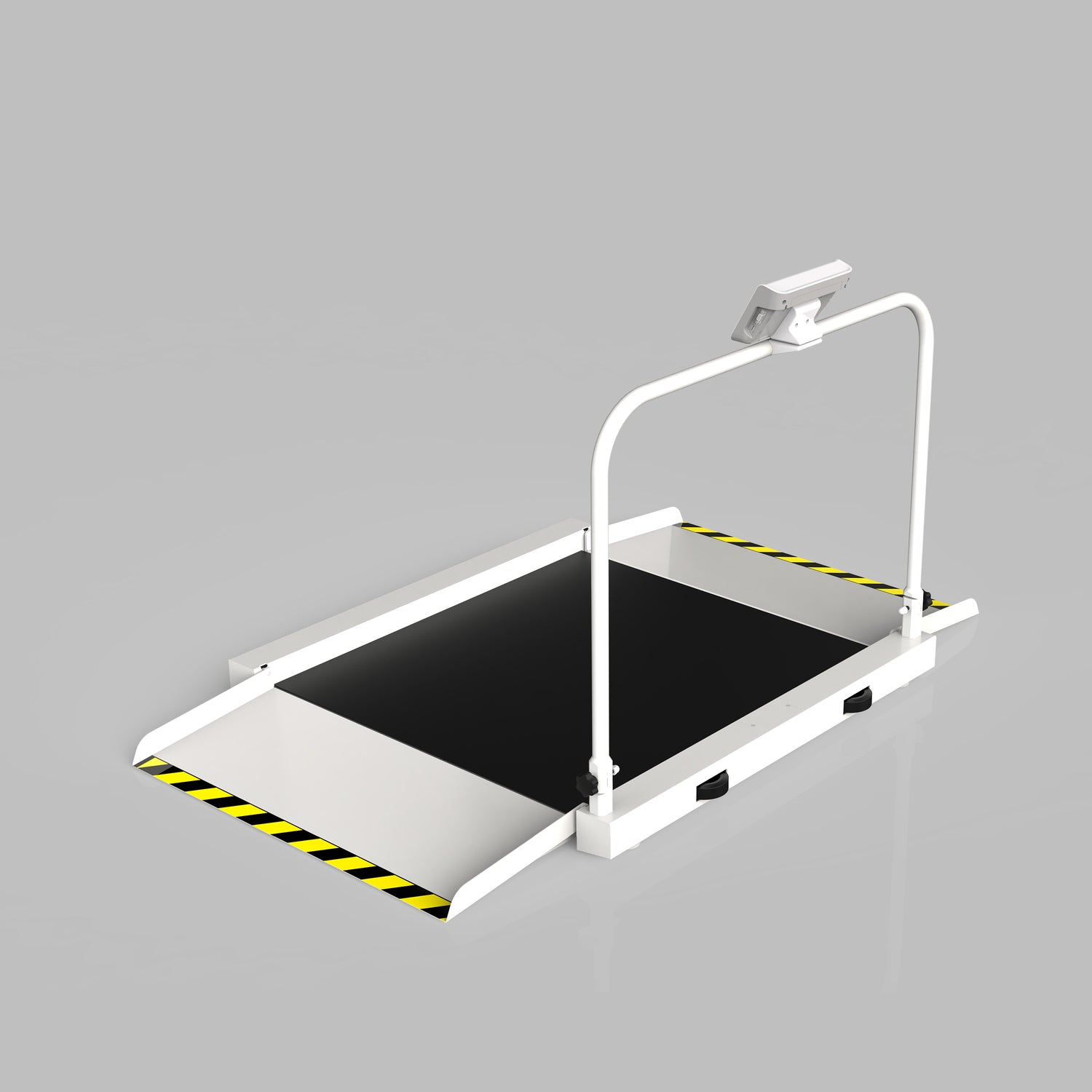

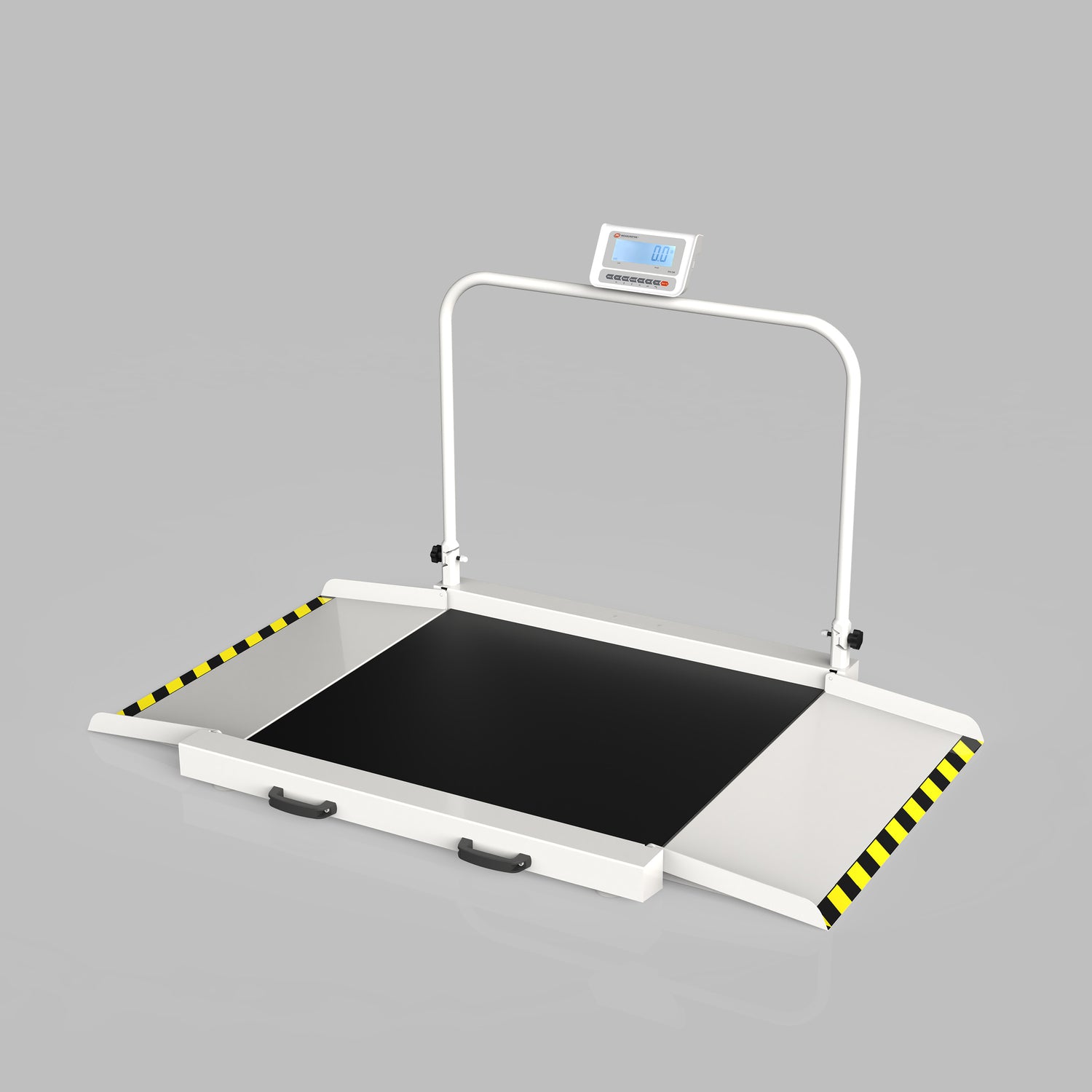

EH-WDA ADA-Compliant Wheelchair Scale with Detachable Ramps / Medical Scale

The EH-WDA ADA-Compliant wheelchair handrail scale is designed to comply with the latest MDE standards, idea to use in hospitals, clinics, doctor's offices, and even home use. It features a low-profile steel platform with detachable ramps, a foldable handrail and integral wheels and handles for easy assembly and mobility.


     Features



  • Housed in robust ABS enclosure indicator with large backlit LCD display for easy reading
  • The non-slip platform mat prevents the wheelchair from sliding
  • Built-in large wheels and handles for convenient portability and placement
  • Antimicrobial protection for safe use
  • Functions: LB / KG conversion, BMI Reweigh, Recall Hold/release, pre-tare, Tare, Zero, Auto zero, Auto-o , Parent / Child weighing, Permanent unit disable, Audible / Mute sound option, GEO CAL
  • 2”edge protection on platform
  • 2”edge protection on ramps
  • 1:8 running slope
  • Full platform handrail length



     Dimensions



Specifications
  • Capacity / Division
    1000 lb x 0.2 lb / 500 kg x 0.1 kg
  • Units of Measure
    kg, lb, lb:oz
  • Display
    6 ½ digits 1.5" (38mm) high, 7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 6 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C ( 14°F to 104°F )
  • Platform Size
    939 (W) x 1015 (L) mm /
    37" (W) x 40” (L)
  • Ramp Size
    915 x 387.4 mm / 36" x 15”
  • Packing Information
    1300 x 1150 x 420 mm / 1pc / crate
    G.W.: 86kg N.W.: 76kg
  • Approvals
    FDA, CE
  • Options
    RS232 cable, USB cable

Product Details

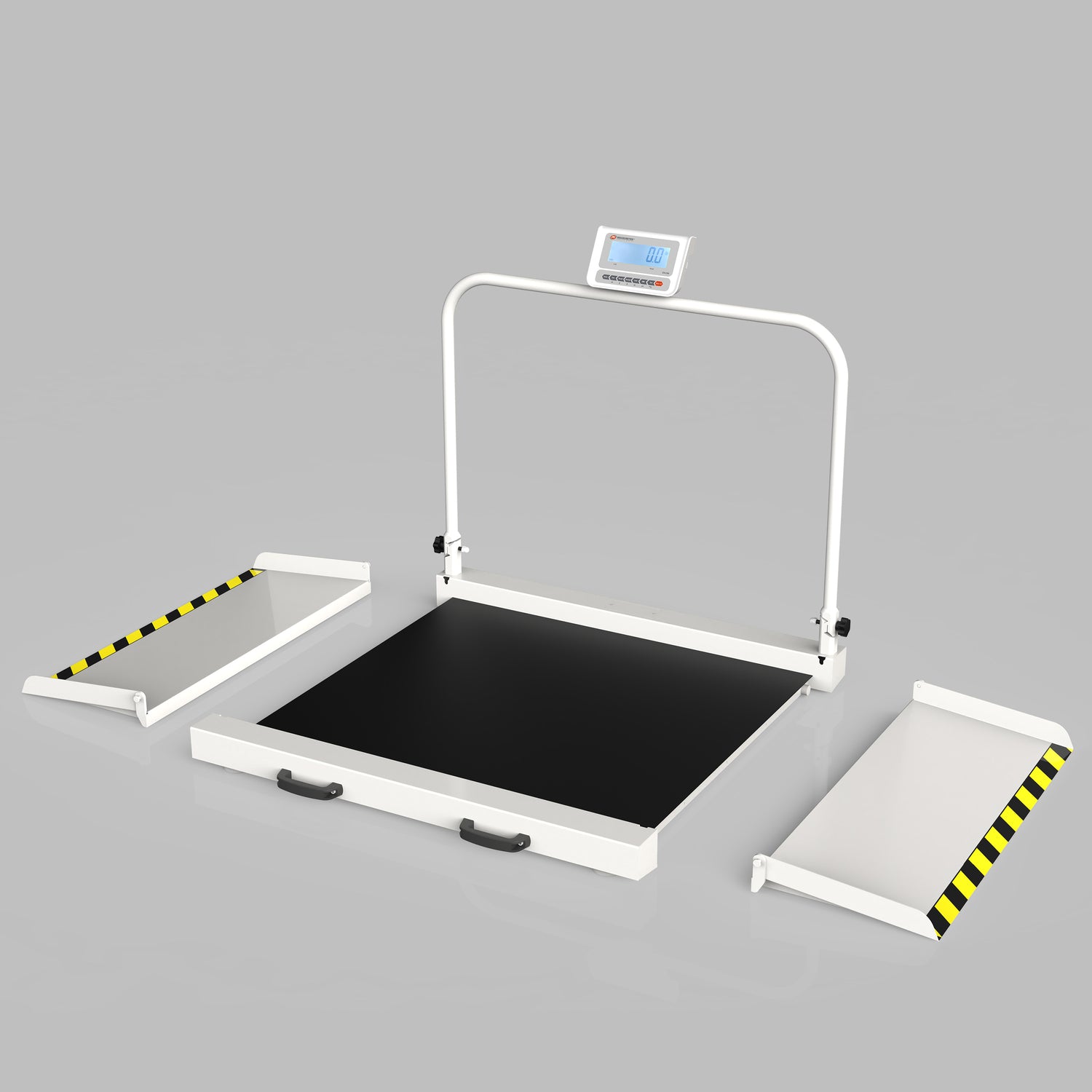

    • Detachable ramps allowing for easy passage through doorways.

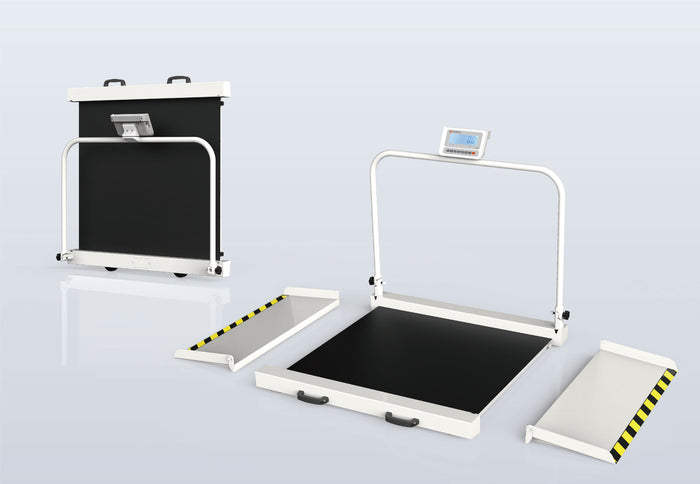

    • Foldable handrail for easy assembly and mobility.

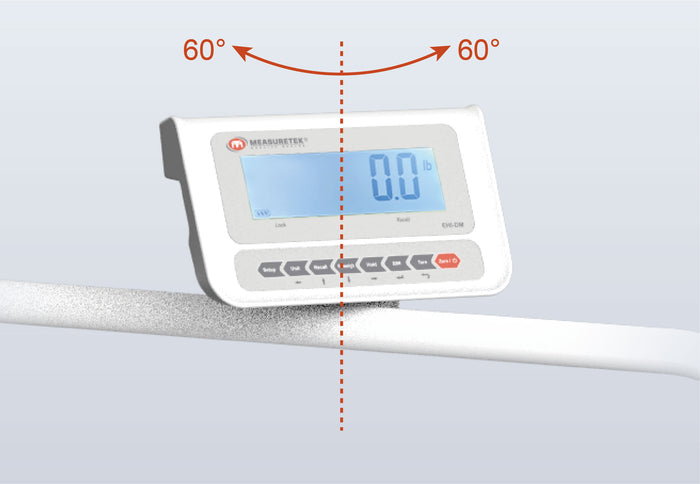

    • The indicator can be rotated 120° horizontally for convenient viewing of data by nursing staff.

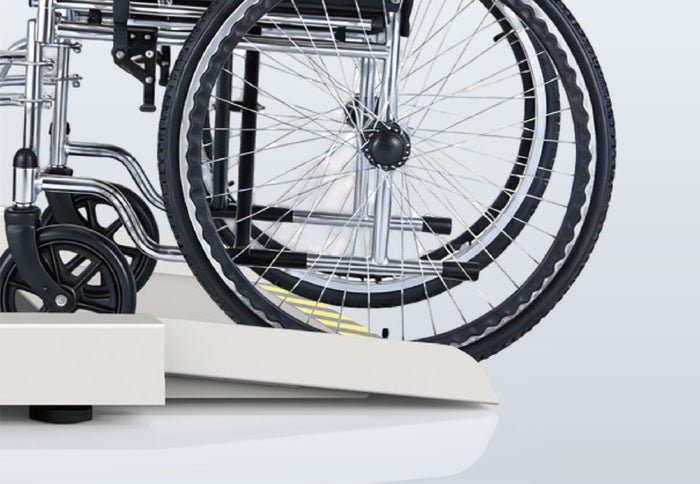

    • Ramps with low clearance of only 6.8mm/0.26" to the ground, allowing for a seamless wheelchair transfter onto the platform.
