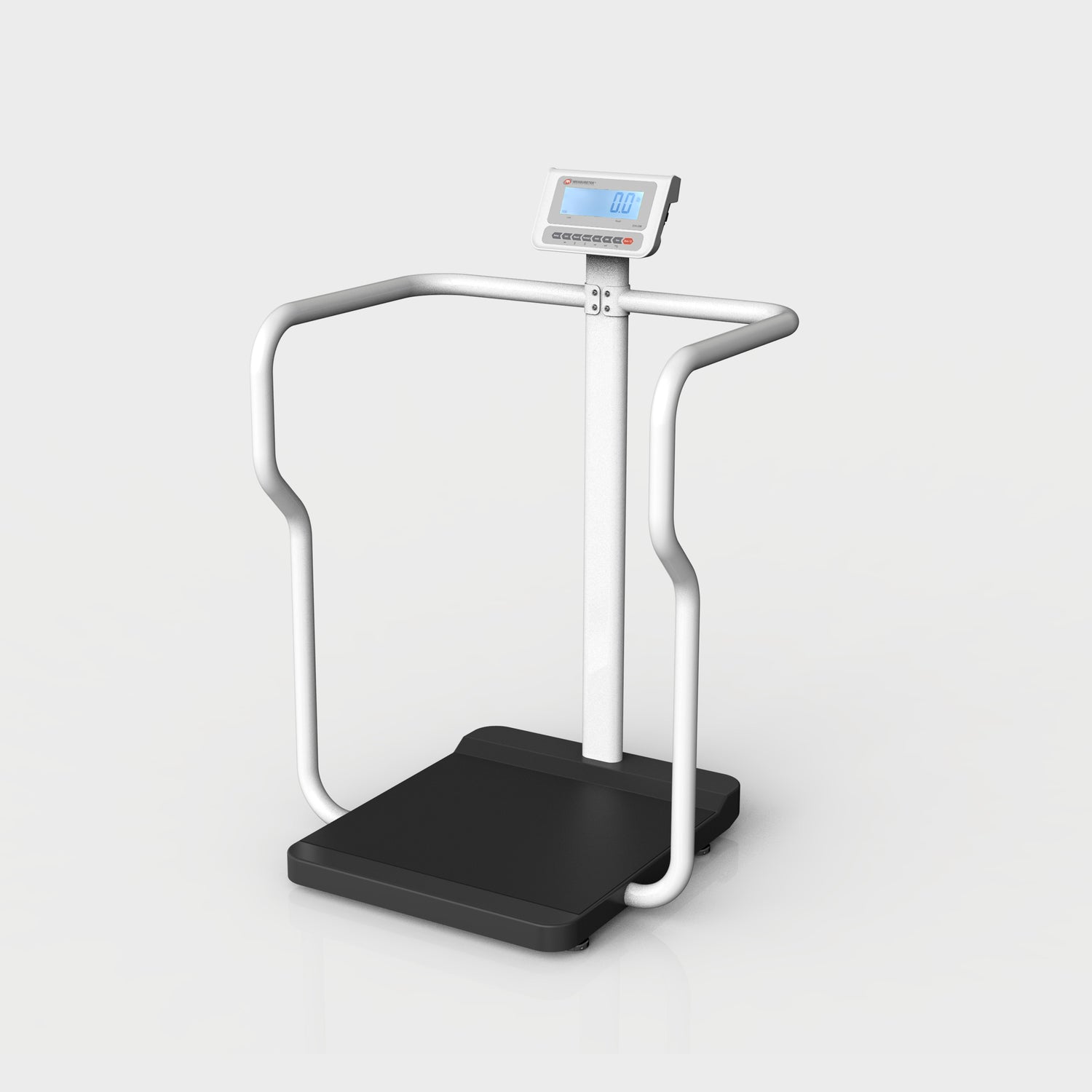

EH-HD Digital Handrail Scale / 660lb Medical Scale / Physician Scale


The EH-HD handrail scale is meticulously designed to provide enhanced support and safety for patients. Its large, low-profile platform ensures easy stepping for patients, while the motion weighing function guarantees accurate weight measurements even when the patient moves or holds onto the handrails. The swiveling display allows nurses to observe and record weight from multiple angles with ease.

To seamlessly integrate with electronic medical record (EMR) systems, the scale oers wireless connectivity and R232/USB interfaces, enabling efficient data transfer and patient record management. It is equipped with advanced features such as BMI calculation, tare, reweigh, recall, and hold function. Additionally, the built-in wheels make the scale easily movable, ensuring convenience for use across various locations within a healthcare facility.



     Features



  • Housed in robust ABS enclosure indicator and with large backlit LCD display for easy reading
  • With a BMI calculator
  • Sturdy steel base frame with robust non-slip plastic platform cover
  • Anchored steel handrail reduces the risk of falling and toppling
  • Built-in large mute rear wheels for convenient portability and placement
  • Antimicrobial protection for safe use
  • Functions: KG/LB conversion, BMI, Reweigh, Recall, Hold / Release, Pre-Tare, Tare, Zero, Auto Zero, Auto-Off, Parent / Child Weighing, Permanent Unit Disable, Audible / Mute Sound Option, GEO CAL



     Dimensions



EH-HD Handrail Scale Dimensions - 788 x 709 x 1130 mm

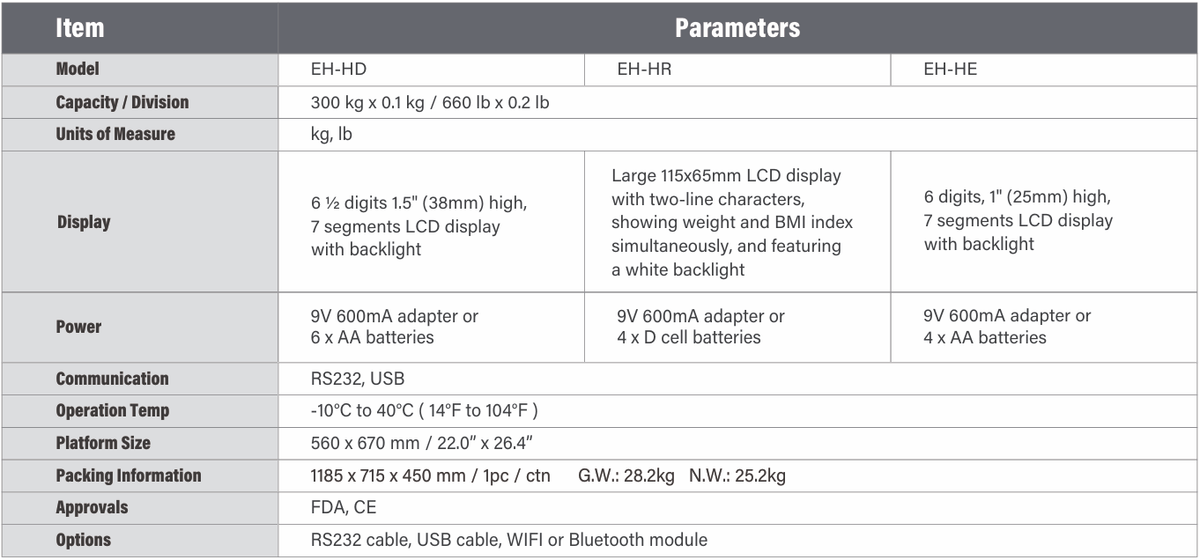

Specifications

  • Capacity / Division
    300 kg x 0.1 kg / 660 lb x 0.2 lb
  • Units of Measure
    kg, lb
  • Display
    6 ½ digits 1.5" (38mm) high, 7 segments LCD display with backlight
  • Power Supply
    9V 600mA adapter or
    6 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C ( 14°F to 104°F )
  • Platform Size
    560 x 670 mm / 22.0” x 26.4”
  • Packing Information
    1185 x 715 x 450 mm / 1pc / ctn
    G.W.: 28.2kg N.W.: 25.2kg
  • Approvals
    FDA, CE
  • Options
    RS232 cable, USB cable,
    WIFI or Bluetooth module

Product Details

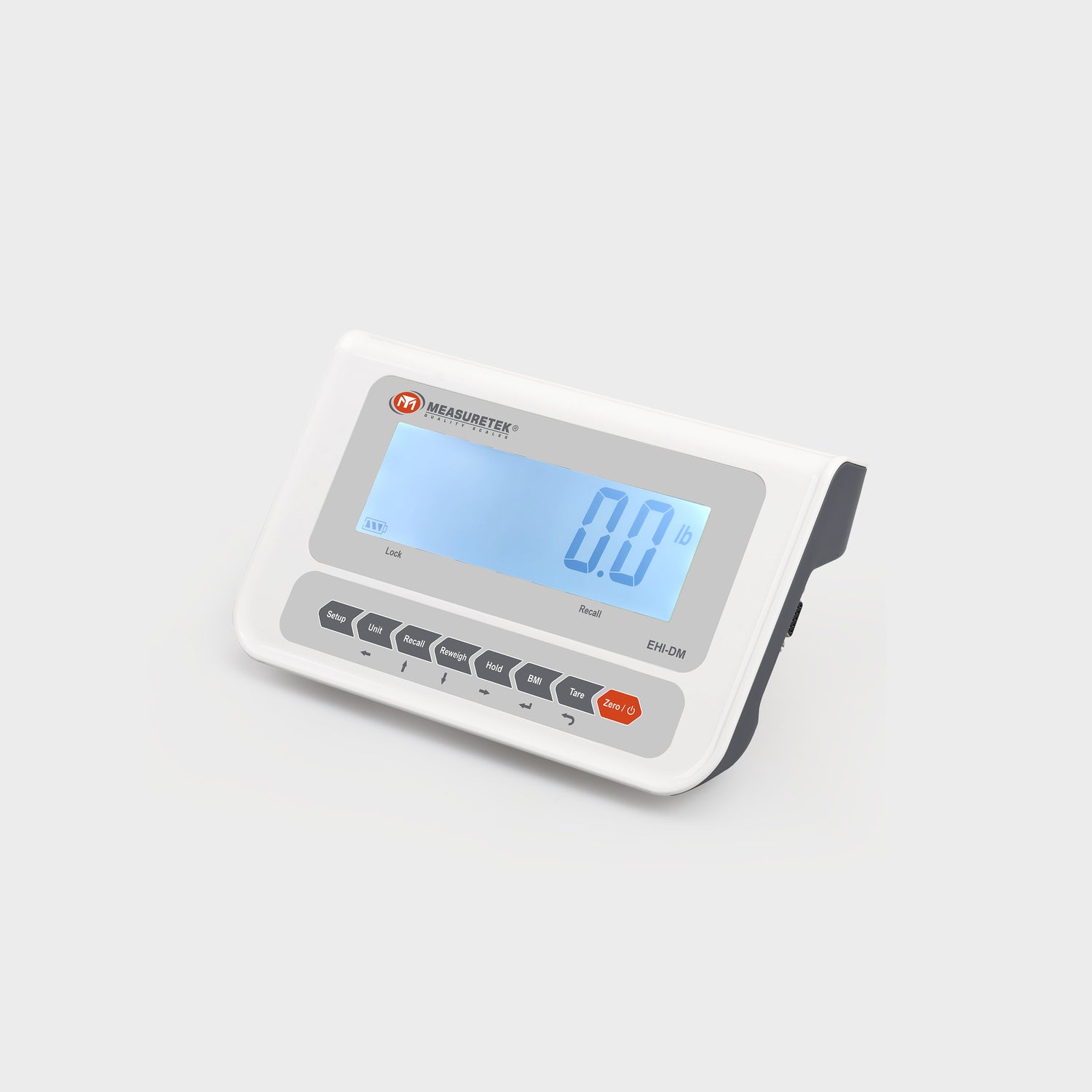

  • Rotatable 120° indicator on EH-HD handrail scale for easy viewing by nursing staff
    • The indicator can be rotated 120° horizontally for convenient viewing of data by nursing staff.
  • Large non-slip and sturdy base platform for safe weighing
    • Safe weighing due to large non-slip and sturdy base platform
  • Easy to transport by built-in large mute rear wheels
    • Easy to transport by built-in large mute rear wheels
