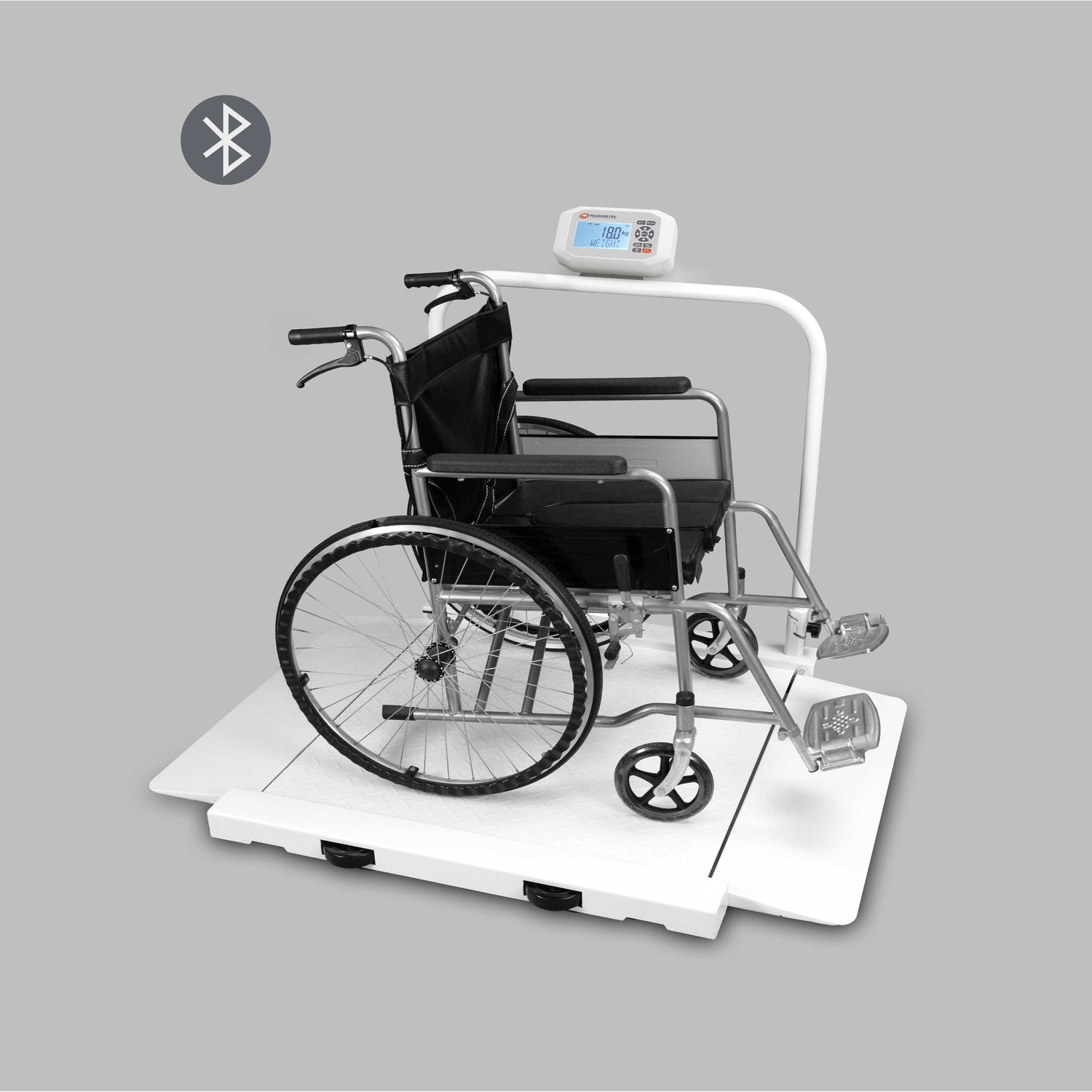

EH-WRW Wirelss Foldable Wheelchair Scale with Ramps / Assisted Medical Scales with Handrails

The EH-WRW wireless wheelchair scale is a versatile and user-friendly medical weighing solution designed for modern healthcare facilities. Its sturdy, low-profile platform with non-skid surfaces accommodates most wheelchairs, while firmly anchored handrails and two auto-lifting ramps, both of which can be folded for easy transport or storage, ensure safety and portability. The scale is compatible with the latest EHI-R indicator, enabling wireless communication between the platform and the indicator for a sleek, cable-free design and simplified installation.

Utilizing Bluetooth technology, this scale integrates with hospital medical systems, allowing for wireless data transmission and efficient patient record management. Advanced features such as BMI calculation, tare function, reweigh, recall, and hold functionality enhance its precision and usability. The EH-WRW wireless wheelchair scale prioritizes both patient safety and streamlined workflows, delivering reliable performance in a compact, user-friendly design


     Features



  • Bluetooth connection from the platform to the indicator
  • Housed in robust ABS enclosure indicator and with large backlit LCD display
  • With a BMI calculator
  • The non-slip steel platform prevents the wheelchair from sliding
  • Built-in large mute wheels and handles for convenient portability and placement
  • Antimicrobial protection for safe us
  • Functions: LB / KG conversion, BMI, Reweigh, Recall, Hold/release, Pre-Tare, Tare, Zero, Auto zero, Auto-off, Parent / Child weighing, Permanent unit disable, Audible / Mute sound option, GEO CAL



     Dimensions



EH-WRW Wirelss Wheelchair Scale Dimensions

Specifications
  • Capacity / Division
    1000 lb x 0.2 lb / 500 kg x 0.1 kg
  • Units of Measure
    kg, lb
  • Display
    Large 115 x 65 mm LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 4 x D cell batteries
  • Communication
    RS232, USB, wireless
  • Platform Size
    800 x 800 x 43 mm / 31.5” x 31.5” x 1.7”
  • Ramp Size
    790 x 230 mm / 31.1” x 9.1”
  • Packing Information
    1195 x 1085 x 260 mm / 1pc / ctn
    G.W.: 41.5kg N.W.: 38.5kg
  • Approvals
    FDA, CE
  • Options
    RS232 cable, USB cable

Product Details

  • 120° rotatable indicator on EH-WD wheelchair scale allows flexible viewing angles for nurses and caregivers
    • The indicator can be rotated 120° horizontally for convenient viewing of data by nursing staff.
  • Foldable wheelchair scale handrail with slope protection for safe patient transfers
    • Foldable handrail and ramps with slope protection, designed for easy mobility and storage.
  • The ramp can lift off the ground when a wheelchair is being pushed onto the platform, ensuring smooth and effortless movement of the wheelchair.
    • Thanks to its unique design, the ramp can lift off the ground when a wheelchair is being pushed onto the platform. This ensures smooth and effortless movement of the wheelchair.
