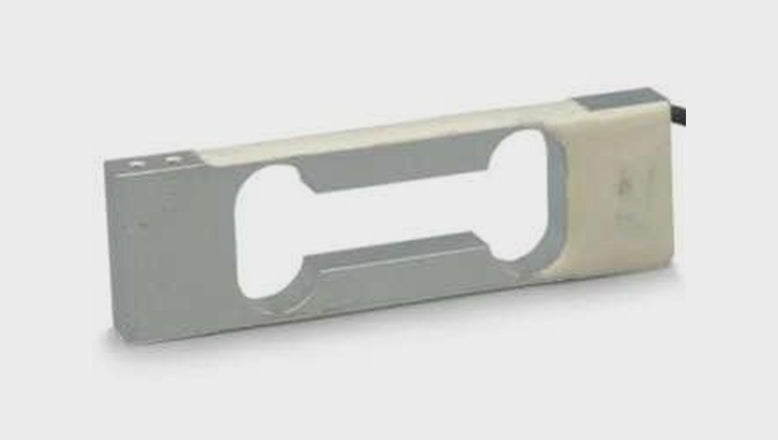

EH-110-1A Precision Load Cell

Features
  • Aluminum Material
  • Surface Anodized Treatment
  • Silicon Rubber Sealing
  • Suitable for Electronic Scales
  • Electronic Weighing System



Dimension（mm）



Electronic connection

Specifications
  • Capacity
    0.3kg / 0.6kg / 1.2kg / 1.5kg / 2kg
  • Sensitivity
    1.1±0.2mV/V
  • Accuracy
    ±0.02%FS
  • Creep（15min)
    ±0.016%FS
  • Input Resistance
    406±20Ω
  • Output Resistance
    350±5Ω
  • Insulation Resistance
    ≥5000MΩ (100VDC)
  • Zero Balance
    ≤±2%FS
  • Temperature Effects on Span
    ≤0.02%FS/10℃
  • Temperature Effect on Zero
    ≤0.02%FS/10℃
  • Rated Temperature Range
    -10℃～+60℃
  • Operating Temperature Range
    -20℃～+80℃
  • Proposed Excitation Voltage
    6V～12V
  • Allowed Excitation Voltage
    18V
  • Safe Overload
    120%FS
  • Ultimate Overload
    150%FS
  • Protection
    IP65
  • Cable Specification
    Ф3mm
  • Cable Length
    0.4m
  • Material
    Aluminum Alloy
