EH-AMC Large Animal Scale / Digital Floor Scale / Heavy Duty Veterinary Scale / Livestock Scale

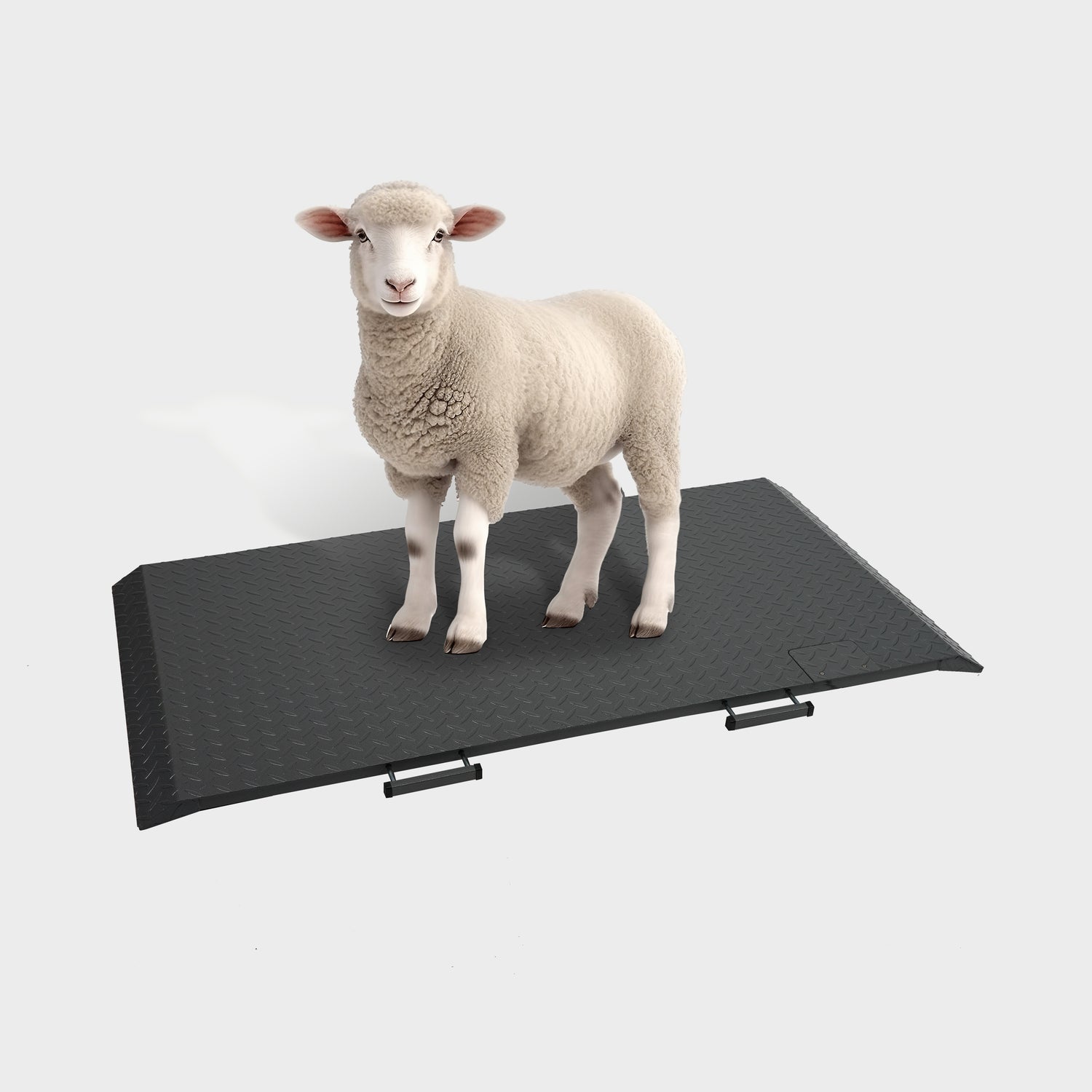

The EH-AMC animal / floor scale is designed with low profile steel platform with tread plate surface and high accuracy load cells, ideal for weighing larger pets, animals and goods. The built-in ramped ends make it easy for animals to walk on and off. The two attached handles make it easy to be moved.



     Features



  • Powder coated checked steel platform with two built-in ramps for anti-slip and easy access
  • Low profile platform with 4 aluminum load cells, easy for animals to access
  • Two sturdy handles for easy and safe movement
  • Equipped with IP65 waterproof junction boxes for convenient maintenance

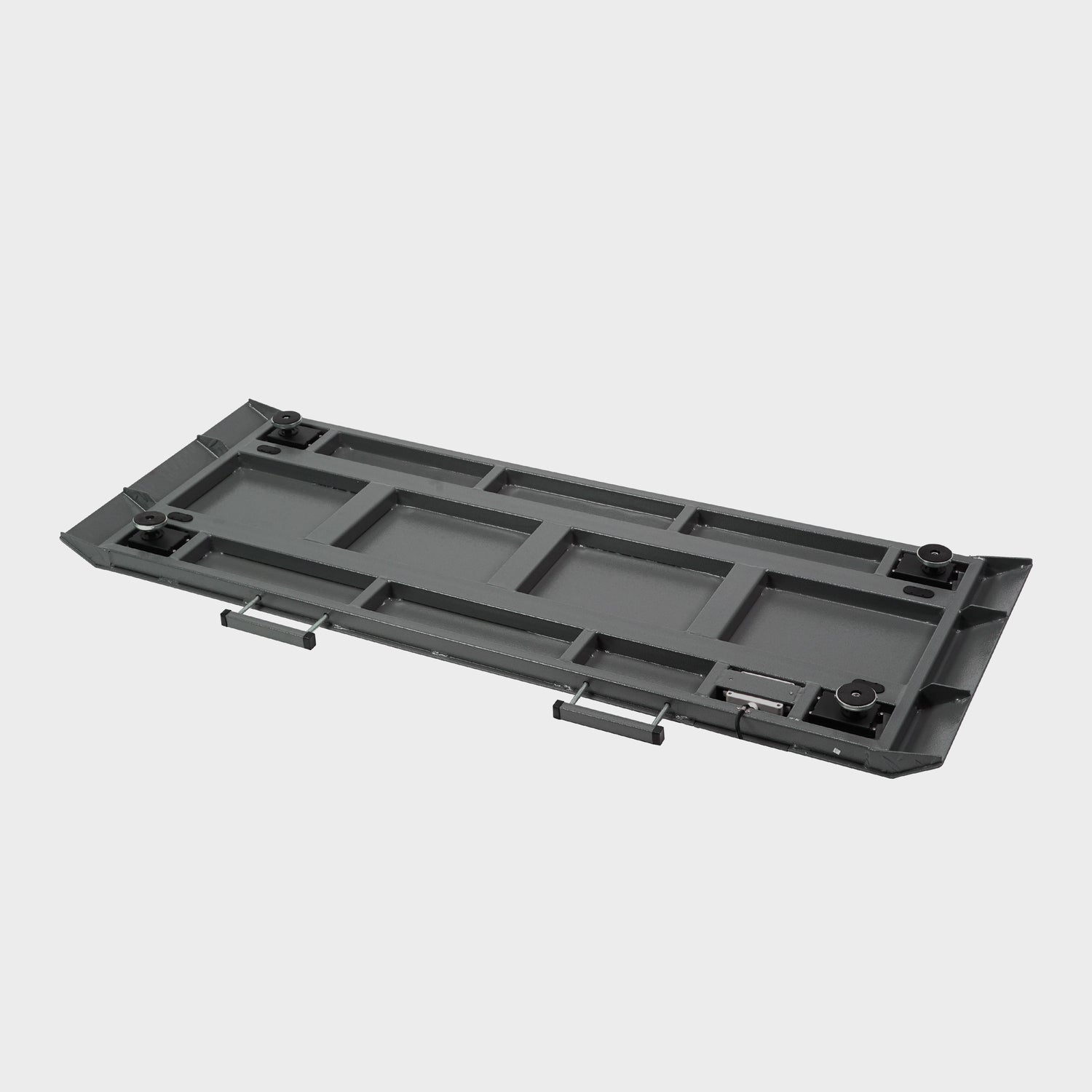

  • Four adjustable feet ensuring stability

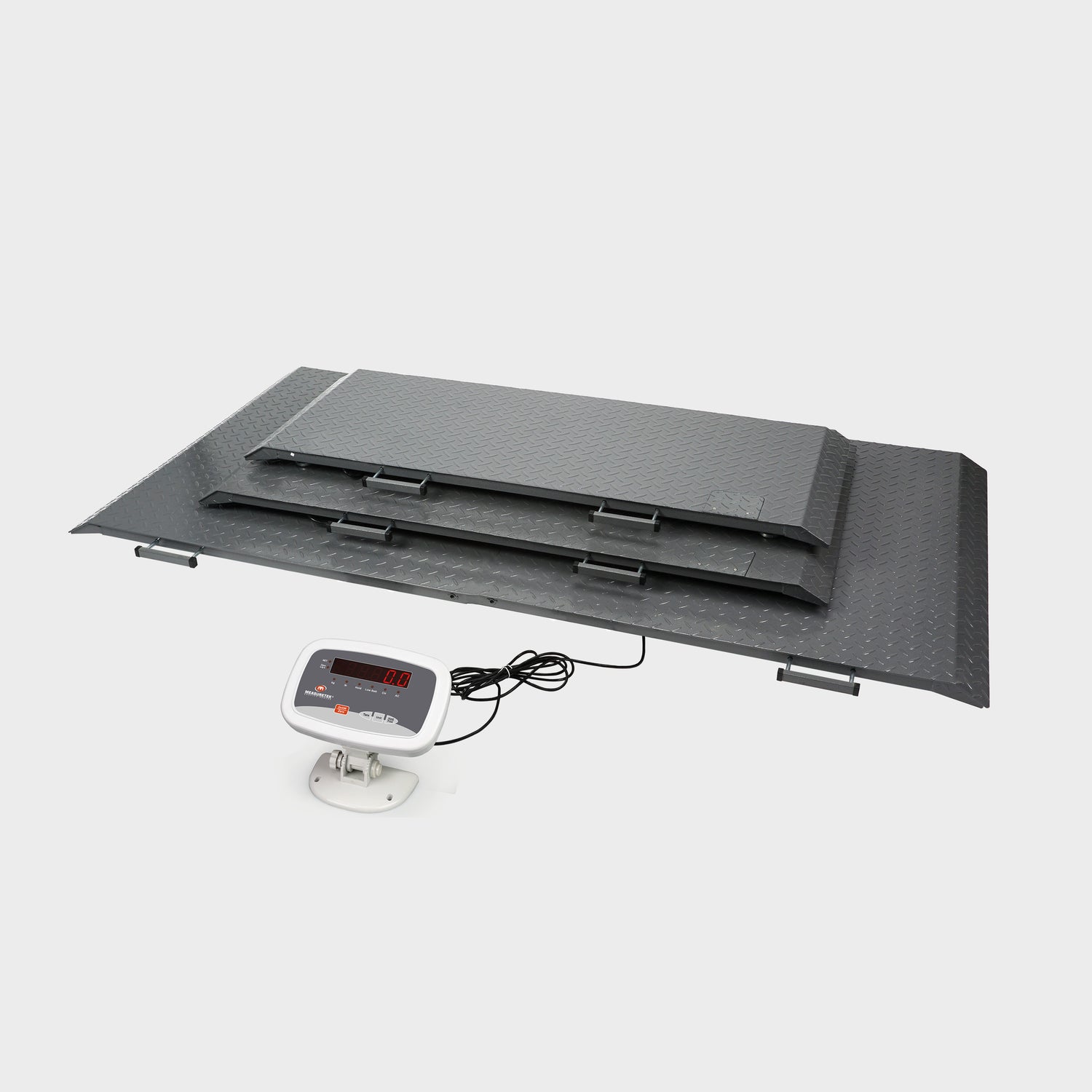

  • Aluminum housing indicator comes with wall / table mounting bracket LCD display with white backlight
  • Functions: Weighing, Animal Dynamic Weighing, Check Weighing, Weight Unit Conversion, Hold



     Dimensions



EH-AMC Animal Scale Dimensions

L (mm) W (mm) H (mm)
EH-AMC-500 510/20" 1400/55" 64/2.5"
EH-AMC-1000 762/30" 1497/59" 64/2.5"

Specifications

  • Capacity / Division
    500 kg x 0.2 kg / 1000 lb x 0.5 lb
    1000 kg x 0.5 kg / 2000 lb x 1 lb
  • Units of Measure
    kg, lb, lb:oz, g, oz, pcs, %
  • Display
    6 ½ digits 1" (25mm) high, 7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 4 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C ( 14°F to 104°F )
  • Platform Size
    510 x 1400 mm / 20" x 55"
    762 x 1497 mm / 30" x 59"
  • Packing Information
    1540 x 650 x 170 mm / 1pc / ctn
    G.W.: 35 kg N.W.: 33.5 kg

    1620 x 910 x 170 mm / 1pc / ctn
    G.W.: 48 kg N.W.: 46 kg
  • Options
    RS232 cable, USB cable, Indicator floor stand, Rubber mat, Cage
