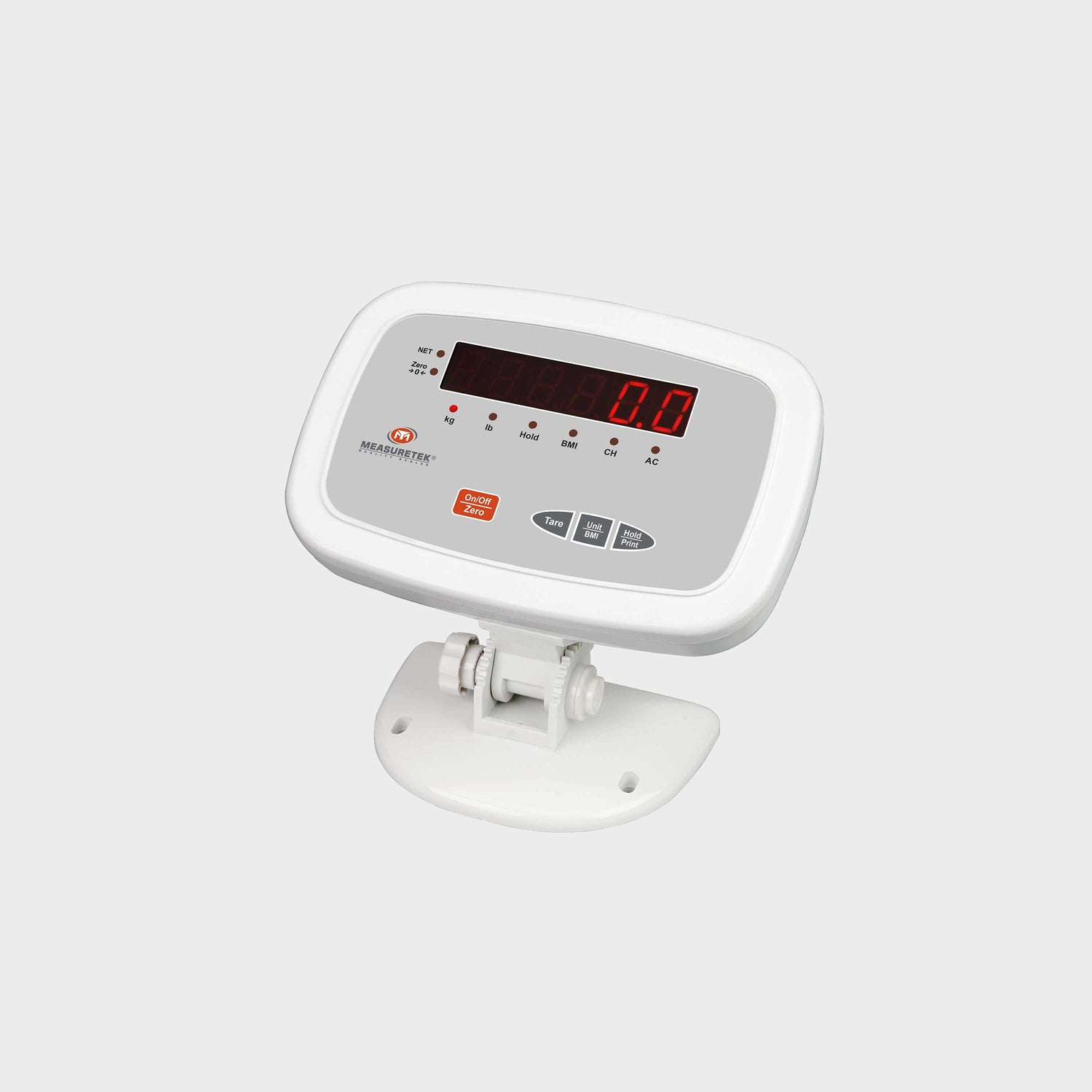

EHI-CW Durable Weighing Indicator / Scale Controller with Adjustable Brightness LED Display for Medical Use

The EHI-CW indicator is a durably structured weighing indicator with display resolution up to 1/100,000, able to be equipped with various scales in a wide range of applications, such as livestock, industrial, shipping & receiving and medical use. The built-in rechargeable lead-acid battery allows it to be used in a field without wall outlet.


     Features

  • Rugged ABS housing with a desk mounting bracket
  • Easy-to-read LCD display with white backlight or red LED display
  • LED version with four keys: ON/ZERO, TARE, UNIT, HOLD/PRINT
  • Equipped with RS232 and USB interfaces for linking to PC or printer
  • Functions: Weighing, BMI, Weight Unit Conversion, Tare, Hold, Auto-Zero, Auto-Off



     Dimensions

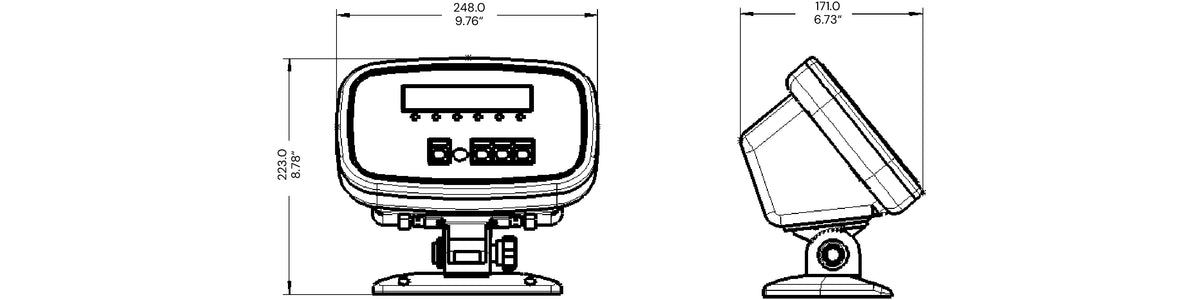

EHI-CW Weighing Indicator Dimensions - 248 x 223 x 171 mm

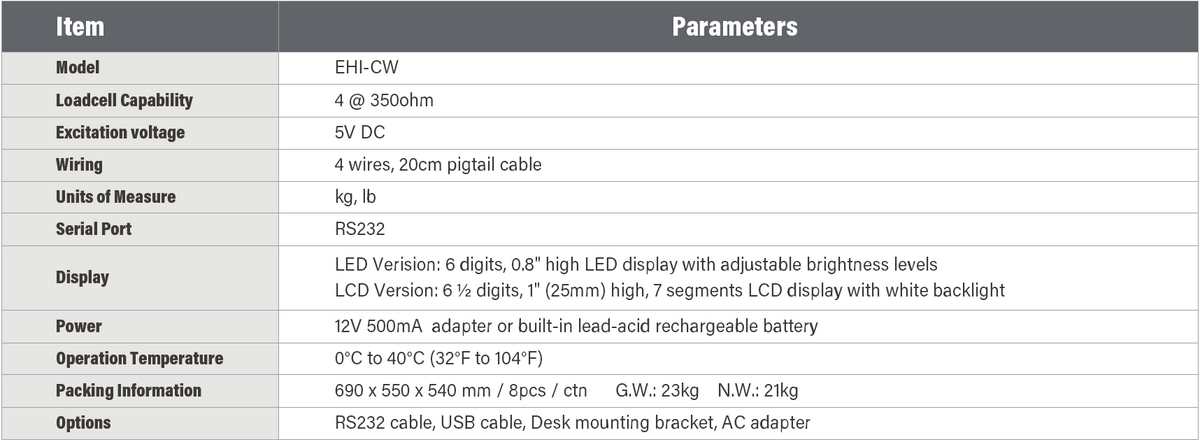

Specifications
  • Loadcell Capability
    4 @ 350ohm
  • Excitation voltage
    5V DC
  • Wiring
    4 wires, 20cm pigtail cable
  • Units of Measure
    kg, lb
  • Display
    6 digits, 0.8" high LED display with adjustable brightness levels
  • Power Supply
    12V 500mA adapter or built-in lead-acid rechargeable battery
  • Communication
    RS232
  • Operating Temp
    0°C to 40°C (32°F to 104°F)
  • Packing Information
    690 x 550 x 540 mm / 8pcs / ctn G.W.: 23kg N.W.: 21kg
  • Options
    RS232 cable, USB cable, AC adapter,
    Desk mounting bracket
