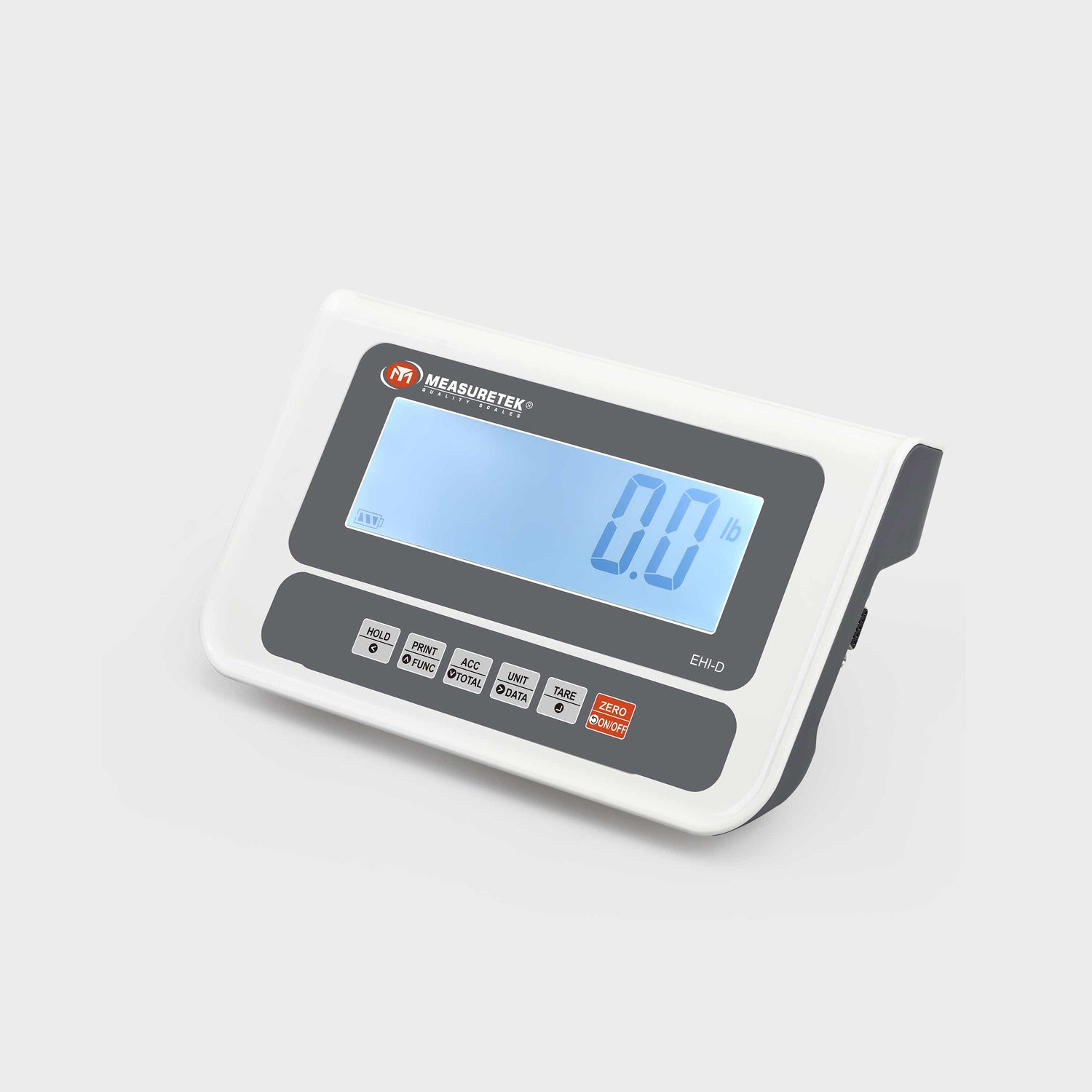

EHI-D Industrial Weighing Indicator / High-Precision Scale Controller / Large 38mm LCD Display

The EHI-D weighing indicator comes with a robust and stylish look, programmed in two versions – Industrial version and Medical version. The indicator can be used with many scales in a wide range of applications, such as medical, industrial, shipping, warehouse and livestock use. The large 1.5”/38mm digit high LCD display is easy to see from a glance which allows the most hassle-free reading for users.



     Features



  • Rugged ABS plastic housing with built-in wall mounting holes and desk mounting metal bracket
  • Easy-to-read 1.5”/38mm high digit LCD display with white backlight
  • Equipped with RS232 and USB interfaces for linking to a PC or printer
  • Easy-to-use with six keys: ZERO/ON/OFF, TARE, UNIT/DATA, ACC/TOTAL, PRINT/FUNC,  HOLD
  • Functions: Weighing, Counting, Check Weighing, Percent Weighing, Accumulation, Weight Unit Conversion, Pre-Tare, Tare, Hold, GEO CAL, Auto-Off



     Dimensions



EHI-D Weighing Indicator Dimensions - 244.5 x 170.3 x 62.1 mm

Specifications
  • Units of Measure
    kg, lb, lb:oz, pcs, %
  • Display
    6 ½ digits 1.5" (38mm) high, 7 segments display with white backlight
  • Power Supply
    9V 600mA adapter or 6 x AA batteries
  • Operating Temp
    -10°C to 40°C (14°F to 104°F)
  • Packing Information
    510 x 410 x 260 mm / 10 pcs / ctn
    G.W.: 14kg N.W.: 13kg
  • Options
    RS232 cable, USB cable, AC adaper,
    WIFI or Bluetooth wireless module
