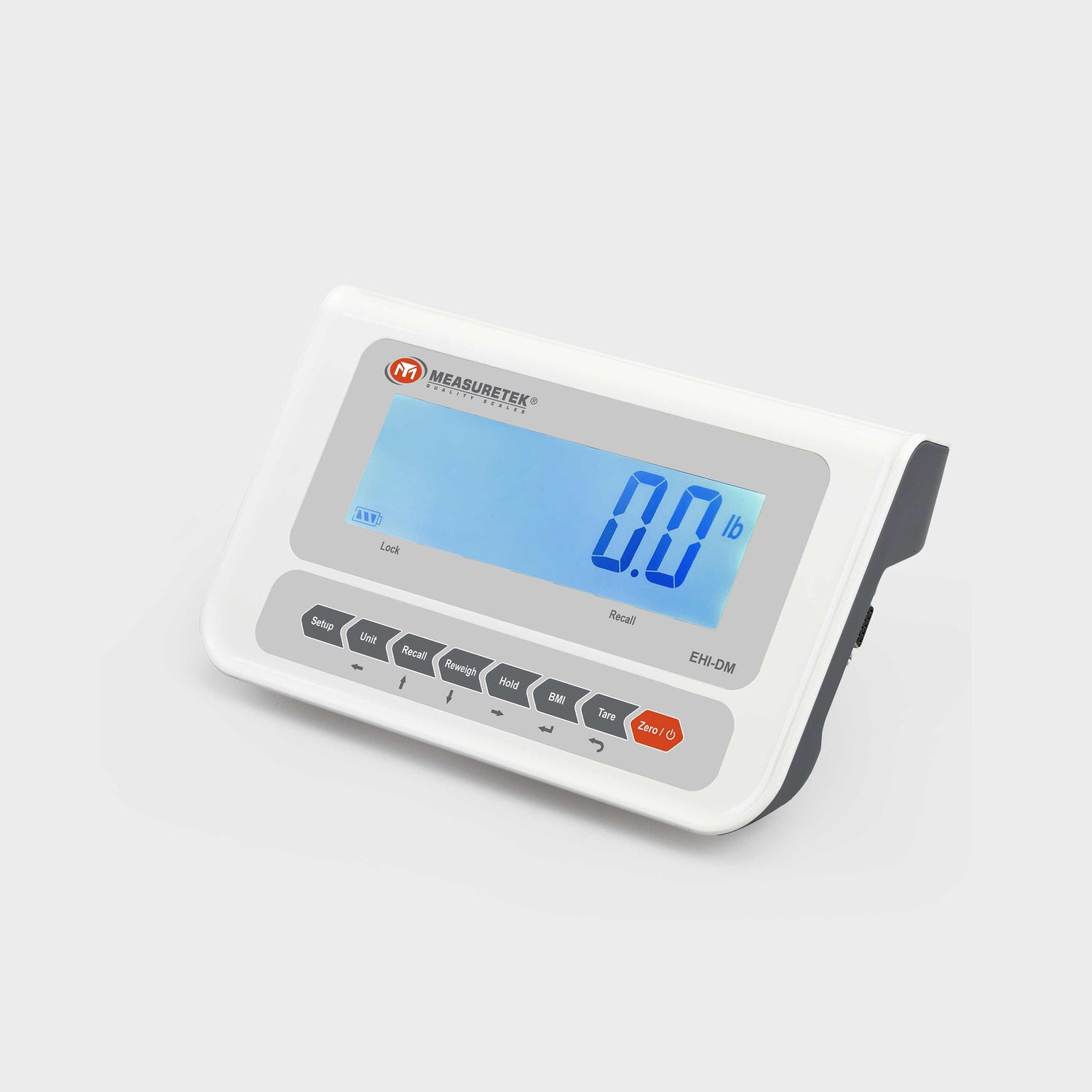

EHI-DM Medical Weighing Indicator / High-Precision Scale Controller with BMI Function & Large LCD Display


The EHI-DM weighing indicator is designed with a streamlined and stylish look and programmed with multiple functions, it’s a perfect solution for any medical applications. The indicator can be mounted on a variety of places such as the vertical pillars, cross bar, desks or walls. It offers the best flexibility if you are looking for an in-style and large display weighing indicator.



     Features



  • Rugged ABS plastic housing
  • With brackets for mounting on vertical pillar, cross bar, desk and wall.
  • Easy-to-see 1.5”/38mm high digit LCD display with white backlight
  • Equipped with RS232 and USB interfaces for linking to a PC or printer
  • Functions: BMI, Reweigh, Recall, Hold/release, Pre-tare, LB / KG conversion, Tare, Zero, Auto zero, Auto-off time setting, Parent / Child weighing, Permanent unit disable, Audible / Mute sound option



     Dimensions



EHI-D Weighing Indicator Dimensions - 244.5 x 170.3 x 62.1 mm

Specifications

  • Loadcell Capability
    4 @ 350ohm
  • Excitation voltage
    5V DC
  • Wiring
    7 wires, 20cm pigtail cable
  • Units of Measure
    kg, lb, lb:oz, pcs, %
  • Display
    6 ½ digits 1.5" (38mm) high, 7 segments display with white backlight
  • Power Supply
    9V 600mA adapter or 6 x AA batteries
  • Communication
    RS232, USB
  • Operating Temp
    -10°C to 40°C (14°F to 104°F)
  • Packing Information
    510 x 410 x 210 mm / 4 pcs / ctn
    G.W.: 8kg N.W.: 7kg
  • Options
    RS232 cable, USB cable, AC adapter,
    WIFI or Bluetooth wireless module
