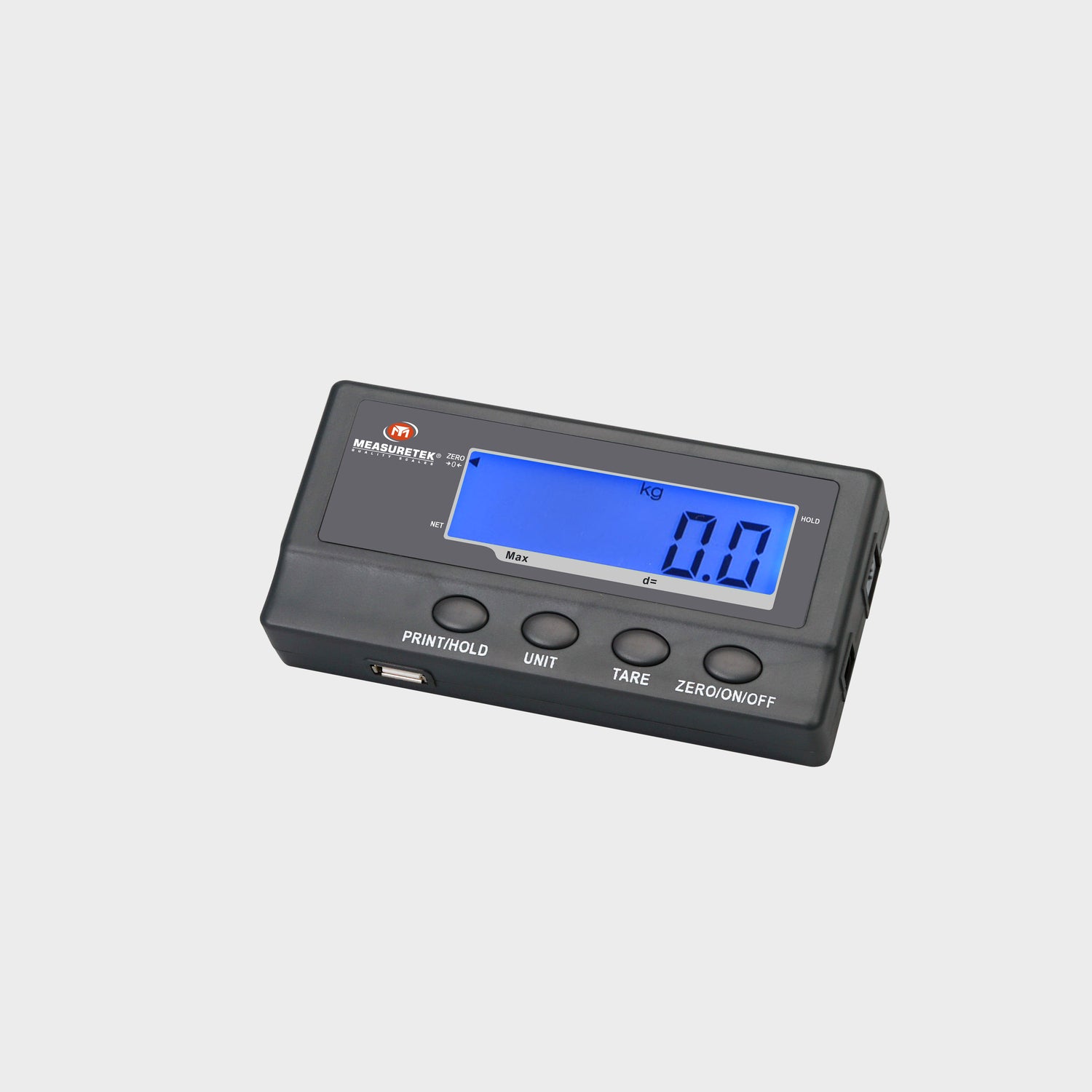

EHI-P Digital Scale Indicator / Affordable Weighing Controller / Backlit LCD Display

The EHI-P weighing indicator is a good choice if you are looking for an economic solution. It’s programmed with a display resolution up to 1/100,000, designed for use in a wide range of applications, such as shipping, livestock and industry. Extremely portable yet durable making it a classic solution for lots of users.



     Features



  • Rugged ABS housing with wall mounting holes
  • Easy-to-read LCD display with white backlight
  • Easy-to-use with four keys: ON/ZERO, TARE, UNIT, PRINT/HOLD
  • Equipped with USB interface for linking to a PC or printer
  • Functions: Weighing, Weight Unit Conversion, Tare, Hold, Auto-Zero, Auto-Off



     Dimensions



EHI-P Weighing Indicator Dimensions - 151 x 75.6 x 38.5 mm

Specifications
  • Loadcell Capability
    4 @ 350ohm
  • Excitation voltage
    5V DC
  • Wiring
    4 wires, 20cm pigtail cable
  • Units of Measure
    kg, lb, lb:oz
  • Display
    5 ½ digits, 0.58" (15mm) high,
    7 segments LCD display with white backlight
  • Power Supply
    9V 600mA adapter or 1 x 9V battery
  • Communication
    USB
  • Operating Temp
    0°C to 40°C (32°F to 104°F)
  • Packing Information
    570 x 470 x 540 mm / 24 pcs / ctn
    G.W.: 20 kg N.W.: 18 kg
  • Options
    USB cable, AC adapter
