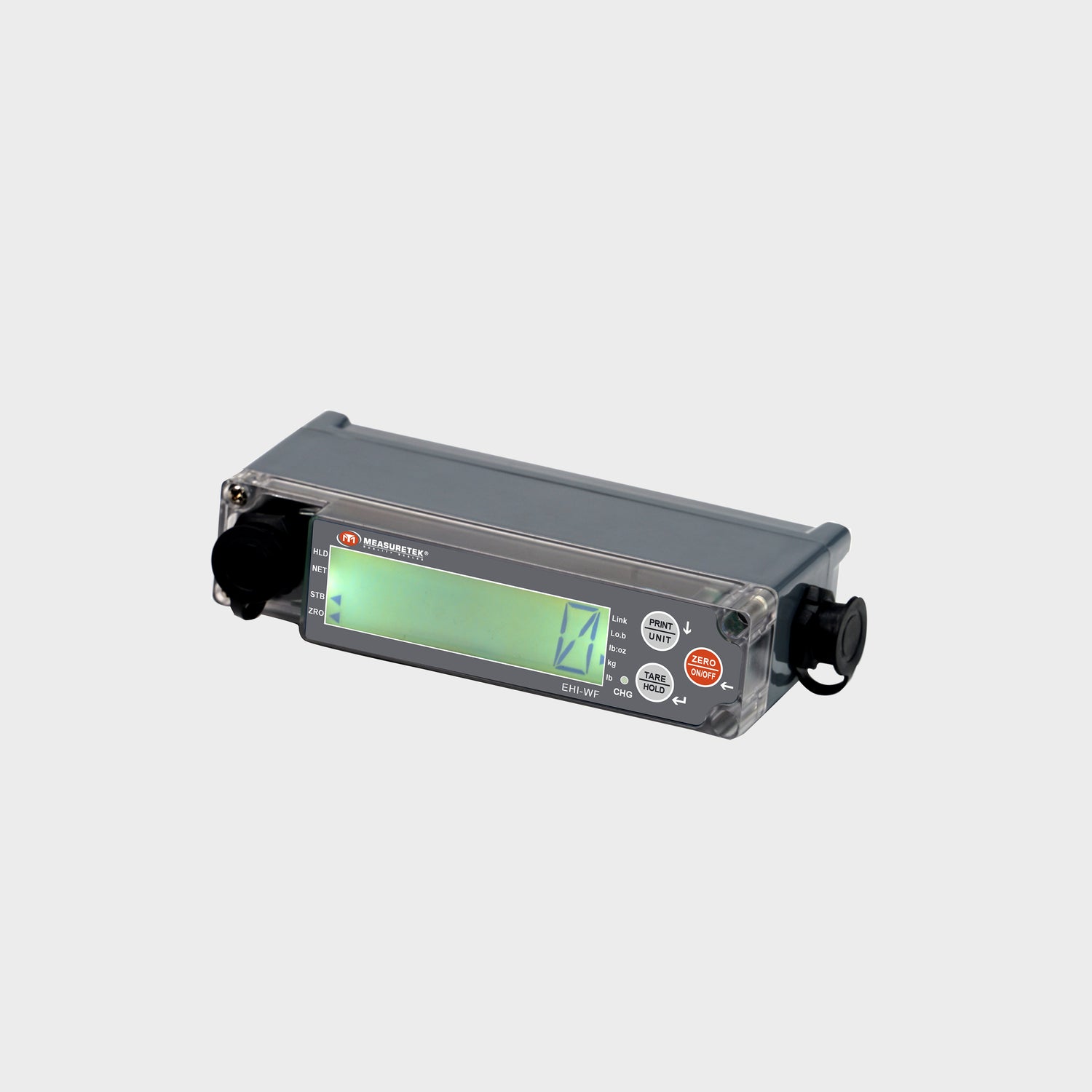

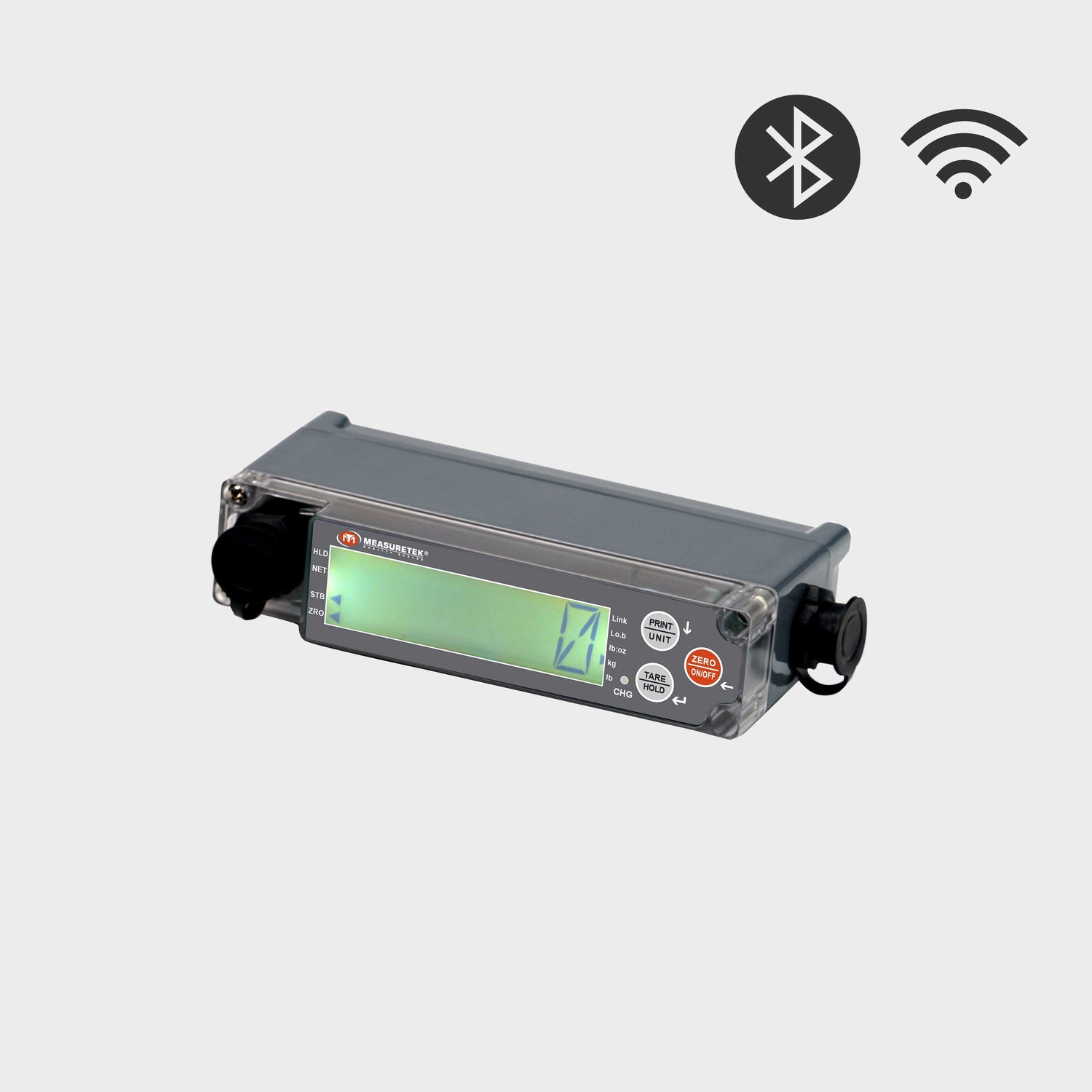

EHI-WL Wireless Scale Indicator - Bluetooth/WiFi / IP65 protection Portable Weighing Terminal


The EHI-WL wireless weighing indicator is designed for wireless weighing solution including Bluetooth and Wifi. Its compact size makes it portable and easy to be mounted in different scale platform frames. The indicator is designed at IP65 protection to withstand harsh environment. It can be powered by AC adapter, rechargeable battery or dry batteries.



     Features



  • Rugged ABS housing
  • With watertight load cell connector and power supply socket
  • Easy-to-read LCD display
  • Easy-to-use with three keys: ON/OFF/ZERO, PRINT/UNIT, TARE/HOLD
  • Available in WIFI and Bluetooth version, allows for single working or network working
  • Functions: Weighing, Weight Unit Conversion, Tare, Hold, Auto-Off



     Dimensions

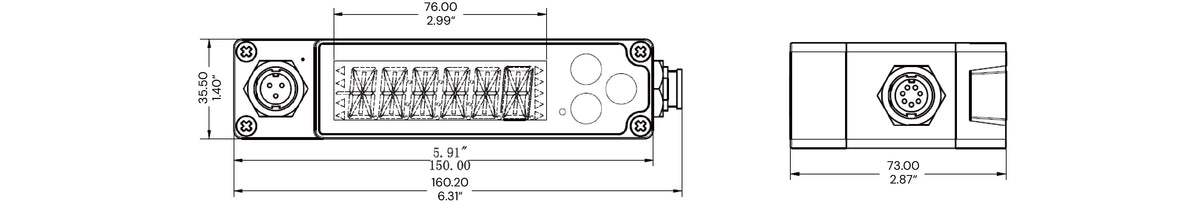

EHI-WL Wireless Scale Indicator Dimensions - 160.2 x 35.5 x 73 mm

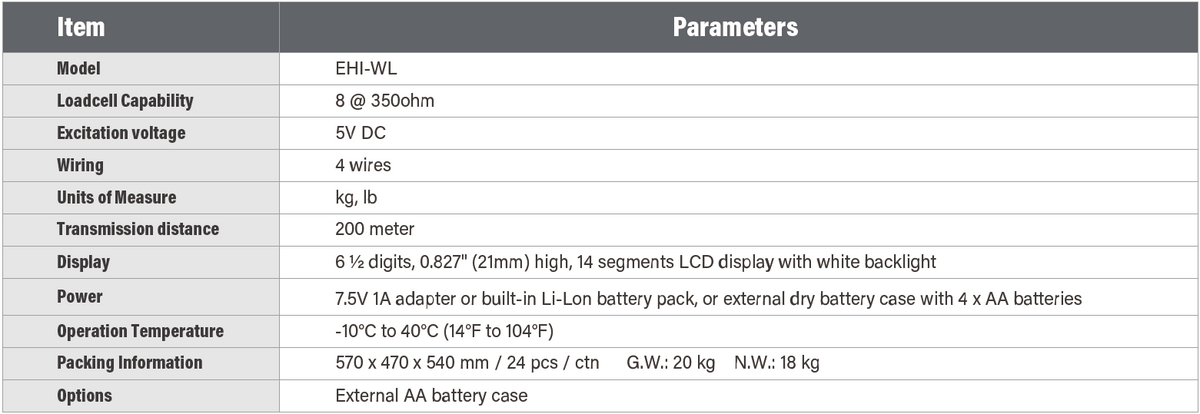

Specifications

  • Loadcell Capability
    8 @ 350ohm
  • Excitation voltage
    5V DC
  • Wiring
    4 wires
  • Units of Measure
    kg, lb
  • Transmission distance
    200 meter
  • Display
    6 ½ digits, 0.827" (21mm) high, 14 segments LCD display with white backlight
  • Power Supply
    7.5V 2A adapter or built-in Li-Lon battery pack, or external dry battery case with 4 x AA batteries
  • Operating Temp
    -10°C to 40°C (14°F to 104°F)
  • Packing Information
    570 x 470 x 540 mm / 24 pcs / ctn
    G.W.: 20 kg N.W.: 18 kg
  • Options
    External AA battery case
