EHI-WW IP68 Waterproof Scale Indicator / Stainless Steel Weighing Terminal for Industrial Use

The EHI-WW weighing indicator is housed in a robust food-grade stainless steel housing and designed with IP68 protection to withstand harsh treatment and corrosive environment. The indicator can be widely used with many scales in food service, food process, industrial, livestock, shipping and warehouse applications. Its built-in rechargeable battery allows it to be used in a flied without wall outlet.


     Features

  • Food grade 304 stainless steel housing with swivel wall mounting and desk mounting bracket
  • Optional RS232 interface for linking to PC or printer
  • Easy-to-use with four keys: OFF, ON/ZERO, SET, TARE
  • Functions: Weighing, Parts Counting, Check Weighing, Weight Unit Conversion, Tare, Hold, Auto-Off



     Dimensions

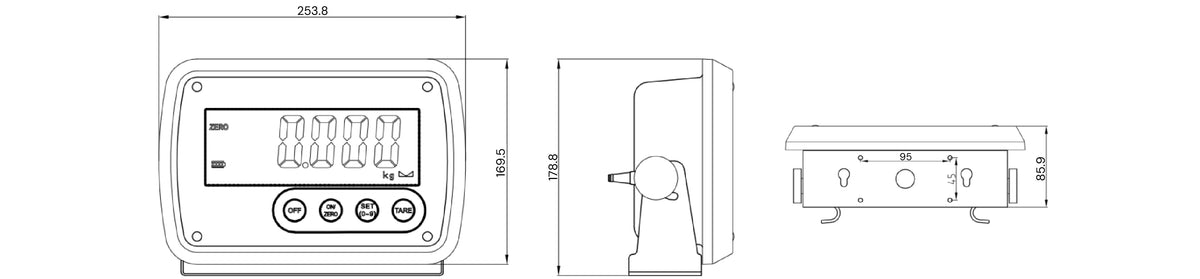

EHI-WW Waterproof Indicator Dimensions - 253.8 x 169.5 x 85.9 mm

Specifications
  • Loadcell Capability
    4 @ 350ohm
  • Excitation voltage
    5V DC
  • Wiring
    4 wires
  • Units of Measure
    kg, g , lb, lb:oz
  • Display
    5 ½ digits 1.5" (36mm) high 7 segments red LED display
  • Power Supply
    9V 1A adapter or 6V 4.5Ah lead-acid rechargeable battery
  • Operating Temp
    0°C to 40°C (32°F to 104°F)
  • Packing Information
    530 x 300 x 420 mm / 6 pcs / ctn
    G.W.: 17kg N.W.: 15kg
  • Options
    RS232 interface
