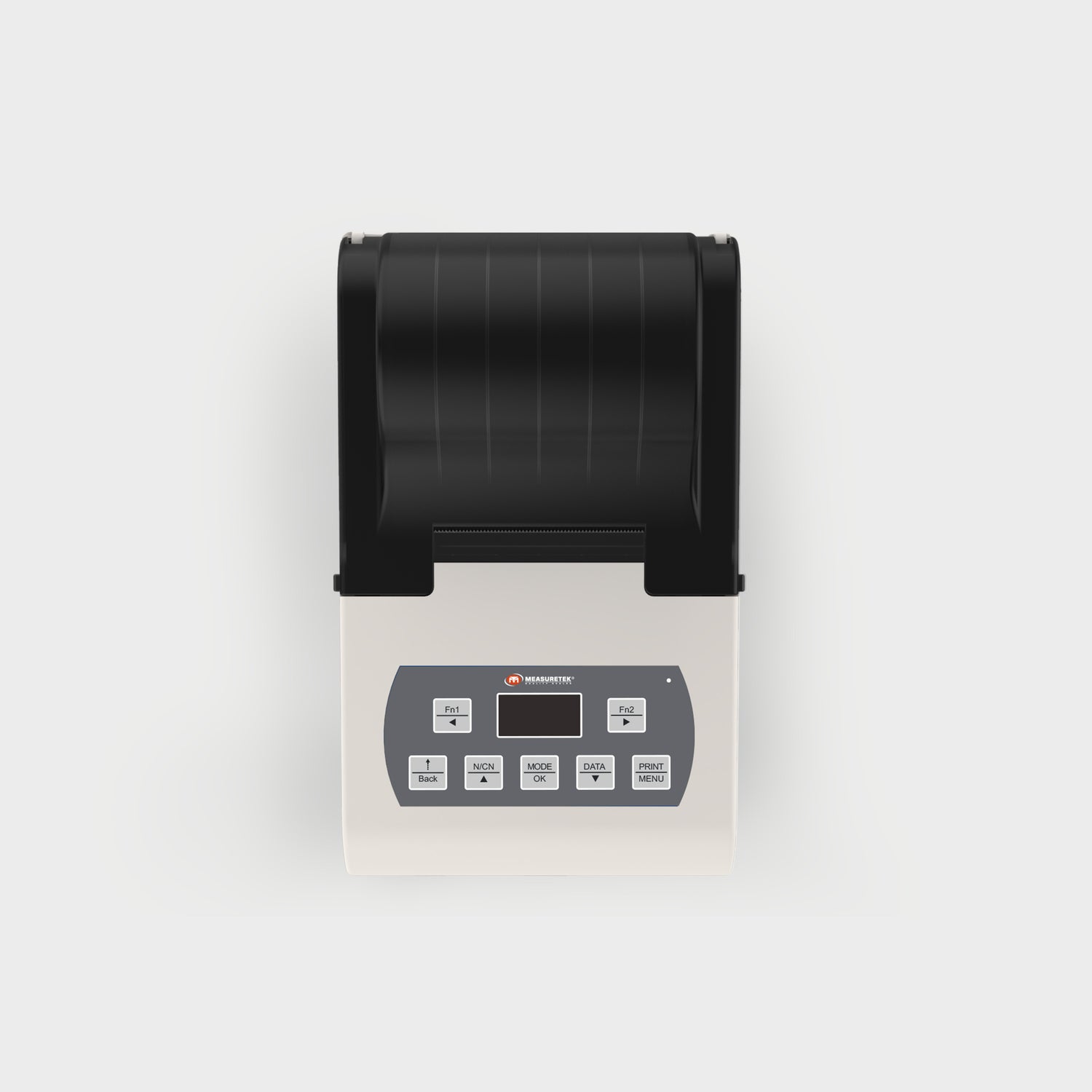

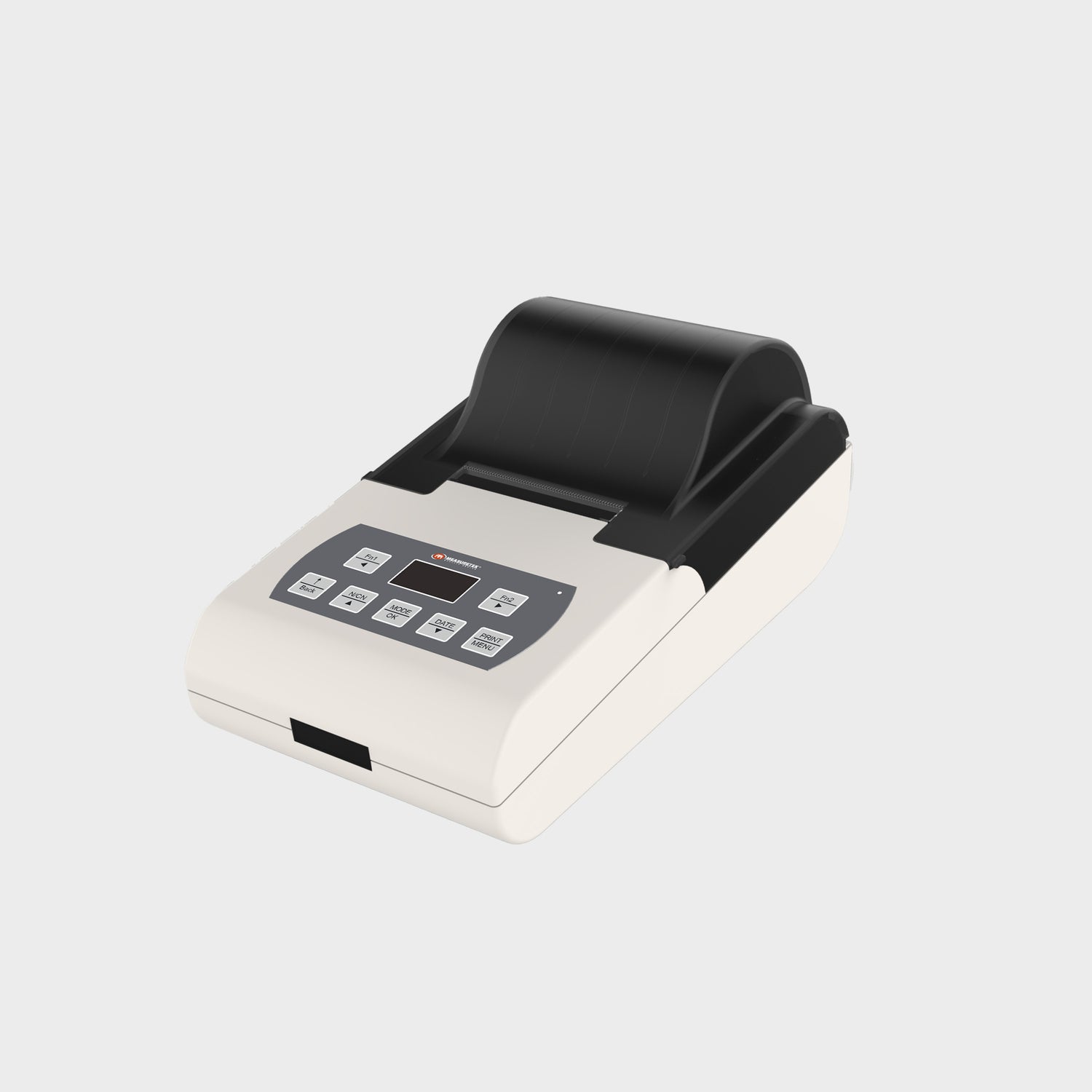

TX-110 Dot-Matrix Printer for Lab Data Recording & ISO/GLP Compliance / Micro Printer


The TX-110 is a high-speed dot-matrix printer designed for long-term data preservation, adhering to ISO/GLP standards. It features a bright OLED display and multiple operating modes, including direct weight printing, tare/net/gross values, total and average sample weights, individual sample weights for formulations, pipette calibration, customizable user-defined settings, comparator mode for specific weight ranges, and automatic timing for interval printing.


     Operating Modes

  • DIRECT. Prints out current weight value
  • TARE/NET/GROSS. Prints out these values separately
  • SUM. Prints out the total value of samples
  • AVERAGE. Prints out the average of samples
  • FORMULATION. Print out each sample’s weight independently when mixing samples
  • PIPETTE CALIBRATION. Calibrate capacity of pipette
  • USER DEFINED. Operator can set a multiplicative coefficient
  • COMPARATOR. Prints out weight value only when inside a defined range
  • AUTOMATIC TIMING. Prints out weight value at defined time intervals

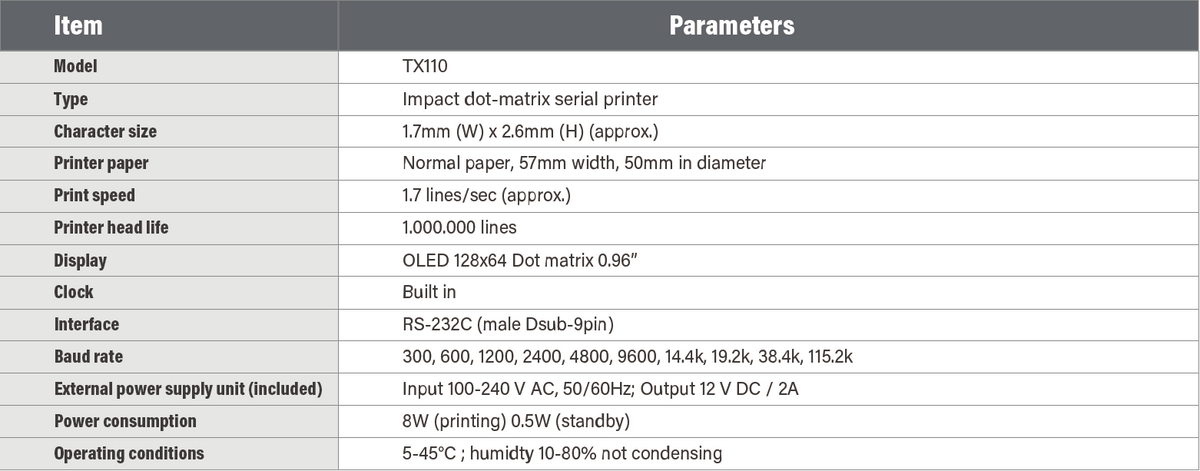

Specifications

  • Baud rate
    300, 600, 1200, 2400, 4800, 9600, 14.4k, 19.2k, 38.4k, 115.2k
  • Type
    Impact dot-matrix serial printer
  • Character size
    1.7mm (W) x 2.6mm (H) (approx.)
  • Printer paper
    Normal paper, 57mm width, 50mm in diameter
  • Print speed
    1.7 lines/sec (approx.)
  • Printer head life
    1.000.000 lines
  • Display
    OLED 128x64 Dot matrix 0.96”
  • Clock
    Built in
  • External power supply unit (included)
    Input 100-240 V AC, 50/60Hz; Output 12 V DC / 2A
  • Power consumption
    8W (printing) 0.5W (standby)
  • Operating conditions
    5-45°C ; humidty 10-80% not condensing
